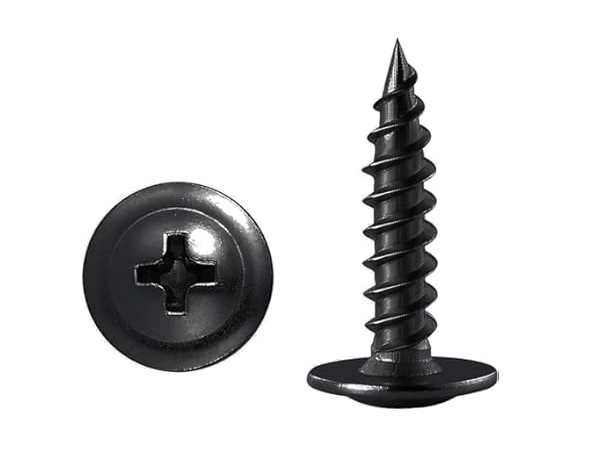

Deep Thread Black washer head wood screws
A wider head. A permanent seal.
Clamps flat, stays tight, seals out moisture.
The expert solution for thin materials.
01
Sinsun Washer Head Wood Screws | Expert-Designed for Maximum Clamp & Seal
Stop pull-through for good. Sinsun’s Washer Head Wood Screws deliver a wide, flat bearing surface for a permanent, weather-tight seal on metal, plastic, and wood. Engineered by fastening experts.
Get a Quick Qoute
Introduction:Solve the Pull-
Through Problem

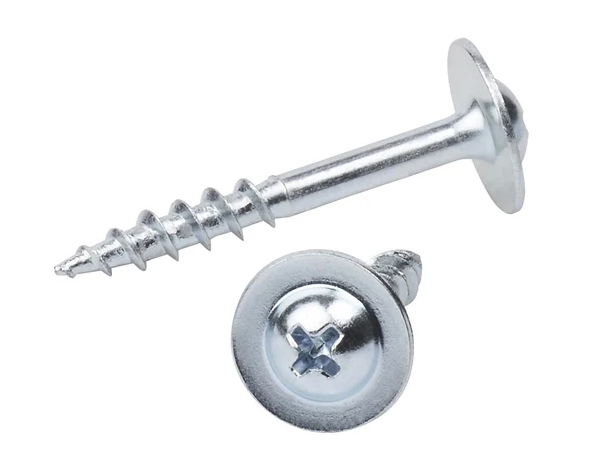

The Sinsun Washer Head Wood Screws feature a permanently integrated flat washer underneath the head, creating a wide, fixed bearing surface.
Soft materials such as composite decking, plywood, and plastics are protected from pull-through and surface damage with this design.
During installation, the washer doesn't get lost because of the one-piece construction, which saves time and improves reliability.
Available in corrosion-resistant coatings or stainless steel, they are ideal for decking, fencing, and sheet metal to wood applications.
Separating washers and screws provides a weaker, less professional connection.
| Your Pain Point | The Sinsun Solution |
| Head Sinks/Pulls Through Material | Integrated Wide Washer Head provides up to 3x the bearing surface of a standard pan head, capping the hole and distributing load. |
| Joint Loosens from Vibration | Full-Face Bite & High Torque Drive. The flat underside grips firmly; the Torx drive allows precise, high-torque tightening that stays put. |
| Water/Dust Infiltration Through Hole | Seals on Contact. The large, flat head compresses material evenly, creating an effective seal against elements. |
| Need for Separate Washer | All-in-One Efficiency. Eliminates the hassle of a loose washer. One-piece design speeds installation. |
| Stripped Heads During Installation | Torx Drive Compatibility. Ensures full torque transfer without cam-out, so you drive it right the first time. |
| Feature | Specification |
| Drive Type | Torx (T20, T25, T30) – Ensures maximum torque application. |
| Head Type | Integrated Flat Washer Head (Type U / Combination Head) |
| Material | High-Carbon Steel, Stainless Steel (A2/A4-70) |
| Finish | Zinc Plated (Yellow/Blue), Hot-Dip Galvanized, Plain Stainless |
| Sizes (Diameter x Length) | #8 x 1/2" to #14 x 4" (Custom lengths available) |
| Point | Sharp Type 17 (Auger) Point for easy wood penetration; self-drilling point options for metal. |
1. Designed to Stop Pull-Through
The flat head is built in and has a wide diameter, giving it a bearing surface that is up to 300% bigger than a standard pan head. This evenly spreads the clamping force, capping the hole for the fastener and keeping the screw head from sinking into or tearing through soft, thin, or brittle materials like plastic, sheet metal, or plywood.
2. Make an effective mechanical seal
To make an effective mechanical seal, material is pushed evenly against the substrate by the flat bottom and full face. This keeps dust and moisture out, creating an effective weatherproof barrier at the penetration point. For outdoor fixtures, roofing, siding, and enclosures, it is of utmost importance.
3. Fastening with torque and no cam-out
This screw works with a Torx (Star) drive to apply the most torque without the driver slipping. This ensures that you always achieve the right clamp load for a vibration-tolerant joint, which means no stripped heads or failed installations.
4. All-in-one design that works well
The permanently fused washer-head combination eliminates the cost and trouble associated with loose washers. This makes inventory easier to manage, speeds up installation by cutting down on handling steps by about 20%. It also ensures that the washer will always work because it can't be lost, left out, or installed incorrectly.
5. Durability tested by experts in tough environments
These screws come in high-carbon steel with rust-resistant plating or A2/A4 stainless steel. They are designed to last a long time. They maintain their shear and tensile strength in a wide range of conditions, from treated wood to coastal areas. They last longer than regular fasteners when corrosion is the primary cause of failure.
Contact us
| Feature | Washer Head Wood Screw | Truss Head Wood Screw |
| Design & Profile | Features a standard screw head (flat, bugle, or hex) with a permanently attached, integrated flat washer. The washer is a distinct, separate-looking component fused to the head. | Has a single-piece, low-profile, dome-shaped head with a diameter significantly larger than the screw shank. The head itself is the wide bearing surface. |
| Primary Function | Designed to increase the bearing surface and provide a secure, fixed washer that won't get lost. Ideal for creating a strong, vibration-resistant connection and preventing "pull-through." | Designed to provide a wide bearing surface with a very low vertical profile. Ideal for applications where a standard washer head would be too tall or where a sleek, low-profile finish is needed over a wide area. |
| Load Distribution | Excellent. The integrated washer spreads clamping force effectively, protecting soft or brittle materials (e.g., composite decking, fiberglass, thin plywood) from damage. | Very Good. The wide head base distributes force over a large area, preventing the head from sinking into soft materials. |
| Material Compatibility | The washer surface is optimized for gripping and not marring the fastened material. The washer's edge can bite slightly into softer materials for anti-rotation. | The smooth, rounded underside of the head is less likely to mar delicate surfaces. Provides a clean, finished look on visible applications. |
Key Selection Guideline:
Choose a Washer Head screw when you need the utilitarian function of a washer—maximum anti-pull-through protection, a sturdy connection for structural elements, or when fastening to very soft composites.
Choose a Truss Head screw when you need a low-profile, broad-head fastener for thin materials, in tight clearance situations, or where a smooth, domed head is preferred for aesthetic or functional reasons (e.g., reducing snagging).
Discover the key strengths of Sinsun Washer Head Wood Screws. Make informed choices for your projects with clear, practical insights.
-

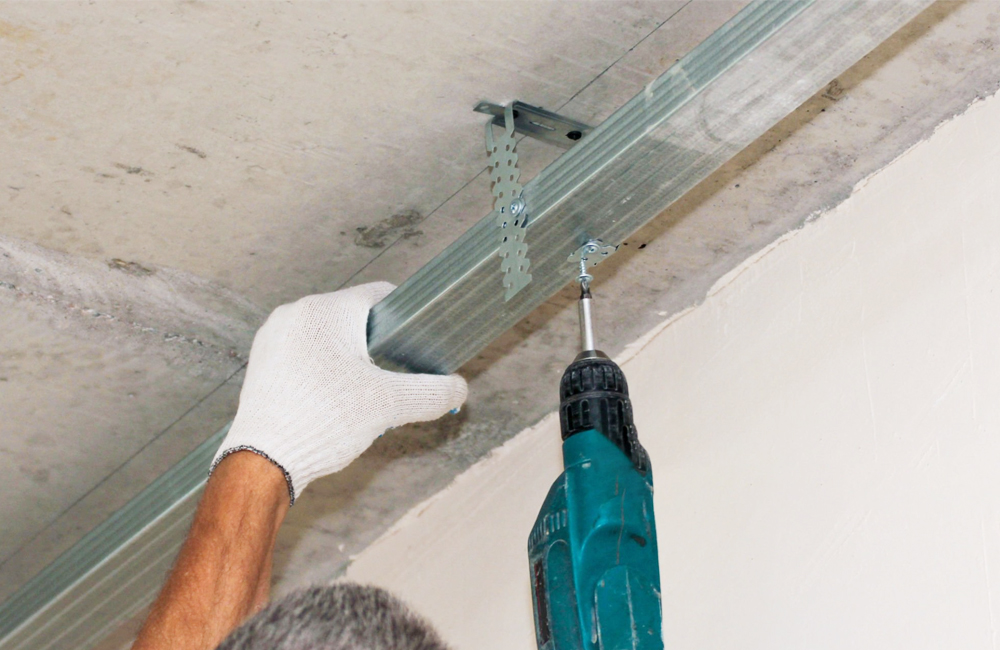

Metal Roofing & Siding Installation
- Corrugated or standing-seam metal panels (usually 24–29 gauge) are attached with this screw to wooden purlins or framing.
- In addition to covering the panel's rib, the wide, flat head pushes down on the neoprene washer underneath (which is usually already attached) to create a watertight seal.
- It prevents the thin metal from ripping around the fastener hole when the temperature changes and causes the metal to expand and contracts.
- A #12 or #14 screw that is at least 1.5 inches long is the most common type of screw for this job.
-

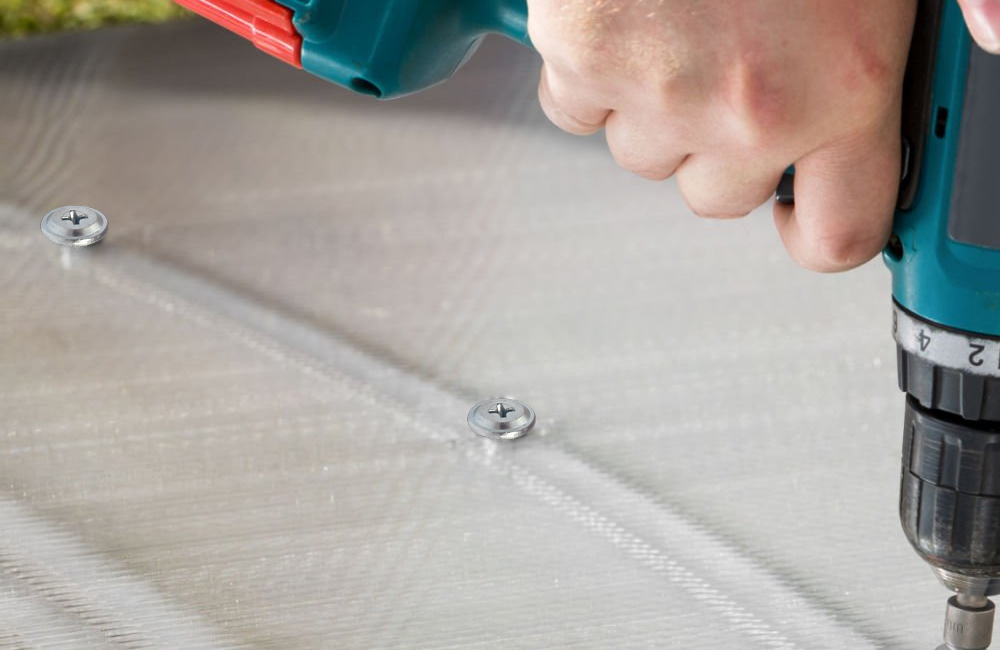

Fastening Plastic or Composite Panels
- Perfect for holding down PVC trim, polycarbonate sheets, fiberglass panels, or composite decking ledger boards.
- The large bearing surface evenly distributes the clamping force to keep these brittle or semi-flexible materials from cracking, splitting, or dimpled.
- For instance, when you attach a 1/4" thick polycarbonate greenhouse panel to a wooden frame, a #10 x 1-1/4" washer head screw applies secure pressure on the panel without creating a stress point that could break it.
- The screw's seal also prevents moisture from building up in the fastener hole.
-

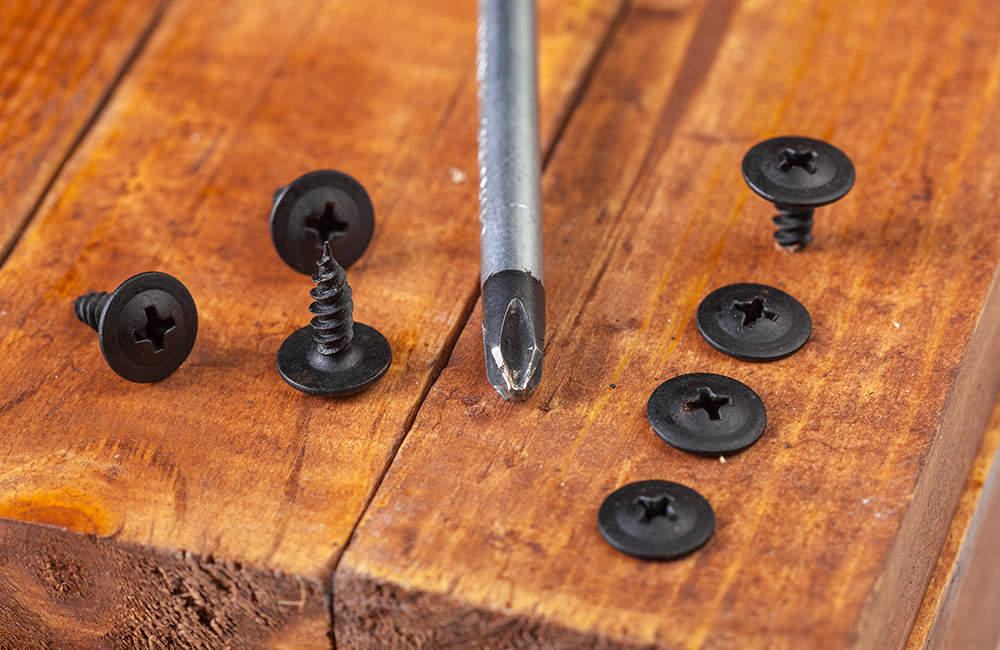

Building Outdoor Structures (Decks, Pergolas, Fences)
- Used to connect metal joist hangers, post bases, ledger boards, and fence brackets to wood treated with pressure.
- The built-in head eliminates the need for a separate washer, saves time, and it makes a strong connection point that doesn't sink and maintains its clamping force.
- When you attach a galvanized fence bracket to a 4x4 post, the wide footprint of the screw head prevents it from sinking into the wood grain.
- This keeps the bracket tight against the post even when the wind pushes against the fence panel.
-

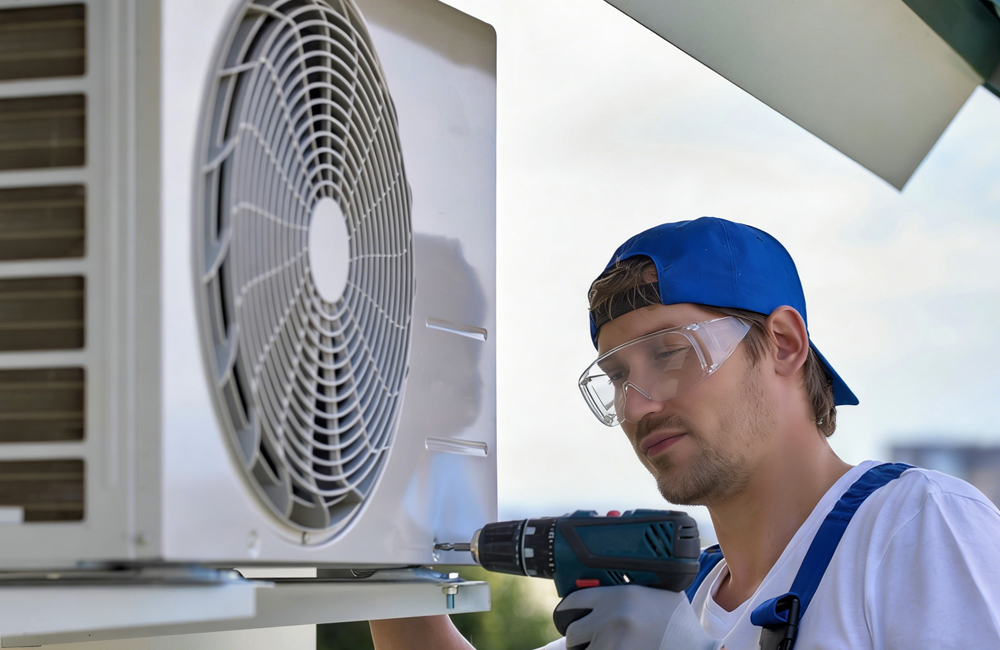

Mounting HVAC Units & Electrical Equipmen
- Necessary for attaching metal mounting feet for air conditioning condensers, electrical disconnect boxes, or conduit straps to wooden pads or framing.
- The sealing head and high-torque drive work together to ensure that the installation is vibration-free and rattle-free, and that water can't get in at the attachment point.
- Four #12 x 3" washer head screws make a strong, code-compliant mount for a 150-lb condenser unit that won't come loose from the unit's operational vibrations over time.
Customer Feedback
"As the owner of Urban Outdoor Living, I design and design custom outdoor kitchens. Looks are just as significant as durability. We used black washer head screws from Sinsun to attach composite fascia boards and appliance housings made of stainless steel. The built-in black washer gives the product a clean, finished look that complements modern designs, and it completely stops the "mushrooming" effect on the composite material. No more unsightly fastener heads.
"The City Parks Department uses thousands of Sinsun's 1-inch zinc-plated washer head screws to repair our public benches and picnic tables. The 1-inch length is suitable for holding 2x4 and 5/4 decking boards to frames. The built-in washer prevents the screw head from pulling through the wood, which was a common problem. Since we standardized on this screw, our maintenance crews have seen a decrease in calls for repairs and re-tightening."
Expert FAQ
When is a Washer Head necessary instead of a standard wood screw?
A: Use it when the material you are fastening to or through is thin, soft, or prone to cracking (sheet metal, plastic, plywood). It’s critical for creating a seal or when the connection will bear significant lateral or pull-out force.
Do I still need to use a separate washer?
A: No. The design integrates the washer function. Adding a separate washer is unnecessary and can compromise performance by altering the clamping dynamics.
Can I use it with an impact driver?
A: Yes. In fact, it’s recommended. The Torx drive is engineered for high-torque impact driving, allowing you to achieve the proper clamp force quickly without stripping the head.
What is the sealing capability?
A: The head creates a compression seal. For a true watertight seal on roofing, use our model with a pre-attached EPDM rubber washer. The standard version provides an excellent weather-resistant barrier for most applications.
Is it suitable for pressure-treated wood?
A: Yes, but you must select the correct corrosion-resistant finish. For ACQ or other corrosive treated lumber, use our hot-dip galvanized or stainless-steel versions to prevent rapid rust and failure.
How do I choose the right length?
A: The screw must be long enough to penetrate the main holding member (e.g., the wood frame) by at least 1 inch. Formula: Thickness of top material + 1 inch = Minimum screw length.
What’s the difference between a Washer Head and a Trim Head screw?
A: A Trim Head has a very small head to hide. A Washer Head has a large head to function. They solve opposite problems. Use Washer Head for strength and sealing; use Trim Head for invisible fastening in finish carpentry.
Do you offer self-drilling versions for metal?
A: Yes. For fastening thicker metal (up to 14 gauge) directly to wood without pre-drilling, ask about our SD Washer Head screws with a self-drilling point, which can reduce installation time by up to 50%.
Why Sinsun is the Right Choice
We don't just sell screws; we come up with ways to solve problems. Our washer head profile is carefully designed to provide the highest performance by balancing the diameter, thickness, and finish under the head. Every batch is tested for clamp load retention, corrosion resistance, and drive integrity before shipping. You can rely on Sinsun fasteners to do the job right the first time and for a long time.
Are you ready to lock it up for good?
→ Check out the full specifications and sizes.
→ Download the application guide (PDF).
→ Get in touch with our engineering team.
