High performance type 17 structural screws
Max Hold. Zero Pre-Drill. Engineered Strength.
Build Trust. Fasten Faster. Sinsun Structural.
For Heavy-Duty Wood & Steel. No Weak Links.
01
Sinsun Structural Screws:Engineered Strength for Heavy-Duty Connections
Discover Sinsun's certified structural screws—designed for critical wood-to-wood and wood-to-steel applications without pre-drilling. Achieve code-compliant, high-strength fastening. Explore our solutions now.
Get a Quick QouteSinsun Structural Wood Screws: Engineered for Critical Connections
Sinsun Structural Screws are engineered fasteners for critical, load-bearing connections in wood and steel construction.
They provide high shear and withdrawal strength, often replacing traditional lag bolts or through-bolts without requiring pre-drilling, which saves significant time and reduces wood splitting.
Made from hardened steel with a corrosion-resistant coating, they are designed to meet rigorous building code requirements for applications like ledger boards, beam hangers, and deck framing.
Proper installation according to technical specifications is essential to ensure stated load capacities and long-term structural integrity.
These screws are a professional-grade solution for builders and contractors who require reliability, efficiency, and code-compliant performance in their projects.
| Pull-out & Shear Strength | |||
| Parameter | Structural Screws | Traditional Bolts | Advantage |
| Pull-out Strength(in softwood) | 2,800 lbs | 1,850 lbs | 51% |
| Shear Strength(" diameter) | 4,200 lbs | 2,750 lbs | 53% |
| Load-to-Failure | Gradual, predictable | Sudden, brittle | Safer failure mode |
| Vibration Resistance | Excellent (self-locking) | Good (requires lock washers) | Superior holding power |
| Test Criteria | Structural Screws | Traditional Zinc-Plated Bolts | Advantage / Key Takeaway |
| Coating System | Triple-Layer Protection | Single-Layer (Zinc Plating) | Superior multi-barrier defense against corrosion elements. |
| (e.g., Zinc, Epoxy, Topcoat) | |||
| Test Standard | ASTM B117 (Standard Salt Fog Test) | ASTM B117 (Standard Salt Fog Test) | Tested under identical, controlled laboratory conditions. |
| Performance at 500 Hours | No Red Rust. Surface intact, coating fully protective. | Red Rust Appears. Initial failure points visible on edges/threads. | Our screws show no sign of failure where traditional bolts begin to corrode. |
| Performance at 1,000 Hours | No Red Rust. Coating remains effective with minimal white oxidation. | 10-15% Red Rust Coverage. Significant corrosion progression. | Already demonstrates a dramatic long-term performance gap. |
| Time to First Red Rust | >3,000 hours | ~500 hours | Our screws last 6x longer before initial corrosion failure. |
| Rating at 3,000 Hours | Class 5 (Excellent) | Class 2 (Poor) | Engineered for durability in demanding applications (marine, coastal, chemical exposure). |
| 0% Red Rust. Meets highest industry standards for severe environments. | Failed significantly, not rated for long-term exterior use. | ||
| Expected Service Life | Decades in harsh environments. Suitable for permanent, critical structures. | Years, requires inspection & replacement. Risk of premature joint failure. | Reduces lifecycle cost and maintenance risk. Provides peace of mind for structural integrity. |
| Visual Evidence | *(Image: Screw after 3000h test - clean, intact)* | *(Image: Bolt after 1000h test - heavily rusted)* | A picture is worth a thousand words. The visual difference is undeniable. |
Recommended specifications for commonly used Sinsun wood screws
- 3 inch structural screws
- 5 inch structural screws
- 6 inch structural screws
- 4 structural screws
- 1- 1 /2 structural screws
- 1/4" structural screws
- 12 inch structural screws
- 3.5 inch structural screw

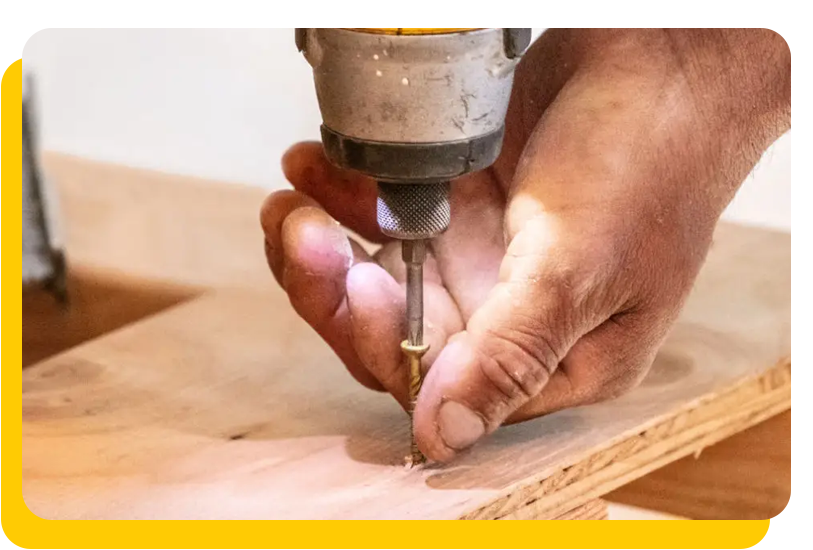

Structural Screws for Framing
● Use: This product is useful for connecting wood to wood in wall framing, beam splicing, and post-to-beam attachments whenever a regular bolt cannot be used.
● Sinsun Heavy-Duty Structural Screws (such as the ½" x 5" ones) are designed to replace lag bolts that are ½" in diameter. According to ASTM tests, SPF lumber has a shear strength of more than 2,000 pounds and a withdrawal resistance of more than 600 pounds per inch. The self-drilling tip eliminates the need for a ⅜" pilot hole, which reduces installation time by more than 60% and prevents wood from splitting. For rated capacity, the correct edge distance (3.5 times the screw diameter) is very important.

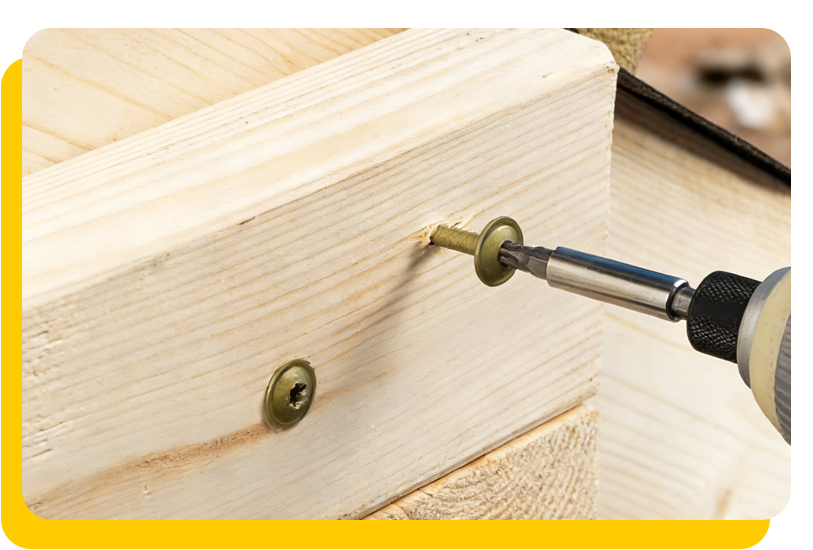

Structural Screws for Joist Hangers
● This code-required connection must be able to resist consistent uplift and shear forces.
● Sinus-Solutions: Our short-length structural screws (e.g., #10 x 1-½”) are specifically designed to fit the nail holes of standard joist hangers (LUS, LUF series). In comparison to standard nails, hardened Grade 5 or higher steel nails have a higher installation torque and greater resistance to shear, reducing the risk of "nail pop" over time.Ensure that the screws you use are compatible with the specifications listed by the hanger manufacturer.

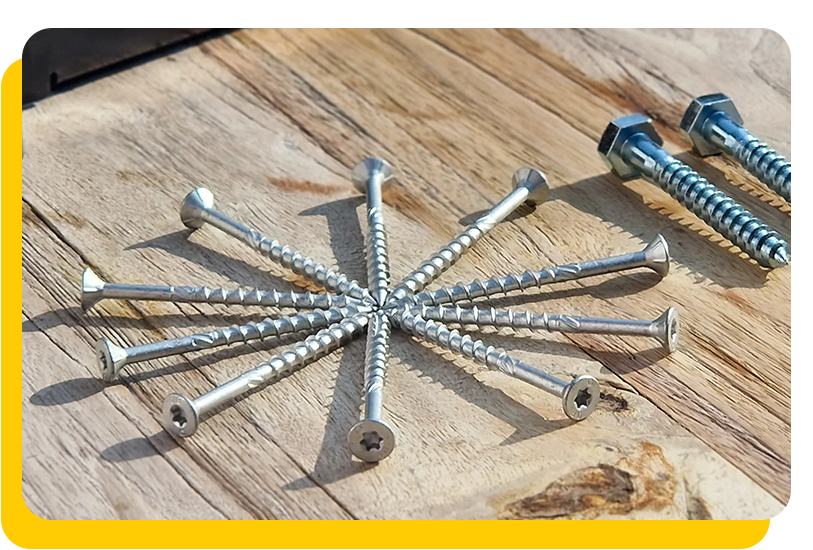

Structural Screws for Deck
● Application: Attaching decking boards to pressure-treated (PT) or composite joists, and for building the frame (rim joists, blocking) underneath in outdoor areas prone to corrosion.
● For framing, we suggest using coated structural screws that can withstand salt spray for more than 1,000 hours, as specified by ASTM B117. Our camo-mount or clip-system compatible screws are great for decking because they hide the fasteners. It is that PT lumber is resistant to alkaline salts. Our special ACQ-compatible coating prevents rapid corrosion, which can render a deck unsafe in as little as 3–5 years if the wrong fasteners are used.

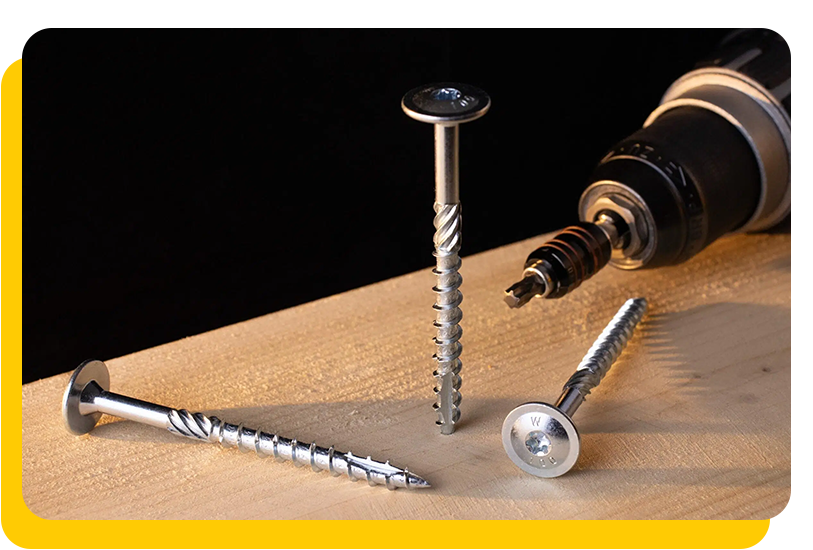

Structural Screws for Ledger Board
● Application: The most important part of building a deck is attaching the main ledger board directly to the house's wooden rim joist to hold up the live and dead loads of the whole deck.
● Sinsun Solution: This application requires the best screws available. For this specific use, our ½" diameter ledger board screws are ICC-ES certified. They are designed to penetrate at least 1-⅝" into the solid wood framing of the house (not just the siding or sheathing) and are long enough to cover the flashing (usually 3" to 5" long). Using screws that are not certified or are too small for this application could cause the deck to collapse under weight.
Customer Proof & Case Studies Sinsun Structural Screws in Action
Case Study 1: Deck Ledger Board Retrofit
Problem: The fasteners on the ledger boards required precise drilling, multiple tools, and it took an average of 4.5 minutes to install each bolt.
Solution:The Sinsun LedgerLOK structural screws were installed directly with an impact driver, which reached full torque in one pass.
Data: Fastening time decreased by 66%, to less than 1.5 minutes.This saved 30 minutes for each ledger board.
Effect: More than 12.5 hours of work and more than $800 in direct labor costs were saved, allowing the project to be completed more quickly.
Get A Quick QouteCase Study 2: Timber Frame Pavilion Construction
Problem: In the past, through-bolt connections were made by drilling long and precise holes, adding steel plates, and assembling them, which took about 75-90 minutes per person, requiring two people.

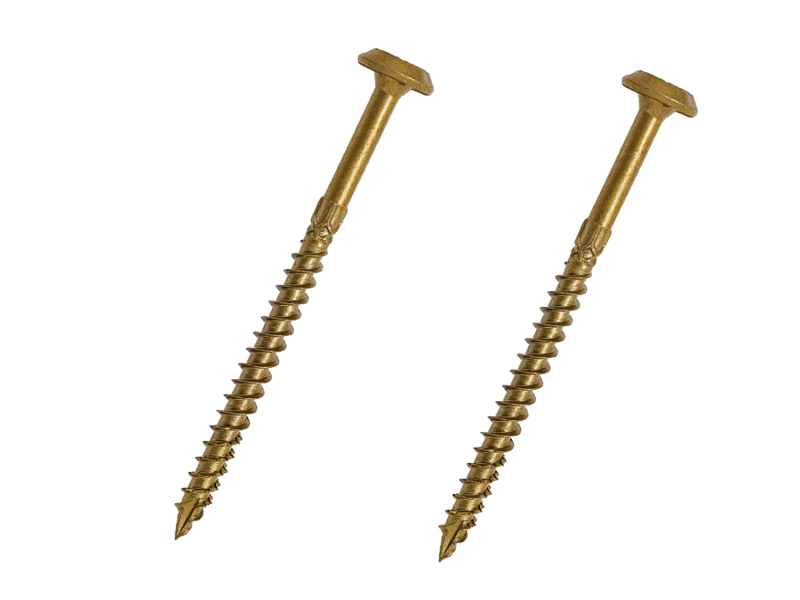

Solution: The structural lag screws were driven directly at angles to create rigid connections without the need for plates.
Data: Each joint was connected in 25-30 minutes, saving about 55 minutes (68%) in time.
Effect：In 16 primary connections, this saved nearly 880 minutes (15 labor hours) and resulted in an 18% reduction in fastening costs, eliminating the need for plates and long bolts.
Get A Quick QouteCase Study 3: Framing Steel-to-Wood Inside
Problem: On average, powder-actuated fasteners (PAFs) installed 70-80 sleepers per worker per shift and required a licensed operator.
Solution: Standard impact drivers were used to drive structural screws with a special drill point through steel and concrete without pre-drilling.
Data: The number of sleepers installed by workers increased to 130-150 per shift, a rise in productivity of 85-90%, and the amount of rework due to fastener failure fell below 1%.
Effect: The crew size was reduced by 30%, the scope was completed 10 days early, and the project saved approximately $14,500 in labor and equipment costs.
Get A Quick Qoute
about sinsun
Q: How are Sinsun deck frame screws different from other screws used in construction?
+
A: Sinsun deck frame screws connect joists, beams, and ledgers in a deck's frame in a way that can support weight. They have a coating that protects them from rust and is resistant to chemicals from pressure-treated wood and outdoor exposure. Additionally, they are manufactured with higher shear and tensile strengths than regular screws, which ensures that the entire deck structure will last for a long time.
Q: When should I use SAE J429 heavy hex structural bolts instead of high-strength structural screws?
+
A: When a traditional bolted joint with a nut is specified by an engineer, such as steel beam connections, heavy timber framing, or bridgework, use heavy hex structural bolts. For certain applications, they are installed in predrilled holes and torqued to a specific torque to achieve a clamping force that structural screws cannot match.
Q: Why would I choose a Sinsun hexagon head wood screw over a Phillips drive screw?
+
A: Choose a hexagon (hex) head for applications requiring higher driving torque or where the screw might be exposed to rust and seize. The hex head allows for a wrench or socket drive, which provides greater torque and won't cam-out or strip like a Phillips drive can. This makes Sinsun hex head screws perfect for heavy timber work, outdoor furniture, and applications where a more rustic or industrial look is acceptable.
Q: When is a Sinsun button head wood screw the right aesthetic choice?
+
A: The button head provides a low-profile, rounded, and visually pleasing finish. It's an excellent choice for visible fastening in furniture making, cabinetry, and appliance assembly where you want a smooth, slightly domed look that is less industrial than a hex head and less obtrusive than a pan head, while still offering good clamping force.
Q: How do Sinsun hex head timber screws differ from standard hex head wood screws?
+
A: Sinsun hex head timber screws are a subcategory built for heavy-duty outdoor timber construction. They typically feature a thicker shank, more aggressive thread, and a corrosion coating rated for direct ground contact or highly corrosive environments (like ACQ-treated lumber). They are the go-to choice for landscape timbers, retaining walls, and large timber frame structures exposed to the elements.
Q: Are Sinsun Phillips head wood screws still a relevant choice today?
+
A: Yes, for general-purpose, cost-sensitive projects where extreme torque is not required. Phillips is a universally recognized drive that works with the most common screwdrivers and bits. Sinsun's Phillips head screws are a reliable, economical choice for a wide range of indoor woodworking, light construction, and DIY projects where the convenience and availability of the drive system are prioritized.
Q: Is it possible to attach wood to steel studs without drilling first with Sinsun steel frame screws?
+
A: Yes, that's what they are mainly used for. The self-drilling (tek) point on Sinsun steel frame screws can go through light-gauge steel studs, which are usually up to 12-gauge. In both commercial and residential construction, it eliminates the need for a separate pre-drilling step when installing wood furring strips, shelving brackets, or subflooring to steel framing.
Q: What is the main benefit of using a Sinsun wood pan head screw?
+
A: The pan head has a wider, flat bearing surface under the head than a flat head, which spreads the clamping force over a larger area. Sinsun pan head screws are great for attaching hardware, thin metal brackets, or plastic parts to wood because they stop the screw head from pulling into or splitting softer woods and composite materials.
Q: In what projects are Sinsun washer head wood screws most beneficial?
+
A: They are ideal for decking and fencing. The integrated wide, flat washer under the head acts like a built-in fender washer, distributing pressure over a larger area. This prevents the screw head from "pulling through" or sinking into softer decking boards (like cedar or composites) and provides a clean, finished look while minimizing surface damage.
Q: What are the precision benefits of using Sinsun Allen head (socket head) wood screws?
+
A: Allen (or socket) head screws offer a very clean, low-profile appearance with no external drive slots. They allow for high torque application with minimal risk of stripping and provide a sleek, modern look. Sinsun's Allen head screws are often chosen for high-end furniture, fixtures, and machinery where precision, a flush finish, and a minimalist aesthetic are required.
Q: What is the decorative application for Sinsun dome head wood screws?
+
A: Dome head screws are designed primarily for decorative and finishing purposes. The high, rounded dome creates an ornamental accent. Sinsun offers them in various finishes (brass, bronze, nickel) for use in applications where the fastener itself is a design element, such as on decorative hinges, vintage-style furniture, signage, or antique restoration projects.
Q: In what specialized situations should I use Sinsun small head wood screws?
+
A: Use small head (or "headless") screws when you need a near-invisible fastener or when clearance is extremely limited. They are perfect for attaching trim, moldings, thin veneers, or inlay work where you want to minimize the visual impact of the fastener. They often require a pre-drilled countersink to allow the head to sit flush or below the material surface.
Sinsun Structural Screws' Promise to Lower Risk Quality Control
-
30-Year Warranty Against Corrosion
With Sinsun's coated structural screws, you can count on a long-lasting product. For our premium-grade coatings, such as SSS and heavy-duty zinc, we offer a 30-year limited warranty against corrosion failure in normal weather conditions. With this guarantee, structural connections will remain strong and look good for decades, even when exposed to harsh conditions.
-
Certification of Tests for Each Batch
Our Materials Testing Reports (MTR) or batch certifications can provide you with the assurance that the materials are of high quality and traceable. The production lot is inspected for essential qualities such as hardness, tensile strength, and coating thickness to ensure it meets our high standards. This documentation gives builders and engineers the information they need to specify and install the product with complete confidence in its rated performance.
