Flat head square head
wood screws
Drive harder. Tighten securely. Never strip again.
Superior bit engagement. Maximum torque transfer.
The expert's choice for stubborn, heavy-duty jobs.
01
Sinsun Square Head Wood Screws: Maximum Torque, Zero Stripping
End stripped screw heads. Sinsun Square Head screws deliver superior torque transfer and cam-out resistance for heavy-duty wood construction. Expert-engineered reliability.
Get a Quick Qoute
Introduction: Solve the Stripping & Cam-Out Problem

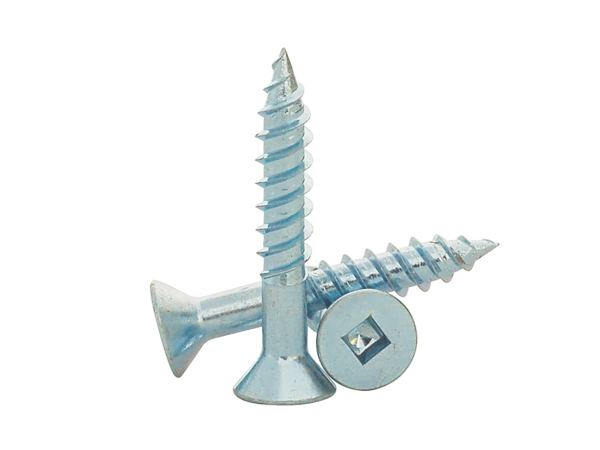

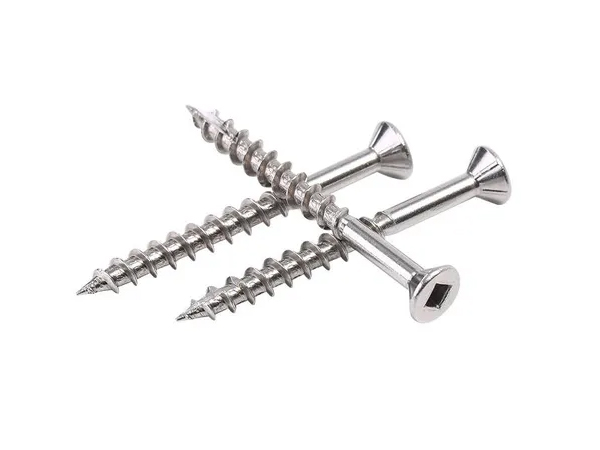

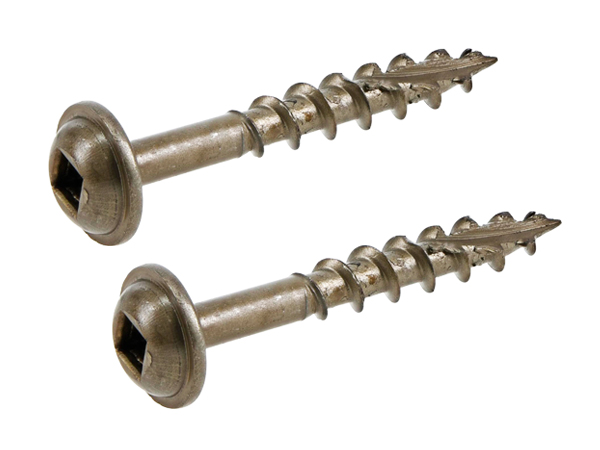

The Sinsun Square Head Wood Screw, commonly known as a Robertson screw, features a square recess drive designed for superior torque transfer and minimal cam-out. The slotted or Phillips drive provides a better grip between the driver bit and the screw head than traditional slotted or Phillips drives. This allows for higher applied torque with a significantly reduced risk of stripping. In particular, it is an efficient and reliable choice for high-volume or heavy-duty driving.
These screws are ideal for structural woodworking, deck construction, framing, and applications where screws may need to be installed or removed multiple times. The square recess maintains its integrity through repeated use. Sinsun offers them in a range of materials, including carbon steel with various corrosion-resistant coatings and stainless steel, to suit both indoor and demanding outdoor projects.
| Your Pain Point | The Sinsun Solution |
| Screw Head Strips During Installation/Removal | Square Recess Design provides positive bit lock-up, drastically reducing cam-out and stripping. |
| Insufficient Torque for Tightening Heavy Joints | Superior Torque Transfer allows you to apply up to 30% more driving force compared to Phillips #2, securing joints fully. |
| Difficulty Finding Compatible Drivers | Universal Compatibility. Uses common, inexpensive square drive (Robertson) bits (SQ1, SQ2, SQ3) found in any pro toolbox. |
| Rust & Corrosion in Outdoor Projects | Expert-Selected Coatings. Available in corrosion-resistant zinc plate or stainless steel for decks, fences, and permanent outdoor structures. |
| Weak Point in High-Stress Joints | High-Grade Steel Construction. Manufactured from graded steel for superior shear and tensile strength where it matters most. |
| Feature | Specification |
| Drive Type | Square Recess (Robertson): SQ1 (#6-#8), SQ2 (#9-#12), SQ3 (#14+) |
| Head Style | Flat Head (Countersunk) or Bugle Head for drywall |
| Material | Grade 2 or Grade 5 Steel, 304/316 Stainless Steel |
| Finish | Bright Zinc Plate, Hot-Dip Galvanized, Plain Stainless |
| Sizes (Gauge x Length) | #6 x 1" to #14 x 6" (Standard & Structural lengths) |

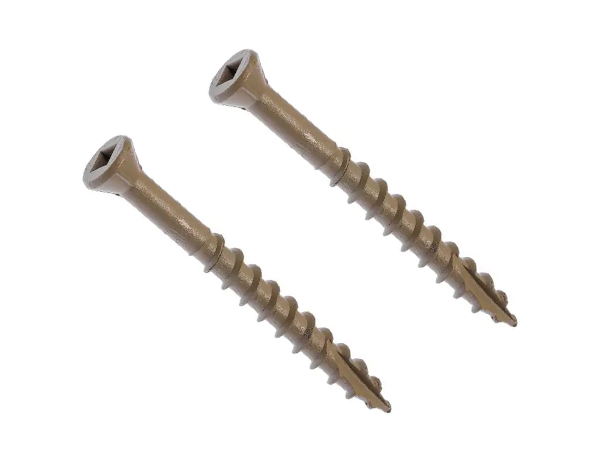

| Point | Sharp Type 17 (Auger) Point for fast wood penetration. |
01

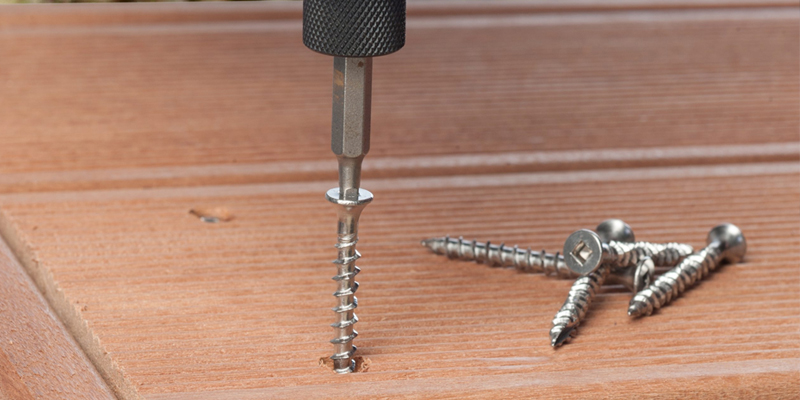

Building Wood Frames and Structures
Used for framing connectors (joist hangers, post bases), heavy timber building, and pallet assembly.
The SQ3 drive allows you apply torque when securing a 2x10 joist to a hanger.
This ensures that the fastener is fully seated and can handle the connector's published load rating without damaging the screw head.

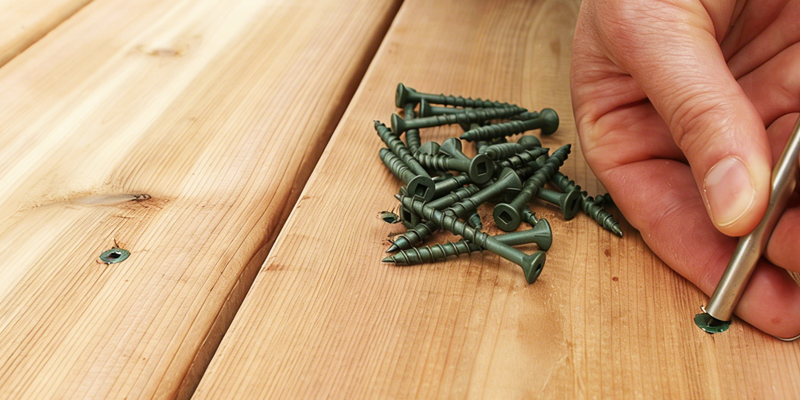

Get A Quick QouteBuilding a Deck and Fence With
Pressure-treated Wood
The square drive is the professional standard for driving long screws (3.5" to 6") into pressure-treated wood that is dense and sometimes wet.
t prevents cam-out during final tightening, which lets the screw head be driven flush without damaging the wood surface or rounding out the recess, a common problem with Phillips screws in this material.
Get A Quick Qoute
Furniture & Cabinet Assembly Requiring Disassembly
Great for knockdown (KD) furniture or fittings that may need to be moved or changed in the future.
The square drive's great re-engagement allows screws be backed out and re-tightened many times without stripping.
Phillips heads, on the other hand, get much worse with each cycle.

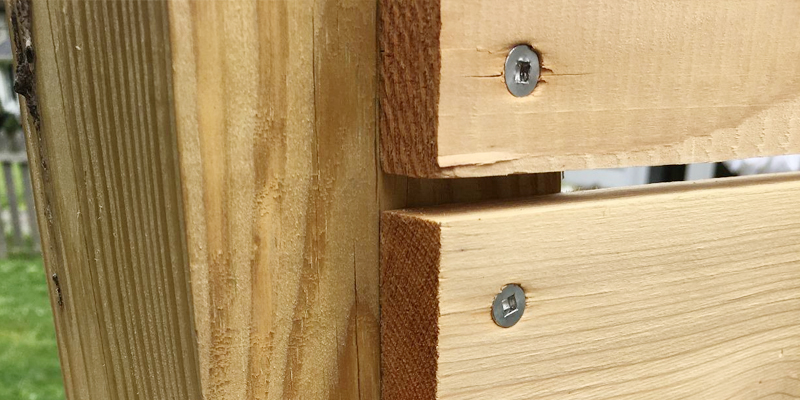

Get A Quick QouteBuilding and Fixing Things in General
The square drive is the professional standard for driving long screws (3.5" to 6") into pressure-treated wood that is dense and sometimes wet.
t prevents cam-out during final tightening, which lets the screw head be driven flush without damaging the wood surface or rounding out the recess, a common problem with Phillips screws in this material.
Get A Quick Qoute
| Feature | Sinsun Square Head | Phillips Head | Slotted Head |
| Cam-Out Resistance | Excellent | Poor - High tendency | Very Poor |
| Torque Transfer Efficiency | >90% | ~50-60% | ~30-40% |
| Driver Bit Wear | Very Low | High - Bits degrade fast | Moderate-High |
| One-Handed Driving Ease | Excellent (Bit stays locked) | Fair - Requires downward pressure | Poor |
| Stripped Head Repair | Very Rare | Common | Extremely Common |
| Best For | Heavy-Duty Framing, Decking, High-Torque Applications | General light-duty assembly | Basic, low-torque |
Customer Feedback
“The Heritage Woodworks restoration workshop repairs architectural millwork and old furniture.On old furniture, it felt wrong to use modern Phillips screws, and they often broke the wood.Sinsun's square drive screws allow for controlled and accurate installation without cam-out, giving us a flush finish. It looks good and it holds things together better and more reliably than slotted screws.”
"At Precision Metal Fabrication, we attach thousands of custom brackets and hinges to wood surfaces. We used pan head screws with Phillips drives, but the high torque often stripped the heads and broke the driver bits. This was fixed by Sinus's pan head square drive screws. The square socket can handle the torque perfectly, so we can quickly drive screws to the same depth with an impact driver. We now install hardware faster, and we use less than half as many bits.“
Expert FAQ
What size square drive bit do I need?
A: To determine the correct size square drive bit, match the screw gauge:SQ1 for #6-#8 screws,SQ2 for #9-#12 screws, and SQ3 for #14 and larger screws. An SQ2 bit handles the majority of common framing and decking tasks.
Are Square Head screws better than Torx?
A: Square Head screws and Torx screws serve similar high-performance purposes. Square drives have a longer history in North American wood construction, offer excellent value, and have ubiquitous bit availability. Torx may offer marginally higher ultimate torque. For most professional woodworking, both are vastly superior to Phillips.
Can I use them with an impact driver?
A: In fact, they are the preferred choice for impact driving. The positive engagement prevents the bit from being thrown out of the recess under the driver's hammering action, increasing safety and control.
Why choose square head over standard deck screws (often Phillips)?
A: Standard Phillips deck screws are a leading cause of installer frustration and wasted time. Upgrading to Square Head screws eliminates stripped screws, reduces driver bit changes, and speeds up the entire project with a more reliable, predictable result.
Are they compatible with all screwdrivers and bits?
A: You need a square recess (Robertson) bit or driver. These are industry-standard, inexpensive, and found in any hardware store or professional toolset. They are not compatible with Phillips, slotted, or hex drivers.
What's the shear strength compared to a standard screw?
A: The shear strength is determined by the screw's shank diameter and material grade, not the drive type. Our Square Head screws are made from the same high-grade steel as our other lines, ensuring full structural performance.
Do you offer self-drilling versions for metal-to-wood?
A: Yes. We offer Square Head self-drilling screws with a drill point for fastening light-gauge metal (like brackets or straps) directly to wood without a pilot hole.
What's the best way to prevent wood splitting?
A: Always pre-drill a pilot hole in hardwoods, near the end of a board, or when using large-diameter screws. The screw's sharp point helps in softwoods, but pre-drilling guarantees a clean, split-free result.
