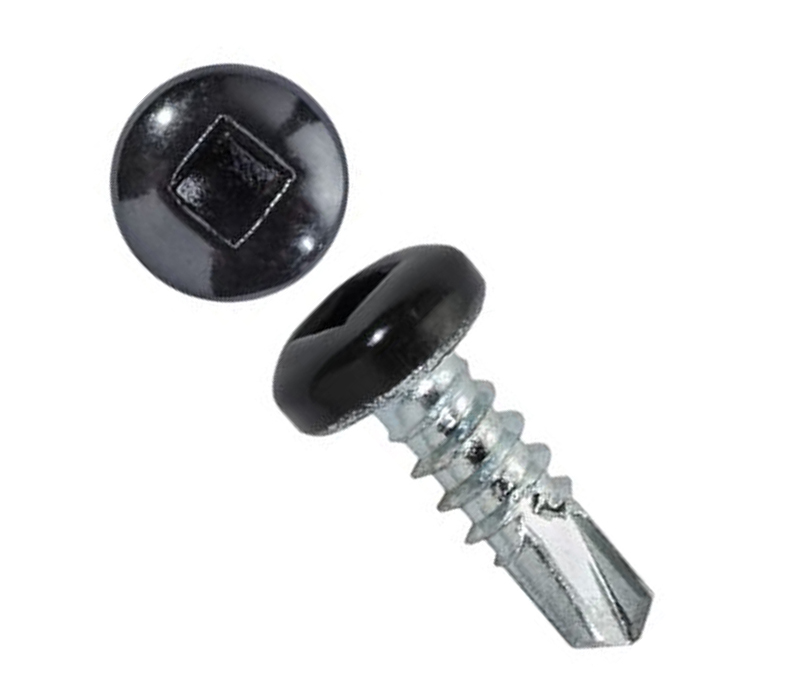

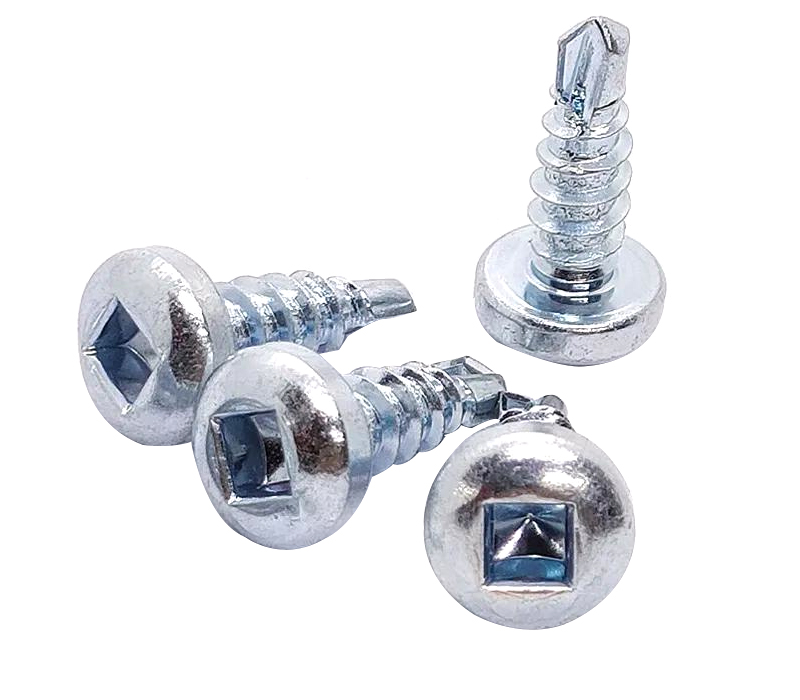

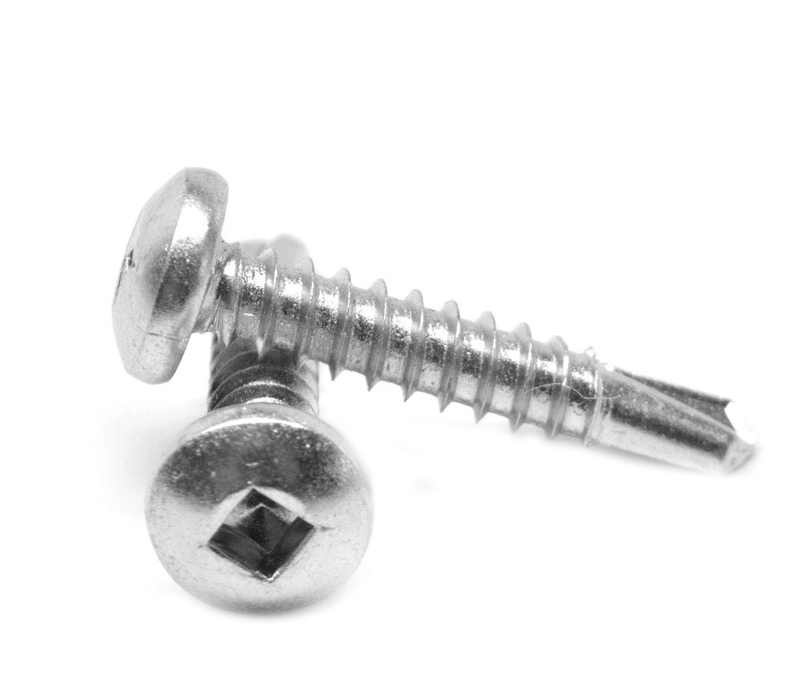

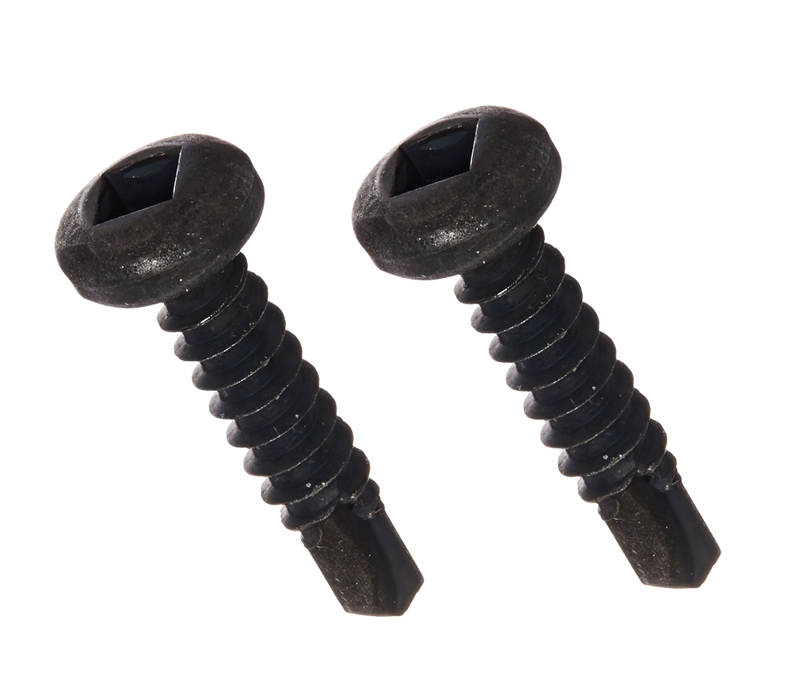

Square drive pan head self drilling screws
No cam-out stripping, even under the highest torque pressure.
A perfect, secure fit for both impact drivers and hand wrenches.
Your reliable choice for heavy-duty wood and metal construction.
01
Sinsun Square Head Self-Drilling Screws:Maximum Torque, Zero Cam-Out Fastening
Sinsun Square Head Self-Drilling Screws feature a square drive for superior torque transfer & no cam-out. Ideal for high-vibration applications, wooden structures, & manual tool use. Durable coatings available.
Get a Quick QouteIntroduction
The Sinsun Square Drive Pan Head Self-Drilling Screws are made to make installation faster and more reliable than any other screws.
This new design combines the better, cam-out resistant torque transfer of a square drive with the flexible, finished look of a regular pan head.
The built-in self-drilling tip completes the package and lets you quickly and easily fasten metal, wood, and composite materials in one step.
The professional will appreciate its ability to prevent tools from slipping, accelerate installation, and ensure a secure grip at all times.

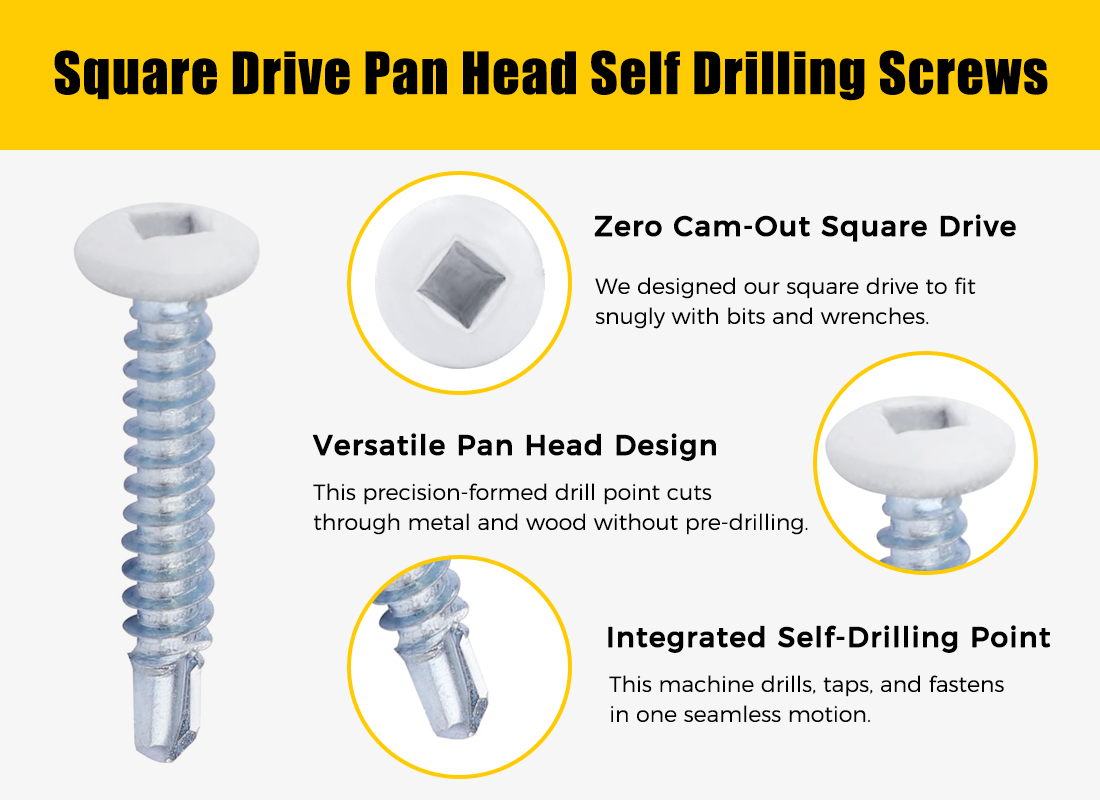

Key Features
Zero Cam-Out Square Drive: We designed our square drive to fit snugly with bits and wrenches, eliminating slippage and stripped heads when installing high torque bits. This ensures maximum force transfer and preserves the tool life of both the fastener and your driver.
Versatile Pan Head Design: This precision-formed drill point cuts through metal and wood without pre-drilling, saving time, labor, and tooling costs. The design offers a good bearing surface without being obtrusive, allowing for secure clamping.
Integrated Self-Drilling Point: The precision-formed drill point cuts through metal and wood without the need for pre-drilling, saving significant time, labor, and tooling costs on the job site. This machine drills, taps, and fastens in one seamless motion.
Robust Construction & Finishes: These screws are made from high-grade steel and can be coated with zinc or Dacromet for superior corrosion resistance when used outdoors or in harsh conditions.
- Sinsun offers a focused range of Square Head Self-Drilling Screws built for performance
- Head Type: Square head (also known as Square Recess or Robertson), designed for a snug, positive-lock fit.
- Drive Sizes: Common sizes include #2, #3, and #4 square drives to match various torque requirements.
-
Global Procurement Organization
Carbon Steel with Zinc Plating: For general-purpose corrosion resistance.
Carbon Steel with Dacromet Coating: For superior, long-term protection against rust in outdoor or harsh environments. -
Spot Market Search
Primarily #2 and #3 drill points, suitable for light to medium-thickness metals.
-
Popular Sizes (Shank Diameter x Length)
#8 x 1", 1-1/2", 2"
#10 x 1-1/2", 2", 2-1/2", 3"
#12 x 2", 2-1/2", 3", 3-1/2" -
Thread
Available in coarse thread for wood and composite materials, and fine thread for metal-to-metal fastening.
-
1
Q: What is the price for square head self-drilling screws?
A: Pricing is highly competitive and depends on size, material/coating grade, and order quantity. For example, a 5-lb box of #10 x 2" zinc-plated screws offers great value for frequent use, while Dacromet-coated options are priced slightly higher for extended durability. We offer significant bulk order discounts for contractors and resellers. Please contact us with your specific requirements for an exact quote.
-
2
Q: Can I get a free sample to test?
A: Absolutely. We encourage you to test the quality and fit of our Square Head screws. Qualified businesses can request a free sample pack to evaluate their performance in your specific application.
-
3
Q: What are the main advantages over Phillips or Hex heads?
A: The key advantages are zero cam-out and superior torque transfer. Unlike Phillips heads that can strip, or hex heads that can round out under extreme force, the square drive provides a positive grip. This is crucial for high-torque applications and when using manual wrenches in tight spaces.
-
4
Q: Are these suitable for pressure-treated lumber?
A: Yes, they are an excellent choice. When paired with the appropriate corrosion-resistant coating (like our Dacromet), they are highly recommended for deck building, fence construction, and other outdoor wood projects using pressure-treated lumber, where chemical corrosion is a concern.
-
5
Q: What is the lead time for bulk orders?
A: For standard stock items, we aim to ship within 3-7 business days. Custom orders (special sizes or coatings) may require additional production time, which we will confirm upon order placement.
