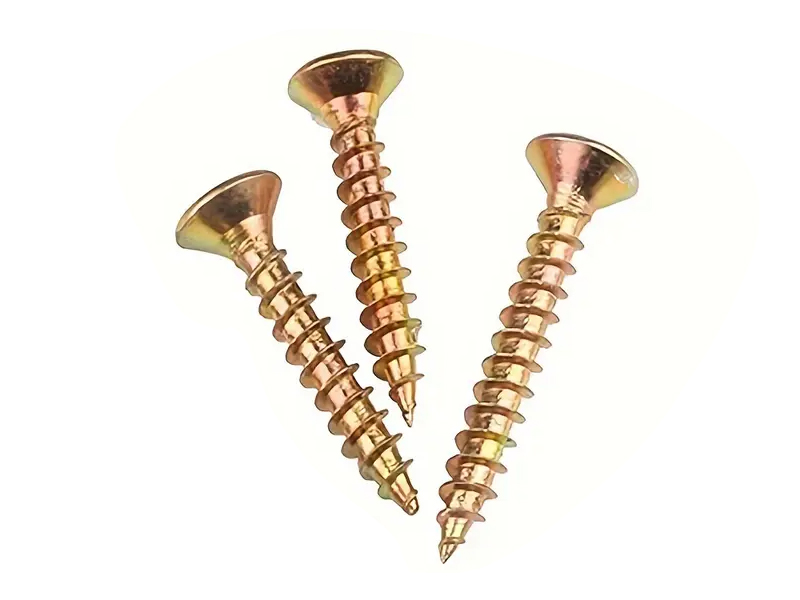

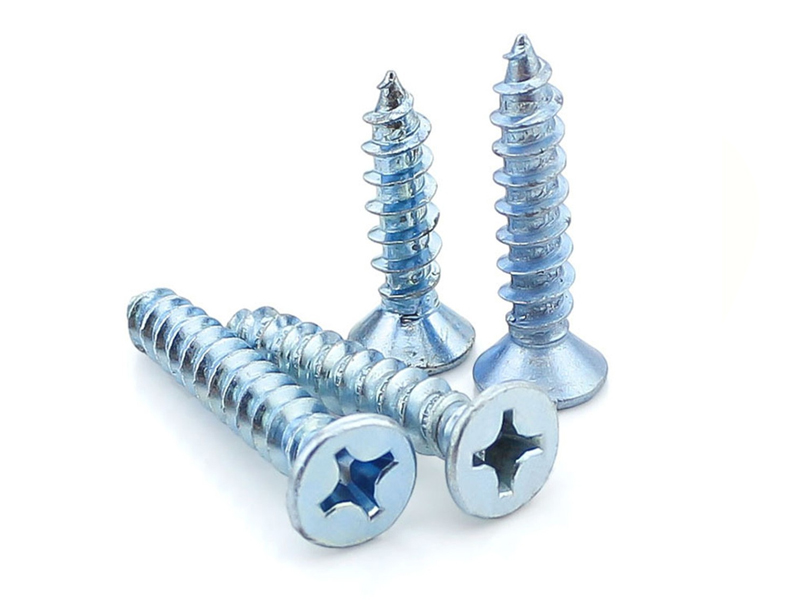

Carbon Steel Galvanized Phillips Self-Tapping Wood Screws
Skip pre-drilling. Drive directly into wood.
Strong, lasting hold for any wood project.
Fast, secure installation, indoors and out.
Sinsun Self-Tapping Wood Screws:Drive Fast, Hold Strong, No Pre-Drill Needed
Manufactured in our own factory for consistent quality and competitive pricing. Our self-tapping wood screws drive directly without pre-drilling, saving you time and labor. Get bulk pricing and custom solutions directly from the source.
Get a Quick Qoute
| Feature / Requirement | Traditional Wood Screws | Sinsun Self-Tapping Wood Screws |
| Installation Process | 2-Step Process: 1. Drill pilot hole. 2. Drive screw. | 1-Step Process: Drive screw directly. The point drills, the threads tap. |
| Tools Needed | Drill (for pilot hole) + Driver Bit. | Driver Bit only. Eliminates drill & bit change. |
| Time & Labor | +50-100% more time per screw due to setup and drilling. | Install up to 50% faster. No setup, continuous driving. |
| Skill / Error Risk | Higher. Misaligned or wrong-sized pilot holes cause splits or weak holds. | Lower. Designed to reduce splitting; consistent results for pros and DIYers. |
| Best For | Projects where ultimate precision on very hardwoods is critical. | Use: Framing, decking, fencing, furniture, general construction. |
| True Cost | Material cost + significantly higher labor time & tool wear. | Material cost + minimal labor time. Higher efficiency on every job. |
The Bottom Line:
Self-tapping screws aren't just a different product; they're a more efficient fastening method. By combining drilling and fastening into one action, they save measurable time, reduce tool hassle, and minimize errors, providing a clear return on investment for every project.

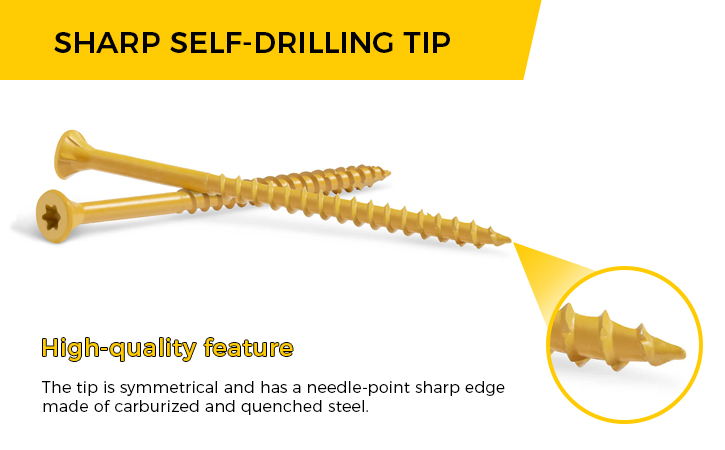

Sharp Self-Drilling Tip
This is the most crucial feature. A sharp, hardened point acts as a drill bit, penetrating material cleanly without walking or requiring excessive force.
High-quality feature: The tip is symmetrical and has a needle-point sharp edge made of carburized and quenched steel.
Low-quality feature: The tip is dull, rounded, or not symmetrical, which results in poor drilling performance and may require pre-drilling, a function it was not originally intended to perform.

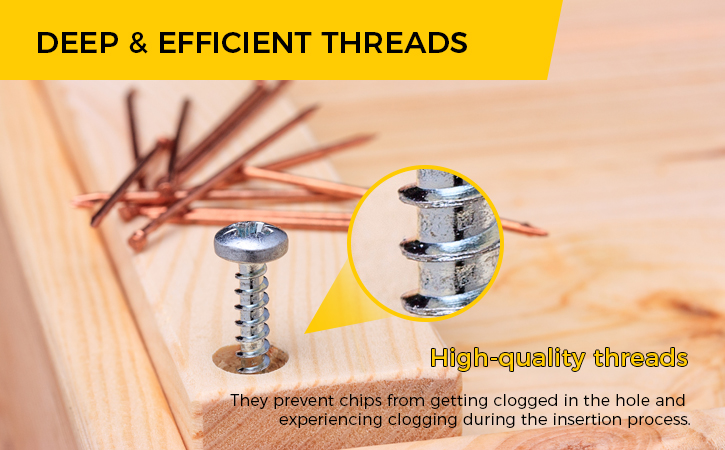

Deep & Efficient Threads
Threads should not only be able to hold weight, but they should also be able to quickly and easily remove chips, prevent jamming, and ensure that the self-threading process occurs smoothly and quickly.
High-quality: They prevent chips from getting clogged in the hole and experiencing clogging during the insertion process.
Low-quality: Poorly formed threads cause chips to build up in the hole, increasing tapping torque and increasing the risk of breakage.

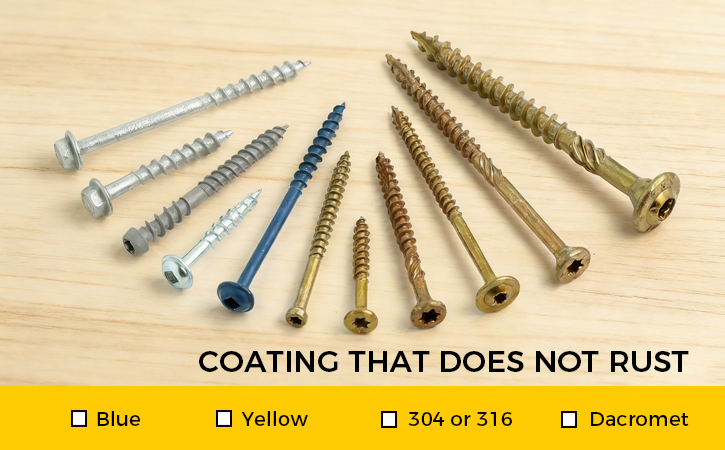

A coating that does not rust.
The coating informs you about how long the screw will last and whether it will function in the environment. It is a functional layer, not just a layer.
A uniform, thick zinc plating (blue, yellow, or clear) is all that is needed for indoor use.
For use outside or in water, you need stainless steel (304 or 316 grade) or a heavy-duty coating such as zinc-aluminum flake (like Geomet or Dacromet).

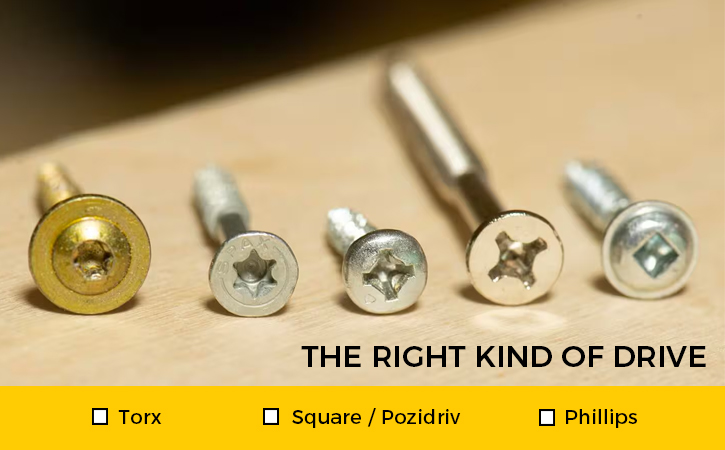

The right kind of drive
The drive affects how well torque is transferred from your tool to the screw, which in turn affects speed and helps prevent damage from occurring.
Phillips: common but prone to slip or strip when a lot of torque is applied.
Square / Pozidriv: Better grip and less cam-out than Phillips drives.
Torx: better torque transfer, less cam-out, and the longest life for driver bits. It is the best choice for work that requires a lot of volume or torque.

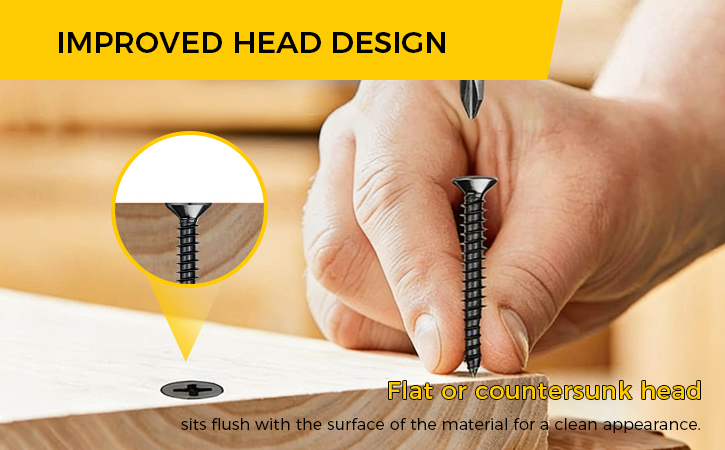

Improved Head Design
The head ensures that the fastener performs its final job, which is to hold materials together tightly.
Flat or countersunk head: sits flush with the surface of the material for a clean appearance.
Round/Dome Head: makes the finish look nicer and provides a larger surface for the bearing to work on.
Washer/Hex Washer Head: This head has a wide load-distributing washer that prevents pull-through in soft materials and allows for the use a lot of torque with a wrench.
By specifying screws that excel in these five areas, you invest in efficiency, reliability, and total project cost savings.For your specific application needs, consult the Sinsun technical guide or contact our engineering support.
-

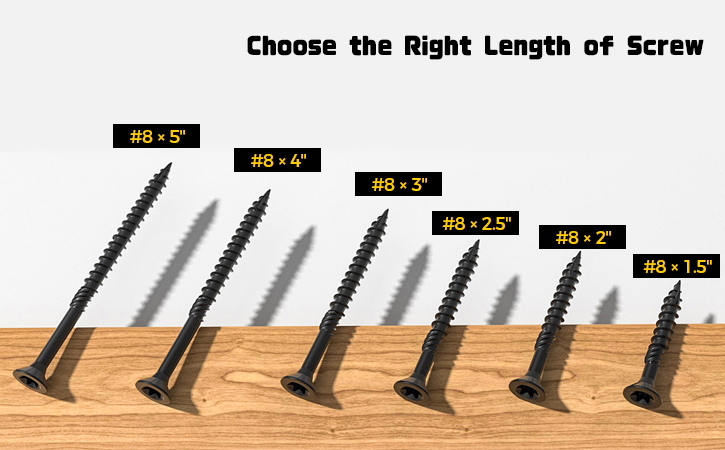

Tip 1: Choose the Right Length of Screw.- The screw must be long enough to go all the way through the top material and achieve a good grip on the bottom material.
- Screw Length = Thickness of Top Material + Minimum Engagement
- Minimum Engagement: To obtain a good grip on wood, the thread should penetrate at least 1 inch (25mm) into the bottom material. Engagement should be at least 1.5 inches (38mm) for structural connections.
-

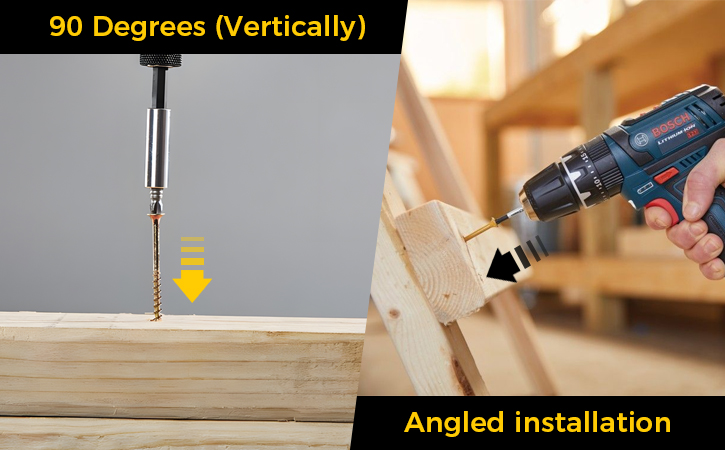

Tip 2: The Correct Angle for Installation- During installation, the angle of the product has a significant effect on both the strength of the connection and the stress on the material.It is most common to install the system 90 degrees (vertically), since this provides the maximum clamping force and resistance to pull-outs.
- Angled installation: Similar to the slant-screw technique, driving screws at an angle enhances shear connection strength. Additionally, angled installation is necessary when overhead access is restricted. Common angles range from 15 to 30 degrees.
- Important note: When possible, vertical installations should be prioritized for maximum load bearing capacity.Angled installation is only required in specific frame structures or when space constraints necessitate it.
-

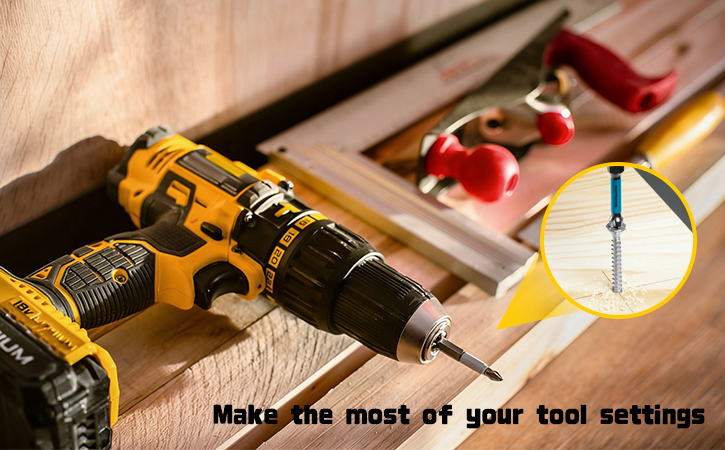

Tip 3: Make the most of your tool settings
- Using the right settings on your tools keeps them from breaking and ensures they fit properly.
- Use the drill icon mode (not the hammer) for consistent rotational force.
- Speed Technique: Start slowly to let the self-drilling point settle in and stop it from "walking." Once it's in place, speed up to full speed for fast driving.
- With an adjustable clutch, set it just high enough to sink the screw head to the right depth (flush or slightly below). This stops stripping and over-driving. Use a high-torque setting or an impact driver for screws that are very strong.
-

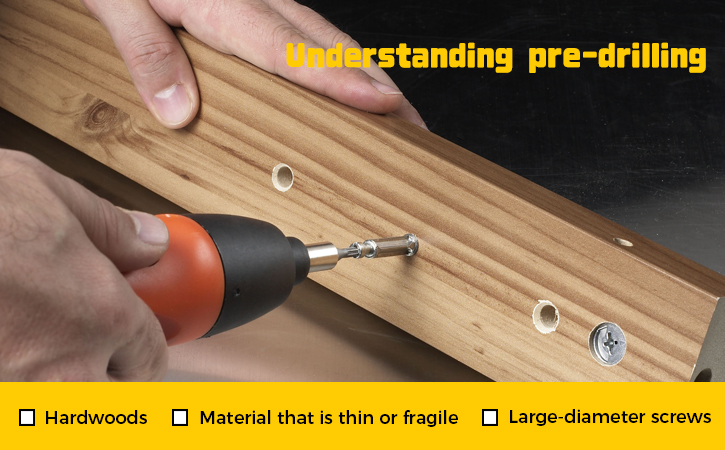

Tip 4: Learn when to pre-drill- Even though they are "self-tapping," pre-drilling is still very important in some situations to avoid failure:
- Always pre-drill near the edges or ends of boards to prevent them from splitting. The hole for the pilot should be a little smaller than the screw's shank.
- Hardwoods (like oak and maple): Pre-drilling a pilot hole makes it easier to drive the screw and prevents it from breaking.
- Material that is thin or fragile: Pre-drilling keeps it from cracking or bending.
- Large-Diameter Screws (usually >1/4" or 6mm): The extra force needed can cause the wood to split, so a pilot hole is highly recommended.
- Using these exact methods will make your tools last longer, keep your materials safe, and ensure you get professional-quality results.
| Parameter / Feature | Self-Tapping Wood Screws | Sheet Metal Screws | Hex/Washer Head Self-Tappers | Self-Drilling Screws | Stainless Steel Self-Tappers |
| Primary Design | Widely spaced threads, sharp or Type-17 point. | Full-length uniform threads, sharp needle point. | Hex head with/without washer for high-torque driving. | Integrated drill point (e.g., TEK 2/3/4) for metal penetration. | Entire screw made from 304/316 stainless steel. |
| Common Head Style | Flat, Round, Washer. | Flat, Round, Hex. | Hex Washer Head predominantly. | Hex Washer Head, Flat, Pan. | All styles (Flat, Hex, etc.). |
| Core Thread Design | Coarse, deep threads for maximum wood grip. | Fine, closely spaced threads for thin metal. | Fine (metal) or Coarse (wood), optimized for torque. | Fine threads, engages immediately behind drill point. | Application-dependent (fine for metal, coarse for wood). |
| Point Design | Sharp point or Type-17 (auger) point for chip clearance. | Sharp needle point for piercing and thread start. | Sharp point or drill point. | Integrated drill point, rated for thickness (e.g., TEK 3 for ~3mm steel). | Application-dependent (sharp or Type-17). |
| Typical Material & Finish | Carbon steel, Zinc-plated, phosphated, or corrosion-resistant coating. | Carbon steel, Zinc-plated (various colors). | Carbon steel with Zinc or heavy-duty coating (e.g., Dacromet). | Hardened carbon steel, zinc-plated. | A2-304 or A4-316 Stainless Steel, inherently corrosion-resistant. |
| Primary Applications | Timber-to-timber, wood panel connections. | Fastening thin gauge sheet metal, aluminum. | Structural framing, metal roofing, high-torque installations. | Metal framing (steel, aluminum) without pre-drilling. | High-corrosion environments: outdoors, coastal, chemical. |
| Key Selection Tip | Length must engage bottom wood by at least 25mm (1"). | Diameter should match metal gauge; avoid over-torquing. | Match head size to driving tool (wrench/socket). | Select drill point size based on total material thickness. | Specify A4-316 for marine/chemical exposure. |
| Key Advantage | Resists splitting, superior pull-out strength. | Creates strong threads in thin metal. | Fast installation, high torque, resists cam-out. | Eliminates pre-drilling, maximizes efficiency. | Exceptional corrosion resistance for long service life. |
Stop fighting with broken planks and rotting posts. The sharp drill-point tip on our self-tapping screws lets them go through pressure-treated wood without having to drill pilot holes first. This gets rid of the main reason why wood splits at the edges. You can cut the time it takes to put up a 20-foot fence section by almost 40% by using 3.5-inch screws to attach the pickets. By pulling boards tight against the joists, the built-in washer head creates a squeak-free deck surface.
Achieve clean, professional results in your workshop. The fine threads and sharp point of our fine woodworking screws cut precisely into hardwoods such as oak and maple, providing superior holding power without blowout on the reverse side.When building a basic bookshelf, these screws eliminate the 15–20 minutes typically spent setting up and switching between pilot and countersink bits, reducing total project time by 25%.
On a job site, speed and dependability are everything. Our special concrete-cutting self-tappers can attach 2x4 sleepers to a concrete subfloor in one step. They go through both the wood and a steel deck channel. This replaces the long process of using powder-actuated fasteners (PAFs). Contractors say that they can install one screw every 8 to 10 seconds, while it takes 20 or more seconds for PAFs, which includes handling cartridges and dealing with frequent jams. This can cut days off the schedule for a project with more than one unit.
The structures you build can last for many years in just one afternoon. Our outdoor-grade screws have a coating that prevents them from rusting, even when they are exposed to soil and moisture all the time. This prevents the red rust stains that regular screws get in just one season. It takes over 60 screws to secure cedar planks to 4x4 posts to make a 4 x 8 raised garden bed without splitting.With this one-tool method, a complicated project becomes a simple, fun build that can be finished in half the time of traditional methods.
Free Sample Program
Professional Technical Support
Fast Shipping
Quality Assurance
-
Q: When should I use 3-inch self-tapping wood screws? Can they take the place of lag bolts?
-
Q: What do people use 2- 1/2-inch self-tapping wood screws for the most?
-
Q: What should I look for in screws that will connect metal to wood?
-
Q: Why are self-tapping screws good for decks outside?
-
Q: How are self-tapping timber screws different from regular wood screws?
-
Q: Can I use any self-tapping screw for pocket hole joinery?
-
Q: Is there a difference between ‘tapping screws for wood’ and ‘self-tapping screws for wood’?
-
Q: How does a screw successfully tap threads in hardwood versus softwood?
