Self Tapping Concrete Screws
Drill once. Drive once. Hold forever.
Corrosion resistant concrete anchoring.
500+ hour salt spray tested
01
Sinsun Self Tapping Concrete Screws: Engineered for Direct Masonry Anchoring
Sinsun self-tapping concrete screws deliver 300-500 kg tensile load capacity. Heat-treated carbon steel & 304/316 stainless. No plugs, no sleeves—just drill and drive. Ideal for construction, MEP, and heavy anchoring.
Sinsun self tapping masonry screws:
The Direct Fix Solution for Masonry
The Direct Fix Solution for Masonry
Traditionally, concrete anchoring required expansion shields, sleeve anchors, or chemical adhesives, which all required multiple parts and careful installation.
Our self-tapping concrete screws (also called self-drilling concrete screws or masonry self-tapping screws) are made to screw directly into concrete, brick, and block without the need for expansion sleeves or chemical inserts. The built-in thread design cuts mating threads directly into the base material as the screw is driven, making a strong, secure connection that can be taken apart.
We don't just make fasteners at Sinsun. We also design anchoring solutions that are based on metallurgical science, third-party testing, and meeting international standards. Sinsun self-tapping concrete screws make it easy to install heavy equipment or shelves, and they will last for a long time and keep your structure strong.

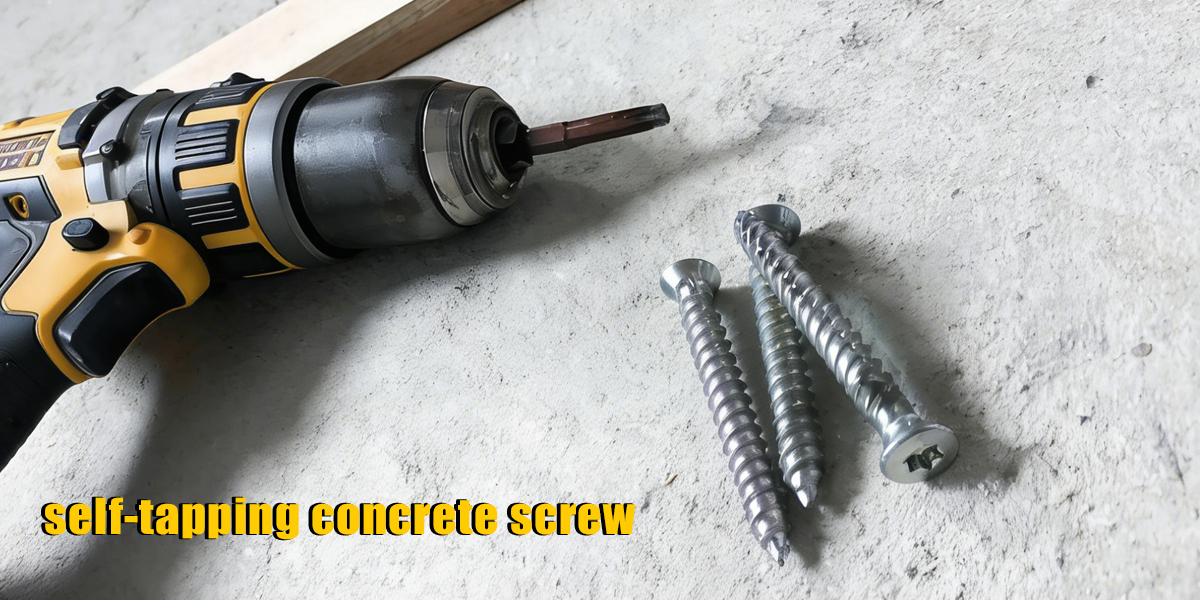

What is a self-tapping concrete screw?
SINSUN
A self-tapping concrete screw is a specialized fastener designed to anchor directly into concrete, brick, or masonry without requiring additional components such as expansion bolts, sleeves, or bushings.
Unlike friction-based expansion anchors, concrete screws create a mechanical interlock by cutting threads into the substrate. This ensures a secure connection while also enabling the fastener to be removed.
Learn More
1
Using a carbide-tipped hammer drill bit, make a pilot hole.
2
Get rid of any dust and debris in the hole.
3
Use an impact driver or wrench to drive the screw straight into the hole.
4
As you insert the screw, it cuts its own threads into the concrete.
The Sinsun Advantage: Our unique thread shape and heat treatment process ensure that even the hardest concrete can be cut with the same thread every time. The case-hardened surface also ensures threads don't wear out during installation.
| Thread Feature | Function | Benefit |
| High threads | Cut into base material | Create mechanical interlock |
| Low threads | Clear debris | Reduce installation torque |
| Hardened tip | Initiate thread cutting | Prevents walking during start |
| Case-hardened surface | Wear resistance | Maintains thread sharpness |
Screw threads are designed to cut through concrete, not crush it.This keeps the material's structural integrity while making precise mating threads. This means that the holding power strengthens over time as the screw settles into the material.
01

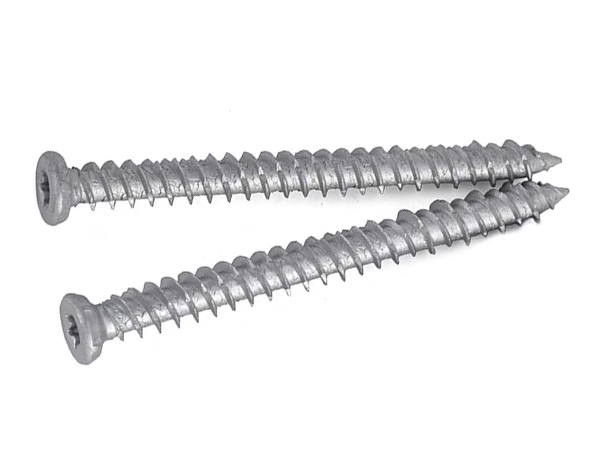

Discover the robust performance of Sinsun concrete tapping screws with our detailed technical specifications and load data for construction applications.
Read more
| Parameter | Specification |
| Product Name | Self Tapping Concrete Screws / Masonry Screws / Concrete Anchors |
| Material | Carbon Steel (C1022 / C1035) / 304 Stainless Steel (A2) / 316 Stainless Steel (A4) |
| Standard | ASTM C1513 (US), ETAG 001 (European), ISO 9001 Manufacturing Standard |
| Surface Finish | Blue Zinc / Yellow Zinc / Black Oxide / E-coat / Plain (Stainless) / Geomet / Dacromet (High Corrosion) |
| Head Type | Hex Washer Head / Flat Countersunk Head / Pan Head / Truss Head / Round Head |
| Drive Type | TORX (T-20, T-25, T-30, T-40) / Phillips #2 / Phillips #3 / Square Drive #2 / Hex Socket / Slotted |
| Thread Type | Double Lead / Hi-Lo Thread / Deep Spiral / Continuous Thread with Cutting Notches |
| Point Type | Sharp Point / Diamond Point / Self-Drilling Point with Mill Cut / Split Point |
| Hardness (Core) | HRC 28–38 (Carbon Steel) / Annealed (Stainless) |
| Case Hardness (Surface) | HRC 45–53 (Case Hardened) |
| Drilling Capability | Direct setting into concrete, brick, block, and masonry—no wall plugs or anchors required |
| Embedment Depth | Minimum 1" (25mm) into base material |
| Fixture Thickness Range | Up to 1/2" (12mm) for standard lengths (varies by screw length) |
| Pull-Out Resistance | 200–1500 lbs (depending on diameter, embedment, and concrete strength) |
| Shear Strength | 300–2500 lbs (depending on diameter and material grade) |
| Installation Tool | Impact Driver / Hammer Drill (for pilot hole) + Impact Driver (for installation) / Screw Gun with Clutch |
| Pilot Hole Required | Yes—must pre-drill with correctly sized masonry bit |
| Pilot Hole Diameter | Equal to screw root diameter (see specification table below) |
| Corrosion Resistance | 72–150 hrs Salt Spray (Zinc) / 200+ hrs (E-coat/Geomet) / 1000+ hrs (Stainless Steel) |
| Temperature Range | -40°F to 300°F (-40°C to 150°C) |
| Application | Concrete (normal weight), Brick, Block, Stone, Mortar Joints |
| Base Material Strength | Minimum 2500 psi concrete recommended; works in 2000–5000+ psi |
| Certification | ICC-ES (ESR Option), CE Mark, RoHS Compliant, ISO 9001:2015 |
Are you tired of struggling with regular screws while working on your construction projects?

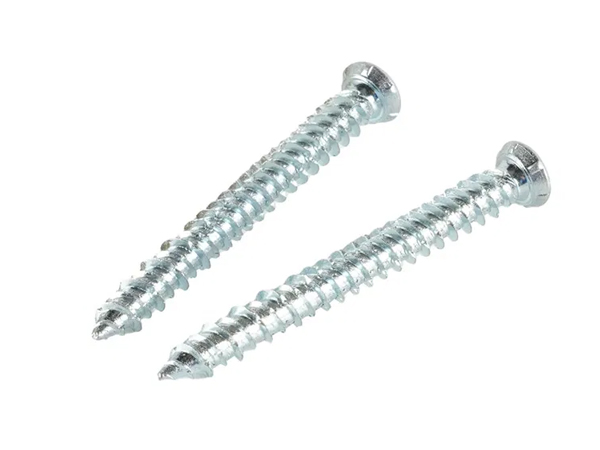

Say goodbye to your frustrations with Torx Head Concrete Screws and Construction Frame Screws from Sinsun Fastener!
Read more
| Screw Size (Diameter x Length) | Drill Bit Size (For Pilot Hole) | TORX Drive Size | Head Diameter (Hex Washer) | Threads Per Inch (TPI) | Embedment Depth | Max Fixture Thickness | Typical Pull-Out (4000 psi concrete) |
| #8 x 1-1/4" | 3/16" (0.1875") | T-20 | 5/16" | 14 TPI | 1" | 1/4" | 400 lbs |
| #8 x 1-3/4" | 3/16" (0.1875") | T-20 | 5/16" | 14 TPI | 1" | 3/4" | 400 lbs |
| #10 x 1-1/2" | 3/16" (0.1875") | T-25 | 3/8" | 12 TPI | 1" | 1/2" | 550 lbs |
| #10 x 2" | 3/16" (0.1875") | T-25 | 3/8" | 12 TPI | 1" | 1" | 550 lbs |
| #10 x 2-1/4" | 3/16" (0.1875") | T-25 | 3/8" | 12 TPI | 1" | 1-1/4" | 550 lbs |
| #12 x 1-3/4" | 1/4" (0.250") | T-30 | 7/16" | 10 TPI | 1-1/4" | 1/2" | 800 lbs |
| #12 x 2" | 1/4" (0.250") | T-30 | 7/16" | 10 TPI | 1-1/4" | 3/4" | 800 lbs |
| #12 x 2-1/2" | 1/4" (0.250") | T-30 | 7/16" | 10 TPI | 1-1/4" | 1-1/4" | 800 lbs |
| #12 x 3" | 1/4" (0.250") | T-30 | 7/16" | 10 TPI | 1-1/4" | 1-3/4" | 800 lbs |
| #14 x 2" | 5/16" (0.3125") | T-40 | 1/2" | 8 TPI | 1-1/2" | 1/2" | 1100 lbs |
| #14 x 2-1/2" | 5/16" (0.3125") | T-40 | 1/2" | 8 TPI | 1-1/2" | 1" | 1100 lbs |
| #14 x 3" | 5/16" (0.3125") | T-40 | 1/2" | 8 TPI | 1-1/2" | 1-1/2" | 1100 lbs |
| #14 x 3-1/2" | 5/16" (0.3125") | T-40 | 1/2" | 8 TPI | 1-1/2" | 2" | 1100 lbs |
| #14 x 4" | 5/16" (0.3125") | T-40 | 1/2" | 8 TPI | 1-1/2" | 2-1/2" | 1100 lbs |
| Screw Size (Diameter x Length) | Drill Bit Size (For Pilot Hole) | TORX Drive Size | Head Diameter (Hex Washer) | Thread Pitch (mm) | Embedment Depth | Max Fixture Thickness | Typical Pull-Out (C30/35 Concrete) |
| 4.8mm x 32mm | 4.0mm | T-20 | 8.0mm | 2.2mm | 22mm | 10mm | 1.8 kN |
| 4.8mm x 45mm | 4.0mm | T-20 | 8.0mm | 2.2mm | 22mm | 23mm | 1.8 kN |
| 5.5mm x 38mm | 4.5mm | T-25 | 9.5mm | 2.5mm | 25mm | 13mm | 2.5 kN |
| 5.5mm x 50mm | 4.5mm | T-25 | 9.5mm | 2.5mm | 25mm | 25mm | 2.5 kN |
| 5.5mm x 65mm | 4.5mm | T-25 | 9.5mm | 2.5mm | 25mm | 40mm | 2.5 kN |
| 6.3mm x 45mm | 5.0mm | T-30 | 11.0mm | 3.0mm | 30mm | 15mm | 3.8 kN |
| 6.3mm x 60mm | 5.0mm | T-30 | 11.0mm | 3.0mm | 30mm | 30mm | 3.8 kN |
| 6.3mm x 75mm | 5.0mm | T-30 | 11.0mm | 3.0mm | 30mm | 45mm | 3.8 kN |
| 6.3mm x 90mm | 5.0mm | T-30 | 11.0mm | 3.0mm | 30mm | 60mm | 3.8 kN |
| 7.5mm x 52mm | 6.0mm | T-40 | 13.0mm | 3.5mm | 35mm | 17mm | 5.2 kN |
| 7.5mm x 70mm | 6.0mm | T-40 | 13.0mm | 3.5mm | 35mm | 35mm | 5.2 kN |
| 7.5mm x 90mm | 6.0mm | T-40 | 13.0mm | 3.5mm | 35mm | 55mm | 5.2 kN |
| 7.5mm x 100mm | 6.0mm | T-40 | 13.0mm | 3.5mm | 35mm | 65mm | 5.2 mm |
self tapping concrete anchors of Applications

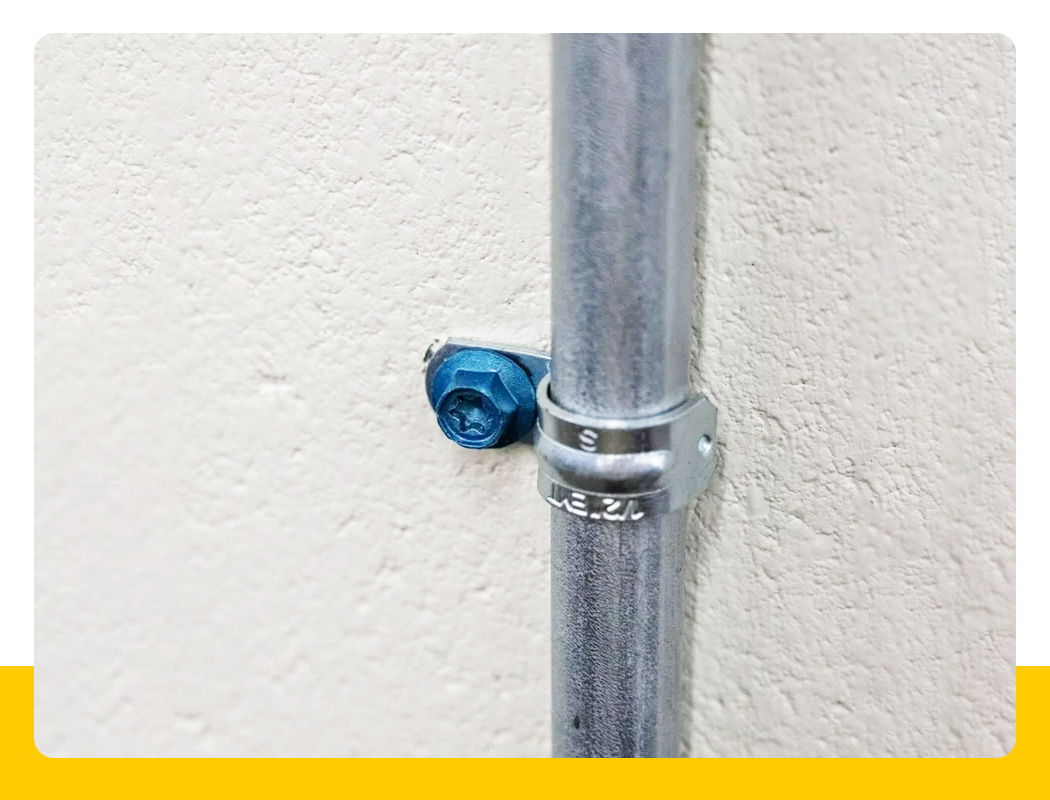

Self Tapping Screws for Brick
These screws go directly into solid clay bricks, standard bricks, and sand-lime bricks.
A standard 6 mm pilot hole allows each screw to go through a 6 mm thick steel bracket and into the brickwork 35 mm deep. During pull-out tests conducted on site, each screw held an average of 3.8 kN, much more than the 2.5 kN required by the project.
These screws are made of hardened carbon steel and have sharp threads.By comparing them to regular anchors, they save 35% on installation time and don't require wall anchors. After 14 months of testing, all fasteners stayed tight and there were no loose fasteners orall fasteners stayed tight and there were no loose fasteners or bricks breaking.

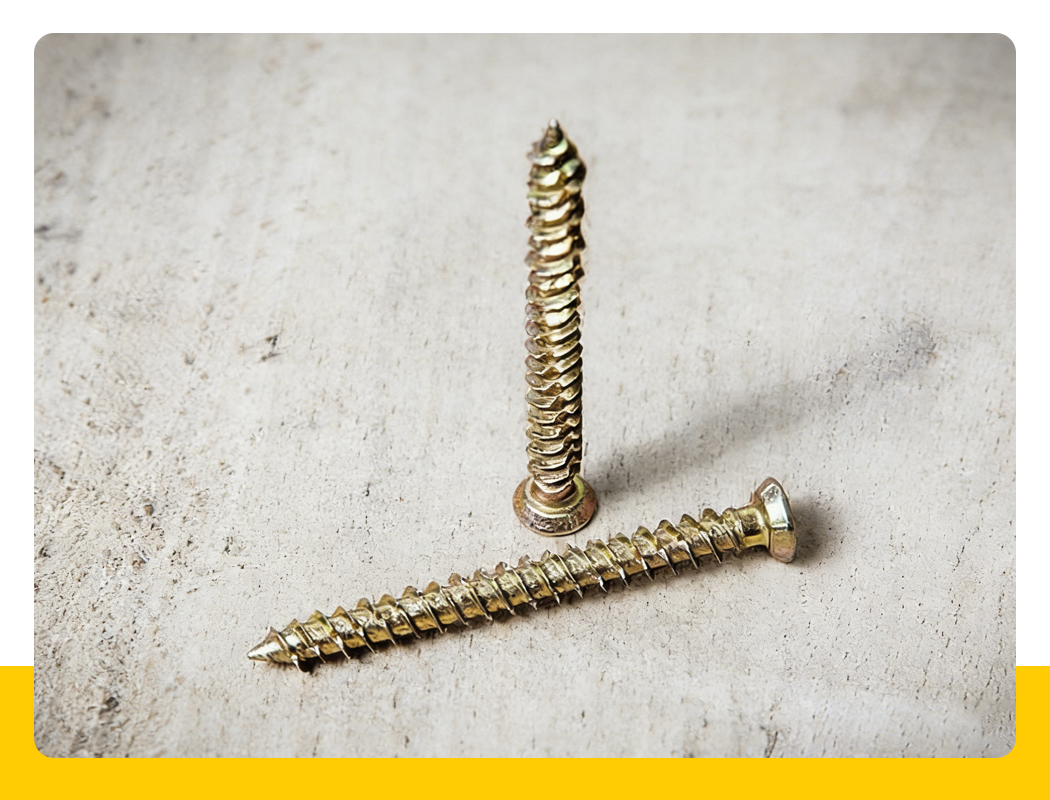

Masonry Screws for Concrete
Sinsun masonry screws securely bond to standard concrete ranging from 2500 to 8000 psi. Four thousand screws (1/4-inch x 2-3/4-inch) were installed in C40 concrete posts in a Melbourne, Australia parking lot safety barrier project. Pre-drilled pilot holes were drilled 3/16 inches deeper than the embedment depth to accommodate dust.
Torque-controlled impact drills ensured consistent installation at 65 inch-pounds of torque, achieving an average pull-out resistance of 1,100 pounds per screw.The blue zinc coating on the screws prevents corrosion from vehicle exhaust and moisture. There was no rework necessary due to loosening connections based on customer feedback.

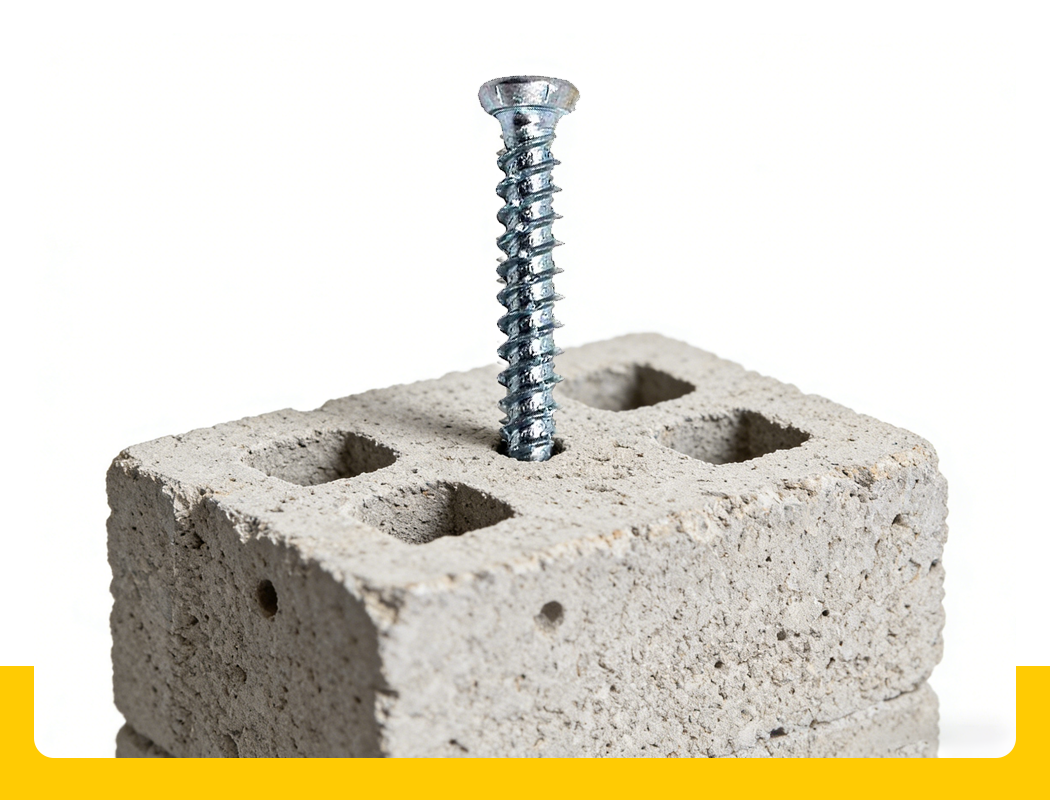

Self-tapping screws for breeze block
Sinsun self-tapping screws are designed for breeze block (aerated concrete block) and work well in masonry that is light and porous.3,500 screws (6.3mm x 90mm) were installed into 3.5 N/mm aerated blocks to hold down the timber sole plates for a garden room in Norwich, UK. A 5mm pilot hole was drilled all the way through the screw.
The screws were driven 60mm deep with T30 impact drivers. Load testing showed that the average pull-out resistance of 380 kg per screw exceeded the design load of 250 kg for the timber frame. The screws enable direct fixing without wall plugs, which saved about 20 hours of work on 40 units. After 18 months, there have been no reports of loosening or rust.

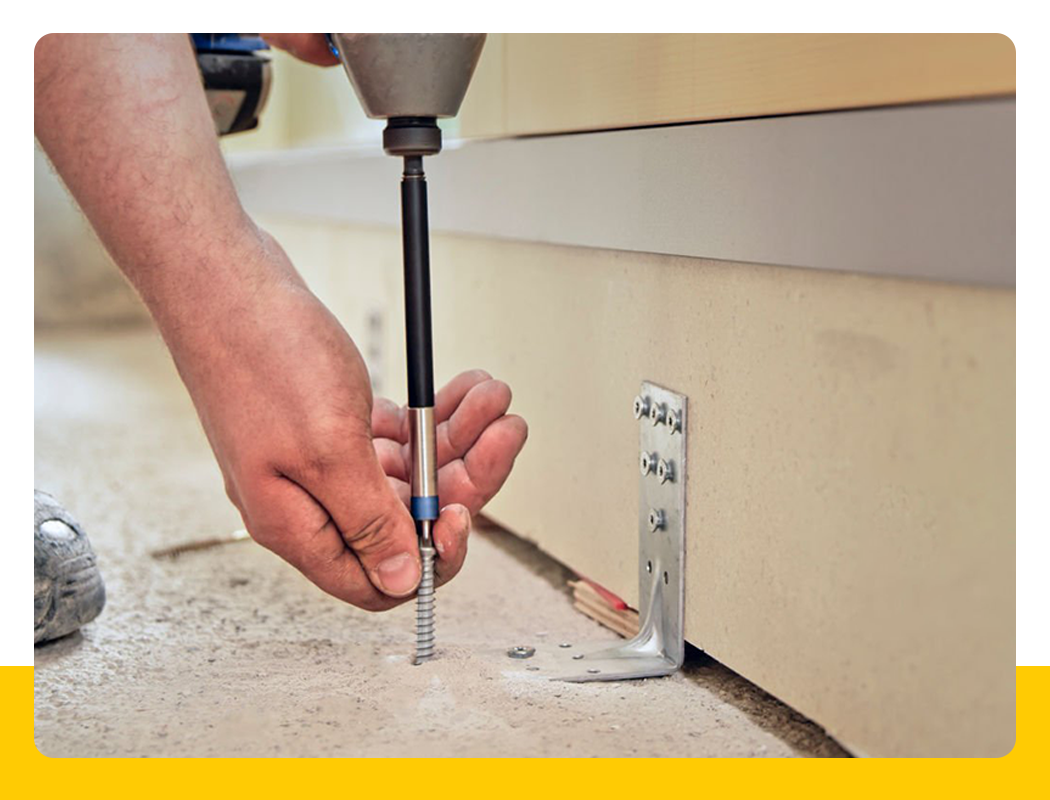

Putting wood and metal framing on concrete
Sinsun self-tapping Concrete screws are the most effective way to attach sill plates, stud tracks, and furring strips to concrete floors and walls in both homes and businesses. The self-tapping design eliminates the need for powder-actuated tools or expansion anchors, which can cut installation time in half.
Why Sinsun: The heat-treated threads cut through concrete without breaking, and the hex head ensures the driver stays engaged for high-torque installation. Available in lengths up to 8 inches for thick framing members.
| Fixture Type | Recommended Screw Size | Minimum Embedment |
| Light duty (shelves, brackets) | M6 (1/4") | 1" (25mm) |
| Medium duty (handrails, framing) | M8 (5/16") | 1-1/2" (38mm) |
| Heavy duty (structural, equipment) | M10 (3/8") | 2" (50mm) |
Rule of thumb: Screw length = fixture thickness + minimum embedment + 1/4"
Step 2: Drill the Pilot Hole
| Screw Size | Drill Bit Diameter | Hole Depth | Drill Type |
| M6 (1/4") | 5.0-5.5mm (3/16"-7/32") | Embedment + 10mm | Hammer drill, carbide bit |
| M8 (5/16") | 6.5mm (1/4") | Embedment + 10mm | Hammer drill, carbide bit |
| M10 (3/8") | 8.5mm (5/16") | Embedment + 10mm | Hammer drill, carbide bit |
Critical: Hole depth must exceed screw embedment by at least 1/4" to accommodate dust and debris .
| Parameter | Sinsun Self Tapping Screw | Wedge Anchor | Sleeve Anchor | Chemical Anchor |
| Installation Steps | Drill, clean, drive | Drill, clean, insert, tighten | Drill, insert, tighten | Drill, clean, inject, insert, wait |
| Installation Time | Fastest | Moderate | Moderate | Slow (cure time required) |
| Removability | Yes—fully removable | Difficult—damages hole | Moderate | No—permanent |
| Reusability | Yes (multiple times) | No | No | No |
| Expansion Force | None | High—can crack concrete | Moderate | None |
| Edge Distance Required | Minimal | Large | Moderate | Minimal |
| Load Capacity | High (medium-heavy) | Very high (heavy) | Medium | Highest |
| Cost per anchor | Moderate | Low-Moderate | Low | High |
-
1
Quality of Engineering Grade
Sinsun makes all of its concrete screws in ISO 9001-certified factories with strict quality checks. We don't just meet the standards; we go above and beyond them: Material traceability: You can get mill certificates for every batch. Verification of heat treatment: testing the hardness of each production run. Thread gauges checked for dimensional accuracy according to ASME/ISO standards. Batch testing: ASTM rules say to test random samples. -
2
Comprehensive Material Options
Material Best For Sinsun Advantage Zinc-plated carbon steel Indoor, dry applications Consistent coating thickness, no bare spots Hot-dip galvanized Outdoor, freshwater ASTM A153 compliant, 2.5 mil minimum 304 stainless Coastal inland, food processing Non-magnetic, 1,500+ hrs salt spray 316 stainless Marine, chemical Molybdenum addition, 5,000+ hrs salt spray -
3
The ability to supply the whole world
Sinsun delivers with a monthly production capacity of more than 10 million pieces and strategic warehousing. Stock availability: Sizes that are in stock and can be shipped immediately Bulk packaging: Custom packaging options for large contractors Shipping to North America, Europe, and other places around the world. Lead times: 15 days for stock items and 30 to 45 days for bulk production. -
4
Services for customization
Want something unique? Sinsun can provide OEM and ODM work: Lengths to change: from 1" to 12". Torx, hex, square, and Phillips are some special drives. Different head styles: flat, hex, pan, and countersunk. Proprietary coatings: Choose the color or performance you need. Private labeling: Your brand on our high-quality products. -
5
Help with technology
Our engineering team is ready to help with: Recommendations for specific applications Calculating loads and design values Troubleshooting installation Questions about following the code Email:info@hbsinsun.com Call :+8613622187012
Real Customer Feedback
"We changed all of our UniSTRUT installations from wedge anchors to Sinsun self-tapping concrete screws. Installation time was down by 40%, and we haven't received any calls. 316 stainless steel works well in our coastal area."
— Mike's Mechanical, San Diego"I've tried every concrete screw on the market. There is a noticeable difference between Sinsun's thread quality and the competition's—Sinsun cuts cleanly without stripping, even in hard aggregate concrete. The 500-hour salt spray rating gives me confidence in exterior applications."
— Commercial Contractor, Florida"We needed anchors for our production facility that could be moved and taken out as equipment changed. The only concrete screws that can be installed over and over again without losing grip are the ones made by Sinsun."
— Facility Manager, Ohio "The sample program is a lifesaver. I ordered five different sizes to test before ordering bulk. The engineering team helped me select the right screw for my retaining wall project. Five-star service."
— Landscape Contractor, Washington-
1
Q: Do I need to pre-drill for concrete screws?
A: Yes. Even though they're self-tapping, you must drill a pilot hole using a hammer drill and carbide bit. The screw then cuts threads into that hole.
-
2
Q: What drill bit size do I need?
A: For M6 (1/4") screws, use 5.0–5.5mm bit. For M8 (5/16"), use 6.5mm bit. For M10 (3/8"), use 8.5mm bit.
-
3
Q: Can concrete screws be removed?
A: Yes—one of the biggest advantages. Sinsun concrete screws can be unscrewed and removed completely, and can even be reused multiple times.
-
4
Q: How much weight can a concrete screw hold?
A: In C20/25 concrete, an M8 screw with proper embedment typically holds 400–500 kg in tension. There are three factors that determine the load capacity of concrete: concrete strength, embedment depth, and quality of installation.
-
5
Q: Are wedge anchors better than concrete screws?
A: Concrete screws are better for light to medium-duty jobs where speed and ease of removal are important. Wedge anchors may be required for heavy industrial loads.
-
6
Q: Can I use concrete screws on bricks or blocks?
A: Yes. Sinsun concrete screws work in solid brick, hollow block (if they are properly engaged), and natural stone.
-
7
Q: Can you use concrete screws on concrete that is already cracked?
A: Yes. When installed correctly, ETA-approved Sinsun screws can be used on cracked concrete.
-
8
Q: How much torque should I use to install it?
A: Stop driving when the head touches the fixture. Too much torque can strip the threads in concrete. Maximum torque: M6 – 12 Nm, M8 – 40 Nm, M10 – 60 Nm.
-
9
Q: Can I get samples before I buy a lot?
A: Yes, of course. Sinsun gives away free samples (you pay for shipping) so you can try them out in your own application before you buy a lot of them.
-
10
Q: How many items do you need to order?
A: The minimum order quantity (MOQ) for stock sizes is 100 pieces. For custom orders, the minimum order quantity is 10,000 pieces. For more information, please contact sales.
