Wood-to-Metal self drilling
wood screws with Wings

Drill & Fasten in One Step. Eliminate Pre-Drilling Forever.

Conquer Steel, Wood, and Composite. Unmatched Versatility.

Rust-Resistant Grip for Lasting Outdoor Structures. Built Tough.

Sinsun Self-Drilling Wood Screws | No Pre-Drilling for Steel & Timber | Save 50% Time

Drill & fasten in one step with Sinsun Self-Drilling Wood Screws. Perfect for steel-to-wood framing, decks & fencing. High strength, corrosion resistant. Request a quote or free sample today.

Get a Quick Qoute

Sinsun wood to metal self drilling screws: The Ultimate Fastener for Metal-to-Wood Connections

Stainless Steel Hex Head self drilling screw

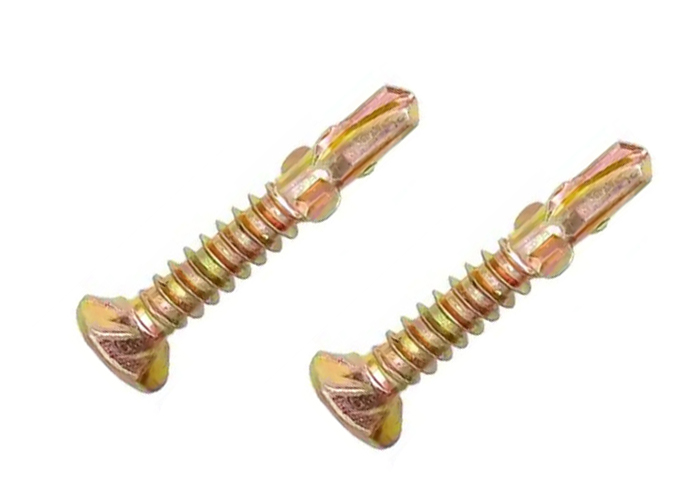

Wood-to-Metal self drilling wood screws with Wings

Don't waste time and tools on drilling and fastening steps that are separate. In one smooth motion, Sinsun self-drilling wood screws drill through thin to medium gauge steel, aluminum, or hard composite materials and securely tap into the wood below.

This screw is the best choice for contractors and builders who are working on steel-framed wood decks, metal roofing, or wall girts to wood frames, fence posts with metal brackets, and warehouse mezzanine flooring.In addition, it reduces the number of times tools need to be changed, and ensures that everything is aligned perfectly from the beginning for stronger, more reliable connections.

Get a Quick Qoute

Advantages and solutions to pain points

Drilling and fastening in one step

The integrated TEK drill tip can penetrate thin steel plates, aluminium and other metals without the need for pilot holes. This eliminates the need for an entire process step, reducing installation time by up to 50% and removing the requirement to switch between multiple drill bits.
Wood-to-metal by our wing design

Wood-to-metal connections are revolutionized by our wing design, which provides precision alignment and strong grip. When driving into metal, the wings create a clean, precise hole. Upon entering wood, the wings automatically fracture to allow the sharp threads to bite deeply into the wood. This provides unbeatable pull-out and shear strength, preventing wobble and ensuring a rock-solid fastening.
Engineered for Demanding Environments

These screws are crafted from high-quality quenched steel and are available with an optional Sinsun rust-proof coating or in stainless steel (304/316). As a result, your structural connections will remain strong and aesthetically pleasing, reducing the need for rework due to rust or breakage. These screws can withstand weather erosion, chemical corrosion, and decay in pressure-treated wood.

Convenient Drive Design for Versatile Applications

Select the appropriate drive head based on your workflow.

01

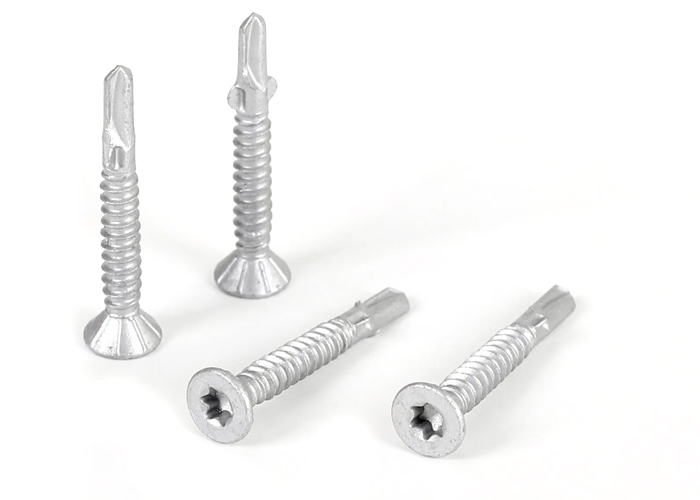

Torx drive: Delivering exceptional bit engagement and near-zero slip during high-torque transmission, it reduces fatigue during extended use and prevents nut stripping.
02

The hex washer head delivers reliable grip for high-torque applications, even when screwdriver bits are worn or in confined spaces. The integrated washer distributes clamping force evenly.
03

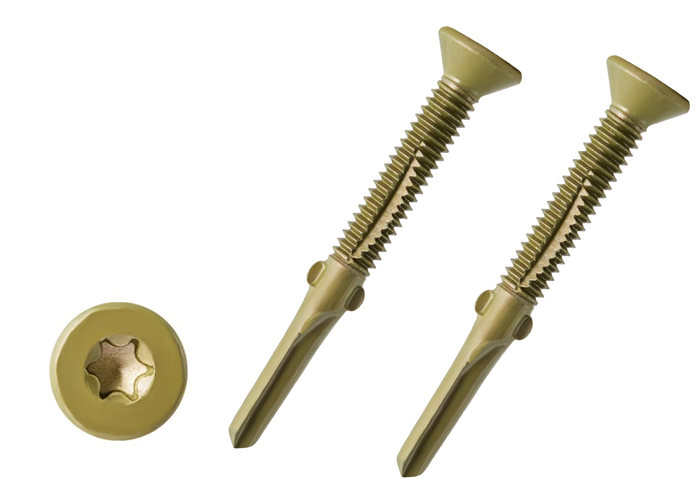

Ribbed Flat Head: Has ribs beneath the head that provide countersinking during final tightening.This prevents slippage and ensures a clean, secure finish.

Sinsun structural timber screws: Technical Specifications Table

Category	Specification
Product Type	Self-Drilling Wood-to-Metal Screw with Breakaway Wings
Primary Function	To drill, tap, and fasten wood to metal substrates in a single operation without pre-drilling.
Material	High Carbon Steel: Case hardened, Grade 1022 or equivalent.
Material	Stainless Steel: Austenitic Grade A2-304 or A4-316 for superior corrosion resistance.
Finish / Coating	SinsunShield ZYP: Zinc-Yellow Chromate Plating (Base option).
	Hot-Dip Galvanized: For enhanced outdoor durability.
	Plain / Passivated: For stainless steel options.
Drive Types	Torx T30: Recommended for high-torque applications and reduced cam-out.
	Hex Washer Head #3: Provides positive grip with an integrated load-distributing washer.
	Flat Head (Countersunk) with Ribs: Designed to sit flush; ribs under the head aid in countersinking and prevent driver bit slippage.
Point & Thread Design	Drill Point: Type TEK (Self-Drilling Point) for penetrating metal.

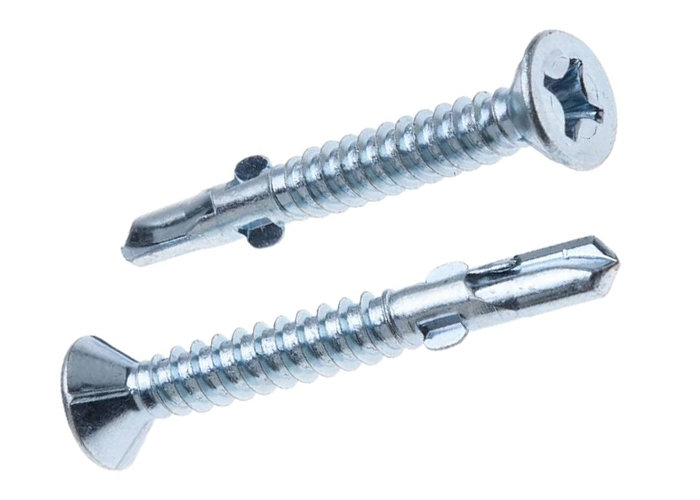

	Wings: Located directly behind the drill point. They ream a clean hole in the metal and break off upon entering the wood, ensuring full thread engagement for maximum pull-out strength.
	Thread: Aggressive, coarse wood thread design for fast driving and high holding power in lumber, LVL, and plywood.
Drill Capacity	Capable of drilling through and fastening to:
	• Mild Steel: Up to 12 Gauge (2.7 mm / 0.109 in).
	• Aluminum: Up to 1/8 in (3.2 mm).
Standards & Compliance	Manufactured to meet or exceed relevant industry specifications for mechanical properties and dimensions. Common references include SAE J78, ASTM A153 (for coating), and DIN 7504 (for self-drilling performance).
Key Performance Feature	Breakaway Wing Design: Ensures a tight, slop-free fit by creating a precise hole in the metal, leading to superior shear strength and vibration resistance in the final wood-to-metal joint.

The One-Pass Powerhouse: Teks Self Drilling Screws Wood to Metal, Built for Speed & Flawless Finish.

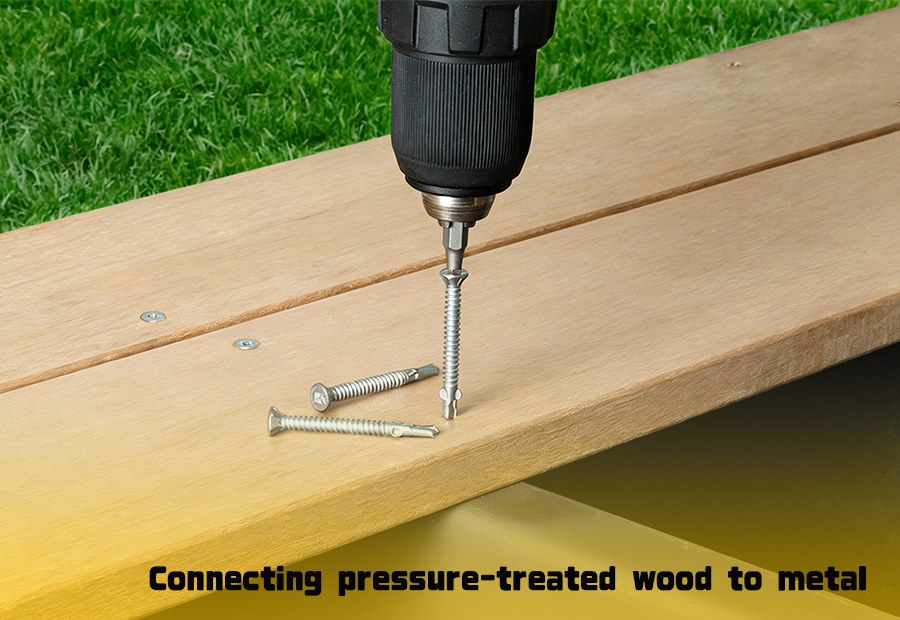

Connecting Pressure-Treated Wood to Metal

When using large pieces of wood (such as 6x6 posts and beams) to build outdoor wooden structures, it is essential to make strong, flush connections. These screws are designed for framing heavy wood. Drill points can handle materials with high densities, and the wing design keeps screw heads flush with surfaces. This structure is weather-resistant and retains its shape by preventing wood fibers from being crushed.

Strength and Efficiency: A single 3/8" x 7" wing screw can withstand more than 1,800 pounds of shear strength. Installers can connect the main columns to the beams in less than five minutes using just an impact wrench. Traditional through-hole bolting, on the other hand, takes more than 15 minutes to drill, insert the bolts, and tighten them with a wrench.

Get a Quick Qoute

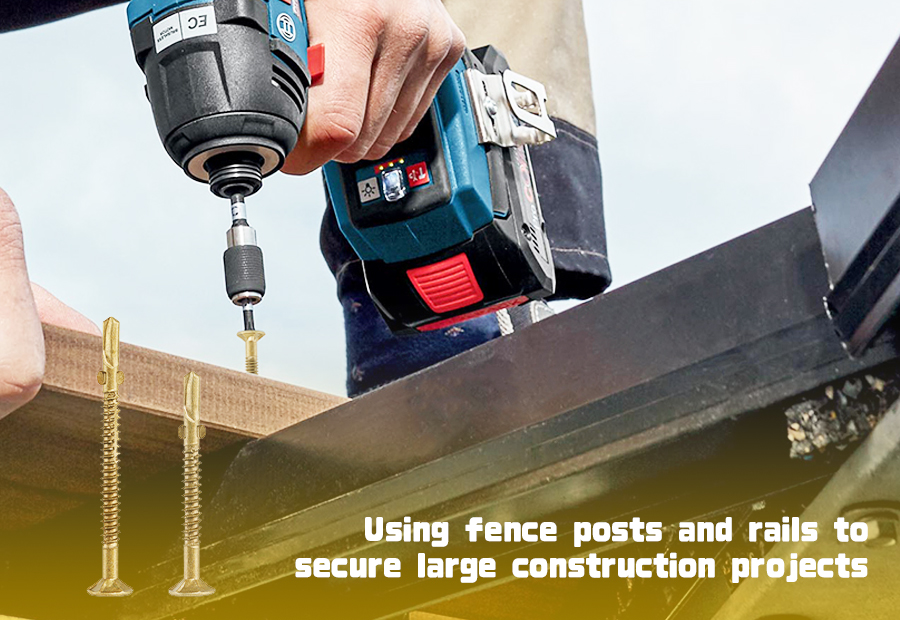

Using Fence Posts and Rails to Secure Large Construction Projects

When constructing long sections of privacy fencing, it is necessary to repeatedly secure horizontal rails (2x4 size) to vertical posts (4x4 size). Self-drilling tips can penetrate the rail precisely and drive deep into the dense post to prevent cracking.

Countersunk wings play a critical role here. Creating a wider hole in the rail allows the screw shaft to pass through without creating wedging pressure. This prevents rail splitting and ultimately achieves a screw head that is completely flush with the surface.

Efficiency data: Two men can complete a 50-foot fence section in under two hours.It takes over three hours to use standard screws that require separate countersink bits and careful drilling to prevent beam ends from splitting.

Get a Quick Qoute

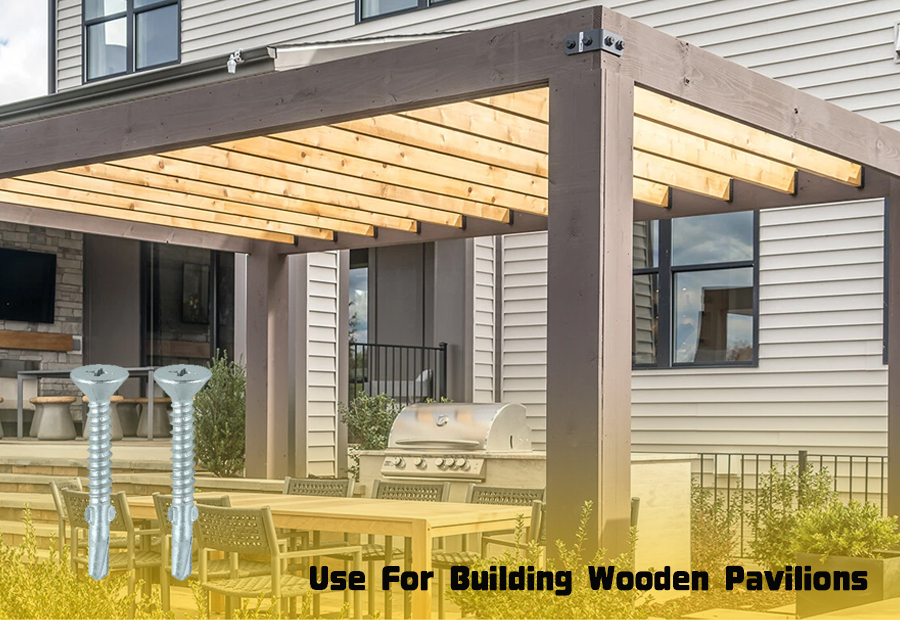

Use For Building Wooden Pavilions

Get a Quick Qoute

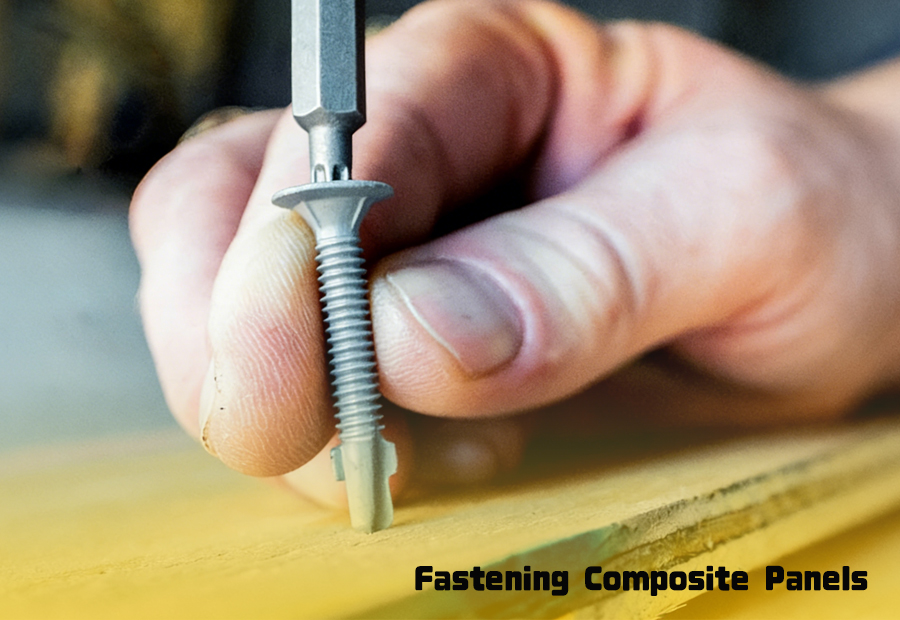

Fastening Composite Panels

Modern exterior wall panels and decorative materials, such as fibre cement boards and engineered composite panels, are expensive and fragile. They require precise handling during installation to prevent cracking. TEK Pointed-Tip Screws address this challenge thanks to their controlled drilling capability and wing-pre-countersunk design. The wings create slightly oversized, flush holes in the panel to accommodate material expansion and contraction, thereby eliminating cracking pressure.

Quality and Cost Control: Using these screws reduces installation-related material waste (e.g. cracked panels) by over 5% on projects. For a $10,000 wall panel project, this saves $500 in material costs. This figure does not include the labour time saved by avoiding the replacement of damaged components.

Get a Quick Qoute

Trusted by Professionals

During the renovation of our warehouse, we used Xinshun self-drilling wood screws with flanges to secure plywood sheathing to steel purlins. The self-drilling capability and flange design completely transformed the construction process: no pre-drilling was required and each screw aligned and gripped precisely. Installation efficiency increased by almost 50%, and workers no longer have to deal with misaligned holes. Wood-to-metal connections are now both quick and secure.

As a manufacturer of internal wooden structures for trailers and containers, we have tested many different types of screw. Sinsun's winged, self-drilling wood screws have proven to be the most reliable. The self-drilling tip easily penetrates 14-gauge steel, and the wing countersinks before entering the wood to ensure that every screw is seated perfectly, with no crooked or loose fasteners. The strength of this wood-to-metal connection is impressive.

For installing wooden display shelves onto metal columns in a large retail store, we opted for Sinsun self-drilling screws. The winged design of the screws allows them to grip the wood effectively after penetrating the metal, eliminating any wobble. Compared to traditional methods of pre-drilling holes before screwing, the difference in efficiency is like night and day. As a result of the clean appearance and secure hold of the finished product, our client was highly satisfied.

Sinsun self drilling wood to metal screws: Your Top Questions Answered

Here are some of the most frequently asked questions from contractors and DIYers about our Self-Drilling (TEK) Wood Screws with Wings, answered with straight facts.

Q1: If it drills itself, do I really not need to drill it first?

A: For more than 95% of common uses, there is no need to pre-drill. The engineered drill point can drill through wood and even thin steel, such as joist hanger tabs) on its own. The only time you should not do this is when you're driving the screw very close to the end grain of a hardwood board. If this is the case, it is best to drill a small pilot hole first to avoid splitting the wood.
Q2: What are the “wings” actually for? Do they stay in the hole?

A: Countersinking cutters are used for the "wings". They perform two critical jobs before the screw threads engage: They bore a clearance hole in the top piece of wood, preventing the screw shank from acting as a wedge and splitting the material. They carve out a perfect recess for the screw head to sit flush or slightly below the surface. After the "wings" complete the countersink, they break off automatically, leaving them in the hole, undetected beneath the screw head. They remain in the hole, unseen beneath the screw head.
Q3: Are these just for speed, or do they actually make a stronger connection?

A: They are engineered for both superior speed and a stronger, more reliable connection. Speed: Eliminating separate drilling and countersinking steps can cut installation time per screw by over 60%.
Q4: What's the main difference between these and regular "self-tapping" wood screws?

A: This is a very important difference. These screws all have self-tapping threads, which means they cut their own threads. Standard self-tapping screws have a sharp point that can go into wood. They still need a pilot hole a lot of the time to keep them from splitting, especially in hardwoods or near edges. Sinsun Self-Drilling (TEK) Screws with Wings: Have a real drill bit tip that aggressively bores its own starting hole. With the wings, they can drill, countersink, and fasten all at once, with better split prevention. They are the best choice for tough or high-volume work.
Q5: What torque setting should I use with my regular impact driver?

A: Yes, a regular cordless impact driver is the best tool for the job. Set it to the highest "fastening" or torque setting, not the drill setting. The design is great because the tool can use full power, the wings will control the depth of the countersink, and the clutch will stop it from going too far. This takes the guesswork out of it and makes sure the results are always the same.
Q6: Are they worth the money, or do you just pay more for the convenience?

A: They are a good investment that lowers the total cost of the project. The cost per screw is higher than that of a basic screw, but you need to figure out the real installed cost: Removes the costs and wear and tear on drill bits and countersink bits. Cuts down on labor time by a lot. Almost completely gets rid of expensive material waste from split boards. For any professional project or serious DIY build, the small increase in the cost of the product up front is worth it because it saves you money on labor and materials.
Q7: What kinds of materials and places do they work best in?

A: They are the best choice for: Materials: Pressure-treated lumber, hardwoods, engineered lumber (LVL), and thin gauge steel (like brackets and hangers) when attaching wood to steel. Important Uses: Deck framing (ledger boards, joist hangers), building with wood, putting up fences, and any other use where a flush finish and split prevention are needed. Choose the right corrosion coating for the job, such as our SS-Protect coating, for outdoor, ground-contact, or high-humidity use to make sure it lasts for decades.

Ready to Transform Your Workflow with sinsun self drilling timber screws?

Don't let pre-drilling slow down your projects and eat into your profits. Experience the speed, strength, and simplicity of a true one-step fastening system.

Request a Free Sample Kit

Test them on your specific materials.

Speak to a Fastening Specialist

Discuss your project for tailored recommendations.

Get a Competitive Bulk Quote

Optimize your project cost.

Have a specific application question?

Contact our engineering support team attech info@hbsinsun.com.
