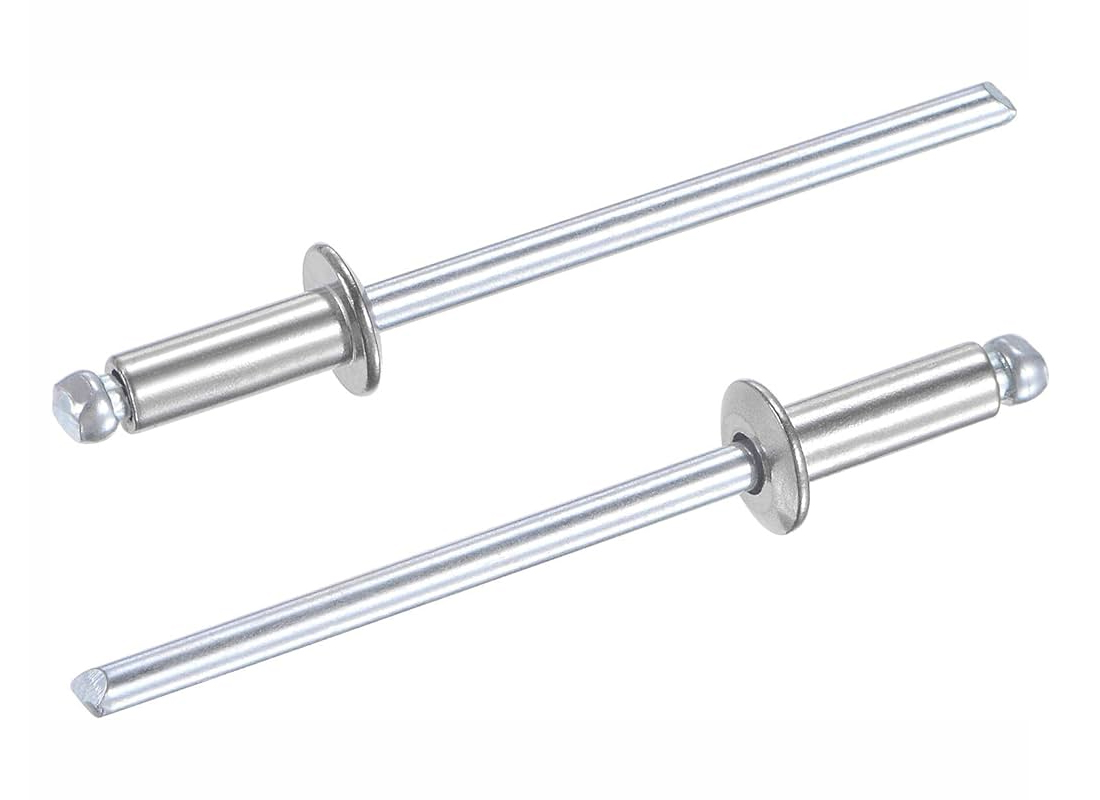

Blind Rivets: A Strong Hold, From One Side Only.
Pop & Go! Fast, Vibration-Proof Connections.
Your Shortcut to a Professional Finish. No Backside Access Needed.
01
Your Vision, Secured: Sinsun as Your Global Blind Rivet Supplier
As a leading innovator and global manufacturer, Sinsun provides a comprehensive range of high-strength blind rivets for every industry. Engineered for fast, reliable, and vibration-resistant installations from one side, our solutions ensure structural integrity and efficiency in automotive, construction, and manufacturing applications worldwide.
Get a Quick Qoute
stainless steel pop rivets
● Designed to work perfectly with all manual and pneumatic staple guns. Sinsun staples are made from hardened steel wire that has been shaped with great care to keep them from getting stuck and to make sure they drive to the same depth every time. Their sharp points easily cut through tough materials, so they are a good choice for professional use in large quantities.

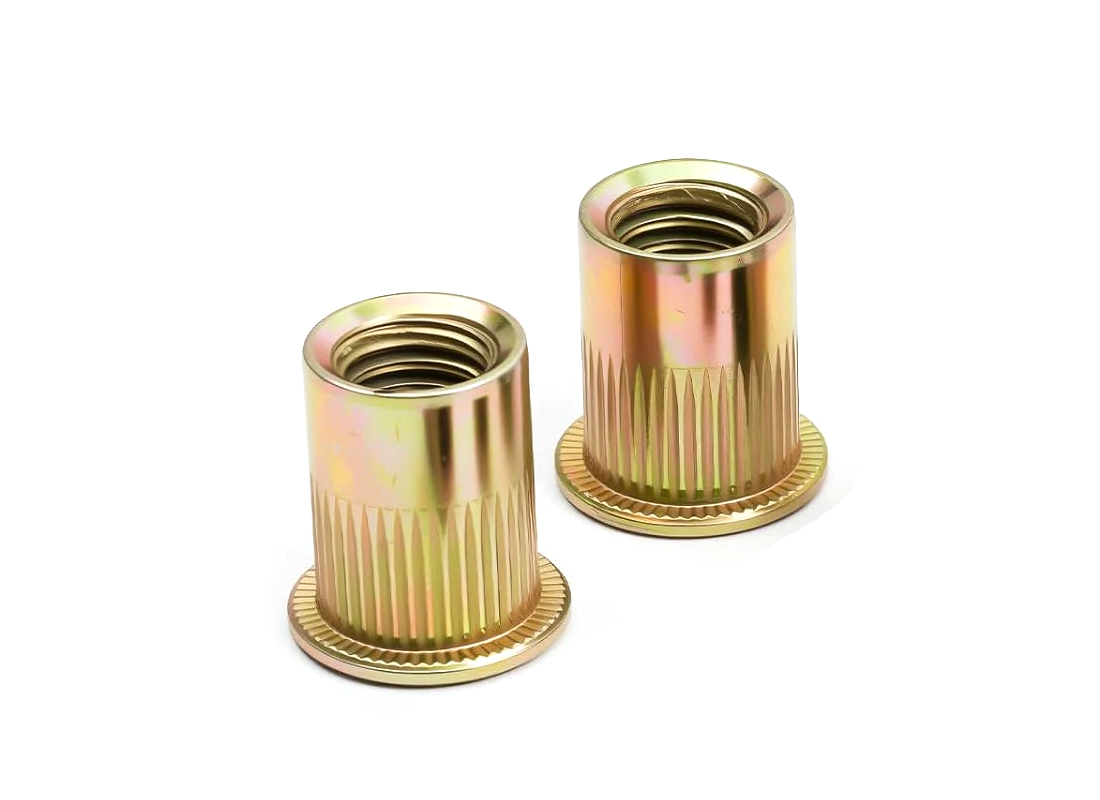

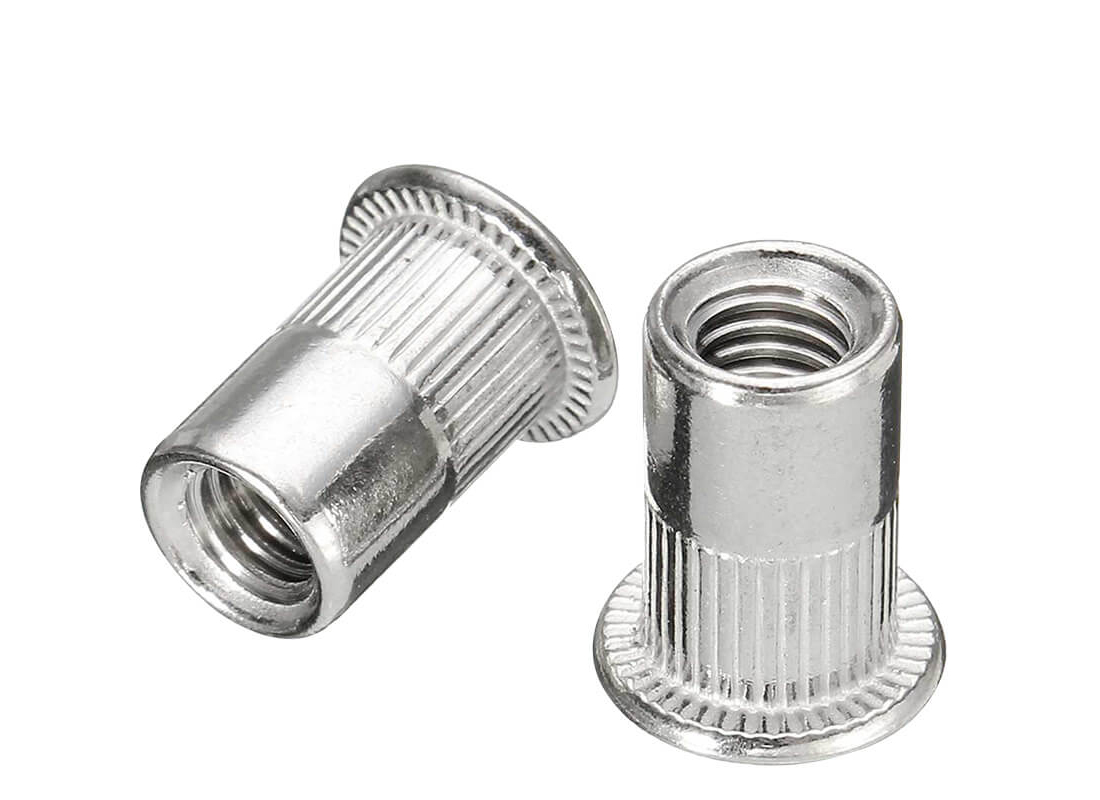

stainless steel rivet nuts
● Most of the time, these rivet nuts come with threads that range from M3 to M10. They are made of 304 stainless steel and can pull out more than 1000 pounds when the material is the right thickness. They are designed to make a strong threaded insert for panels only 0.8 mm thick.In addition to containing knurling, the body can withstand more than 15 Nm of torque, preventing the bolt from spinning out.

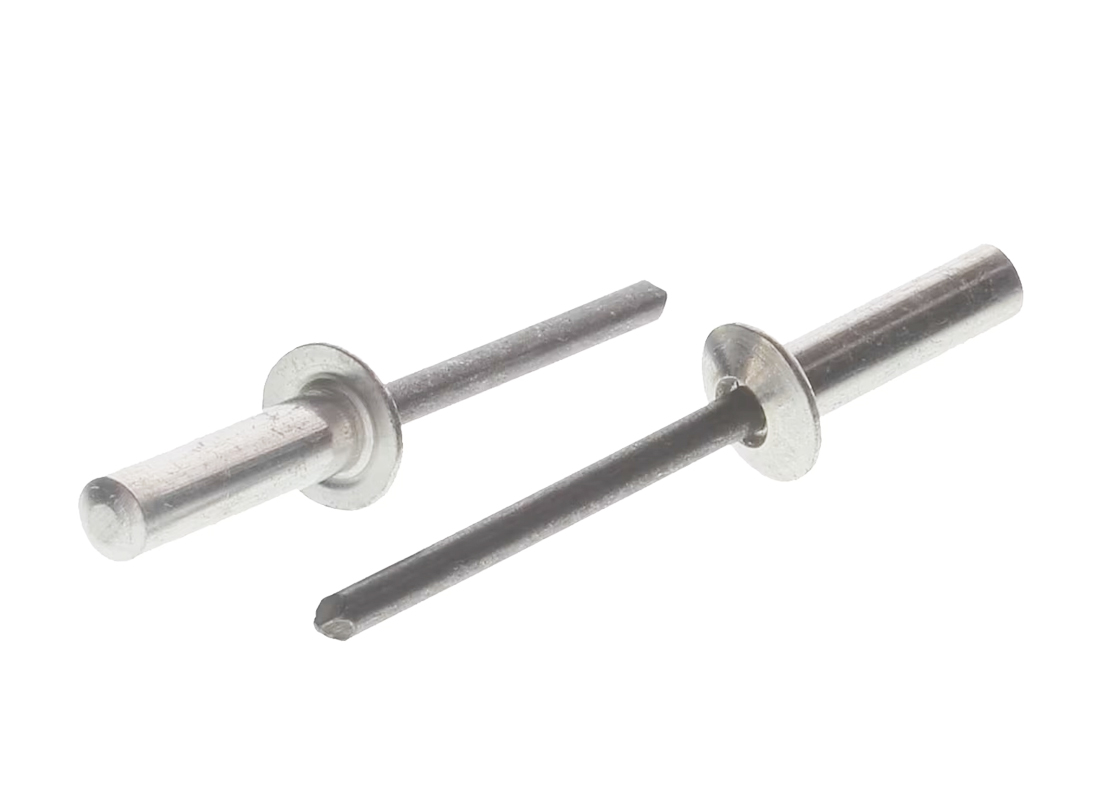

aluminium rivets
● Aluminum rivets from Sinsun are made from 1100 or 5056 alloy and have a high strength-to-weight ratio. The 5056 alloy has about 20% more shear strength than regular aluminum. They are light, with a single 3/32" rivet weighing about 0.1 grams. These rivets are great for holding together stacks of material that are between 0.3 mm and 5 mm thick without adding a lot of weight.

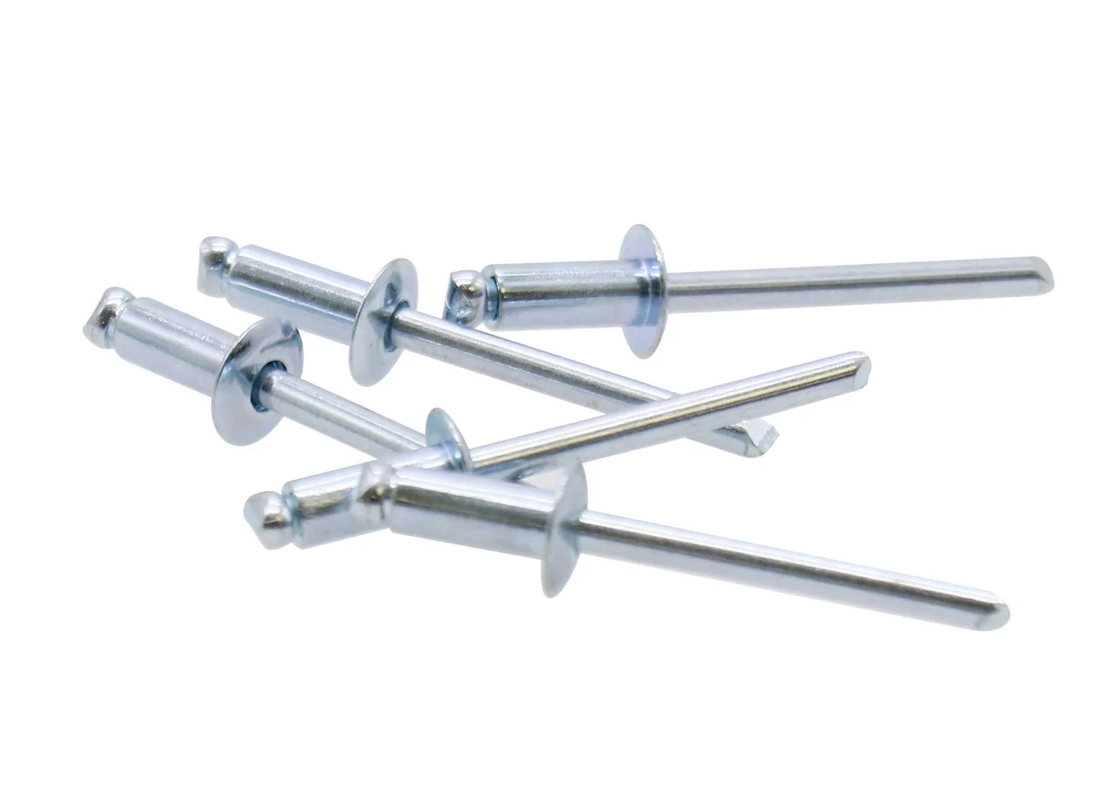

steel rivets
● Sinsun steel rivets are usually made of carbon steel and coated in zinc to keep them from rusting. They have a lot of shear strength, with a 1/8" diameter rivet often being able to hold more than 600 lbs. The zinc plating is 5 to 8 microns thick and protects against rust at a basic level. The rivets can be used to join structural materials up to 8 mm thick indoors or in protected environments.

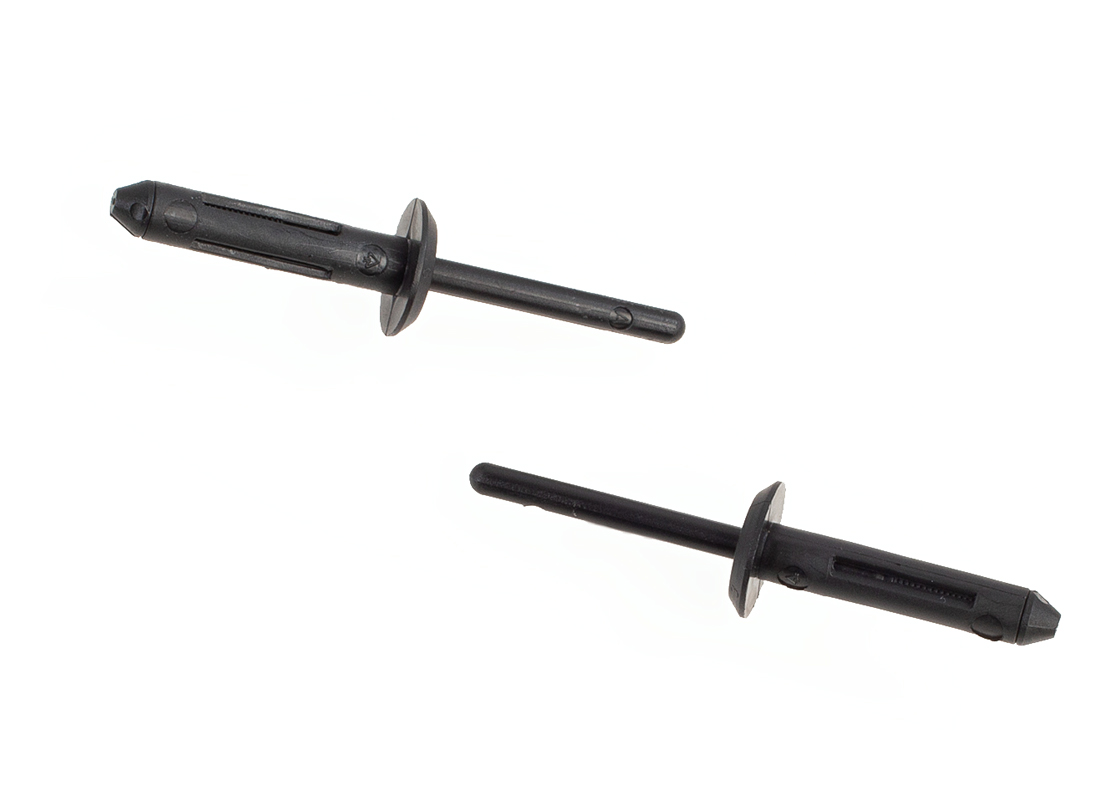

Black rivets
● The black oxide coating on sinsun black rivets adds about 0.5 to 1.5 microns to the rivet's size. This coating doesn't protect against corrosion very well; it can only last up to 96 hours in a neutral salt spray test. They come in the same standard sizes (3/32" to 3/16") and grip ranges as their plain versions. This finish is perfect for things that need a matte black look and basic protection.

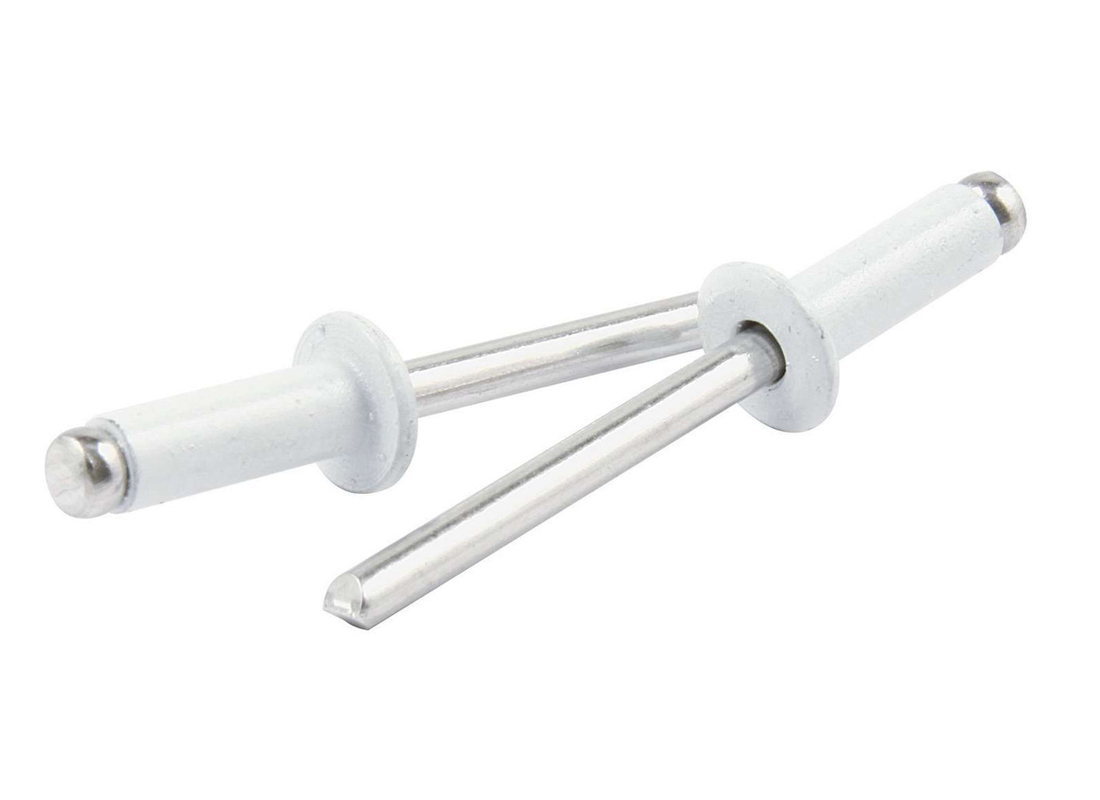

white rivets
● They are finished with white polyester powder coats that are between 30 and 50 microns thick. This coating is very resistant to UV rays and keeps its color stable for more than 500 hours in accelerated weathering tests. In addition to protecting against rust, the layer also makes them suitable for indoor and outdoor use.The use of these products is common in appliances, panels, and architectural elements that require a certain color match.
010203
Rivet Diameter |
Rivet Length |
Material Thickness (Grip Range) |
Common Material Combinations |
3/32" (2.4mm) |
1/8" - 1/2" |
0.020" - 3/16" |
Sheet Metal, Plastic, Electronics |
1/8" (3.2mm) |
1/4" - 3/4" |
1/16" - 1/4" |
General Fabrication, Aluminum Panels |
5/32" (4.0mm) |
1/4" - 1" |
1/16" - 3/8" |
Structural Parts, Truck Bodies |
3/16" (4.8mm) |
3/8" - 1" |
1/4" - 1/2" |
Heavy-Duty Machinery, Steel Framing |
How to Use This Chart:
Determine Material Thickness: Measure the total thickness of the sheets you are fastening.
Select Diameter: Choose a rivet diameter suitable for the application's strength requirements.
Check Grip Range: Ensure your material thickness falls within the rivet length's specified grip range for a secure joint.

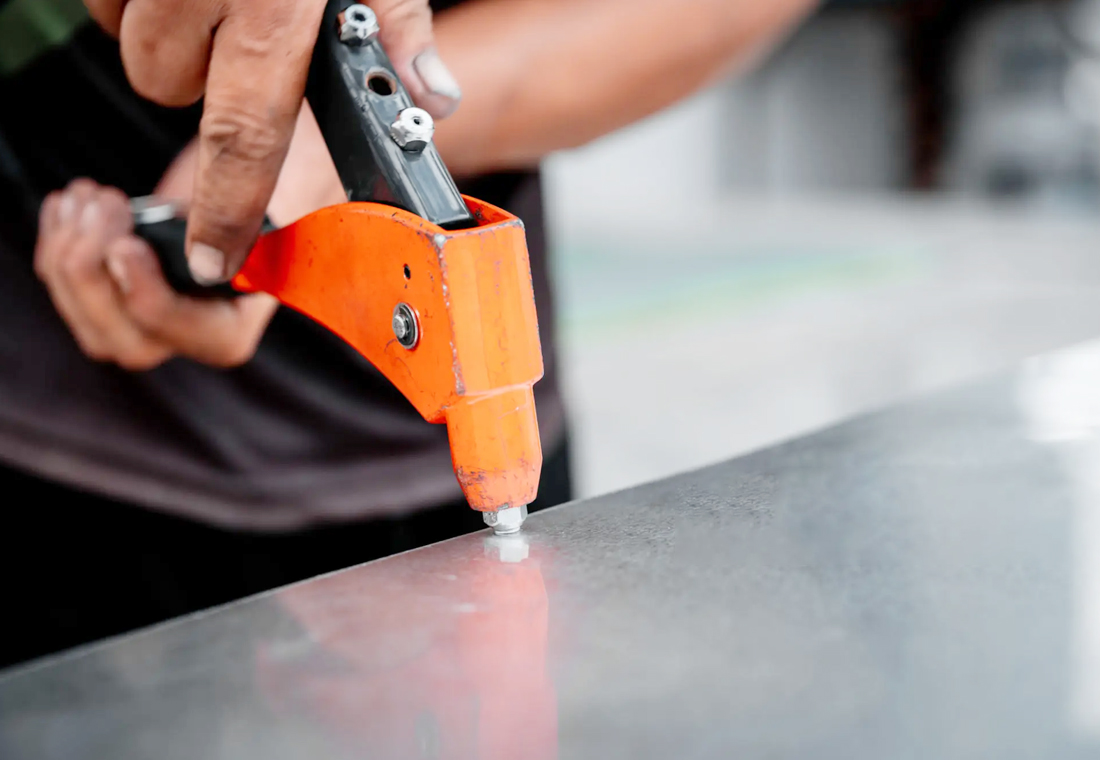

Rivets for Metal
● Sinsun metal rivets are high-strength, with shear strengths typically between 500 and 1200 pounds, depending on their diameter. They are usually made of steel or stainless steel and can withstand the stresses of connecting sheet metal, aluminum frames, or steel supports. Because of their unique design, they prevent loosening under vibration.Materials such as these are essential to the manufacture of HVAC, mechanical, and structural metal components.

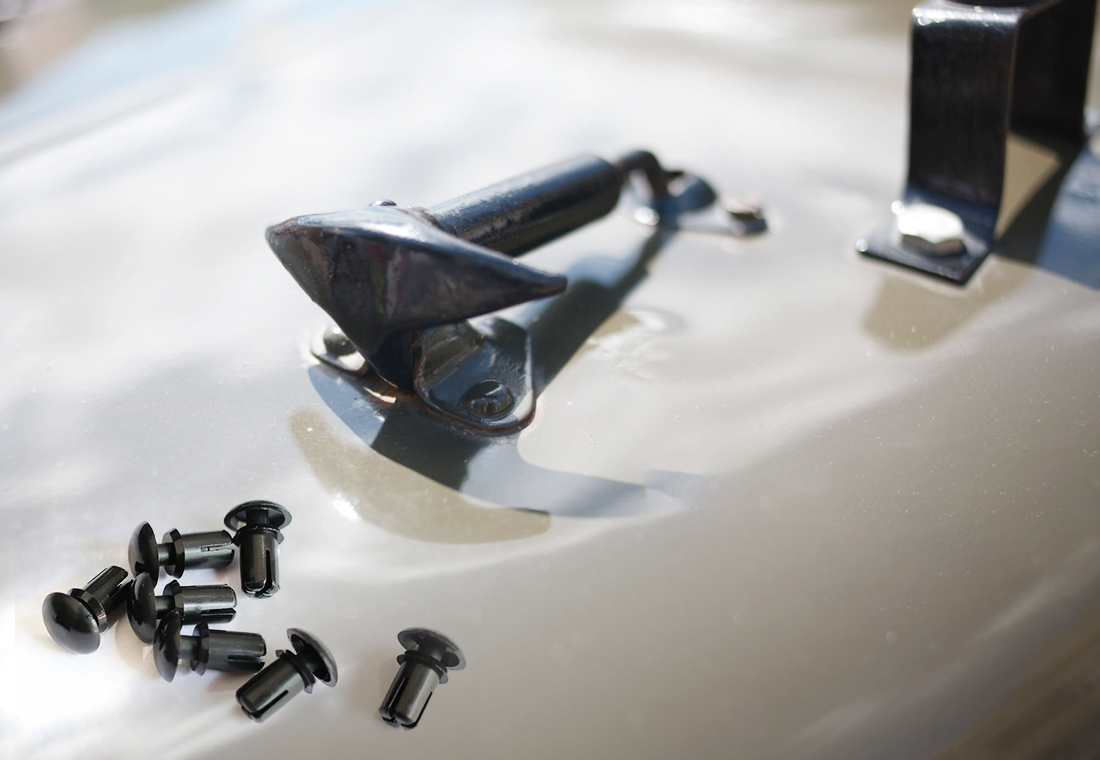

Rivets for Plastic
● The rivets have been designed to avoid causing cracks or stress damage to plastic components during fastening. The use of a lower setting force and wider head distribution prevents deformation of the material. Aluminum or plastic are softer materials that are ideal for securing panels in electronics, automotive interiors, and consumer appliances where soft materials are used.

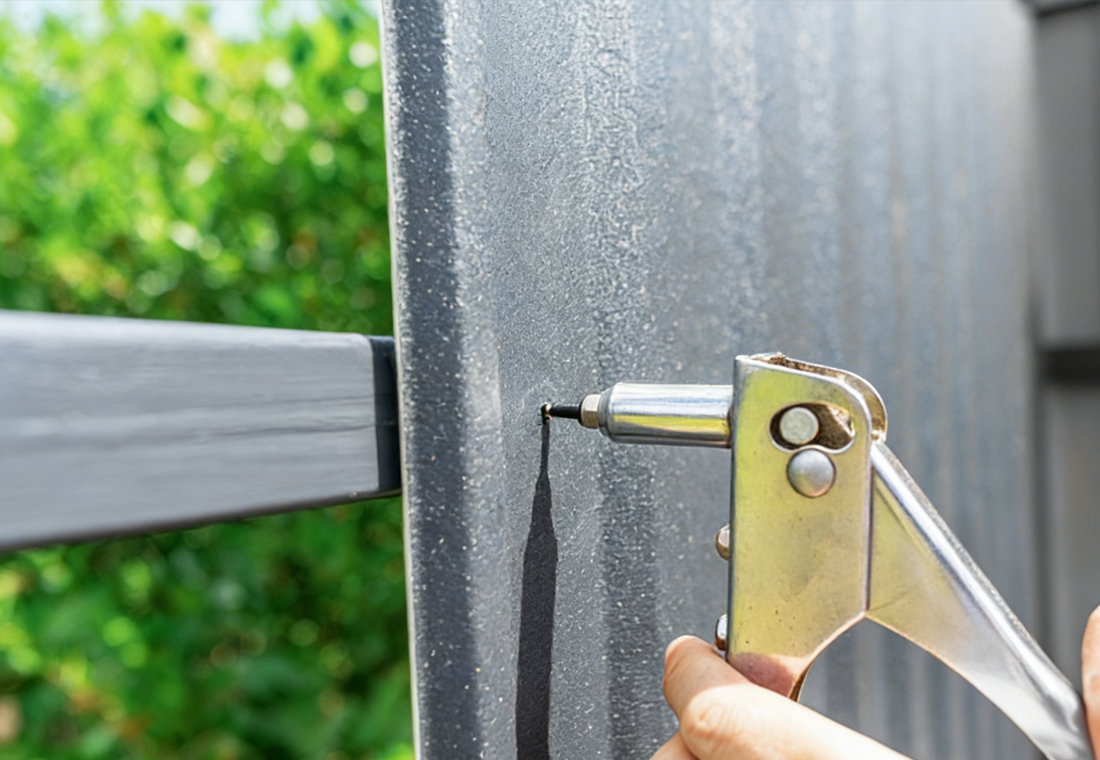

Metal Rivets for Steel
● Rivets are made of high-strength carbon steel or stainless steel and they connect steel parts. They can hold more than 700 pounds of shear strength for a size of 1/8", making a joint that is as strong as a weld in many cases. It is very important to have a strong clamp for structural frames, equipment guards, and storage units in order to ensure the integrity of the joints.

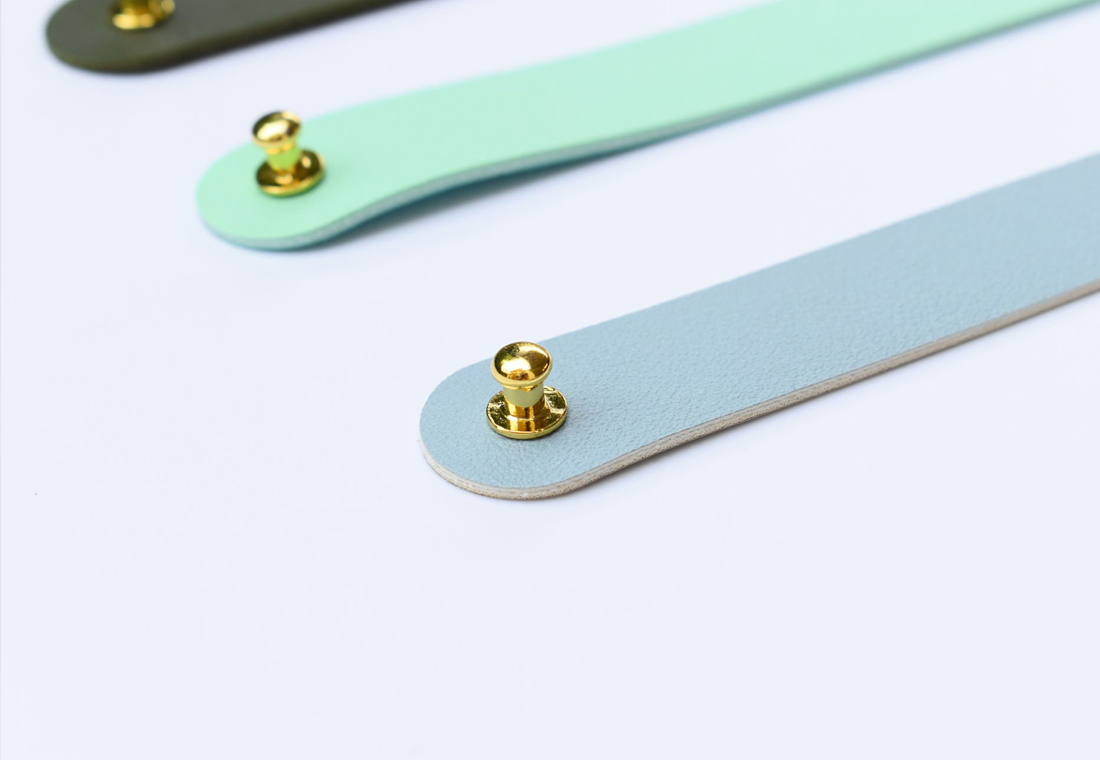

Brass Rivets for Leather
● These rivets are made of soft brass to keep tools from getting damaged or tarnished. They are used for leatherworking. They have smooth, rounded domes that are attractive and comfortable. Unlike other metal alloys, copper alloys will not rust and stain leather over time. They are used to decorate belts, bags, saddles, and shoes and to strengthen stressed areas.

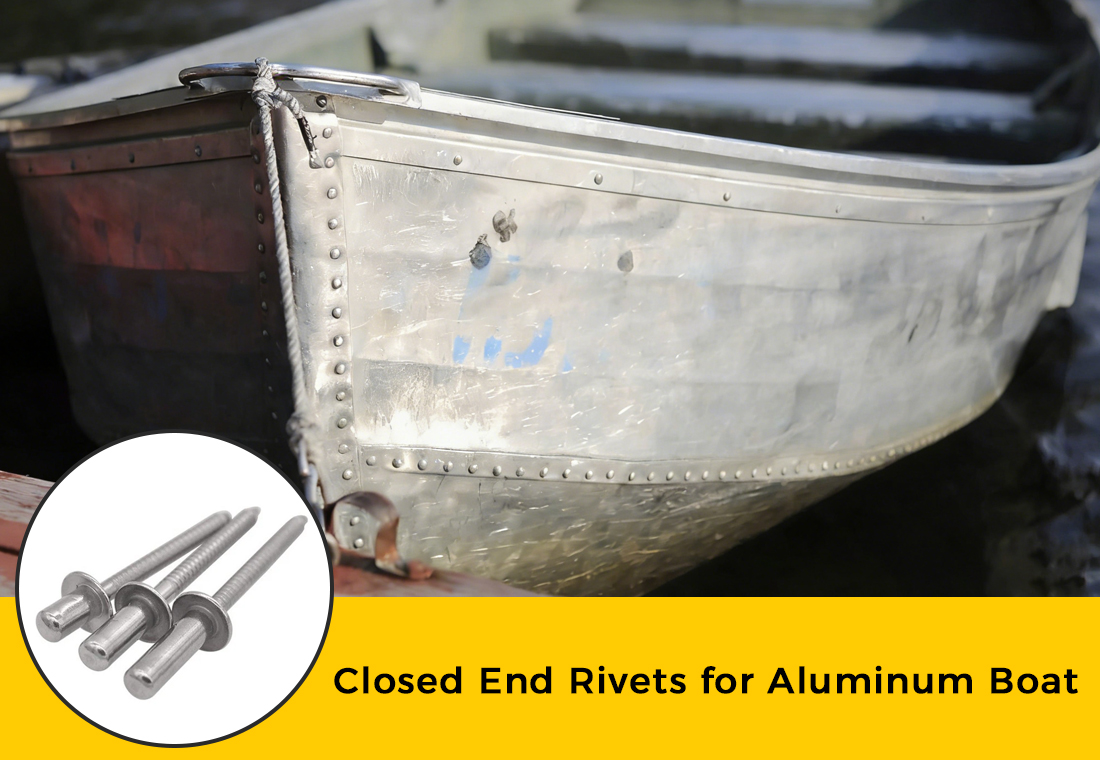

Closed End Rivets for Aluminum Boat
● These sealed rivets are made of aluminum or stainless steel to match boat hulls. Using the closed-end design, the mandrel head is completely sealed inside, preventing water from getting inside. For aluminum boats, pontoons, or decks, they are crucial to install accessories that prevent water from infiltrating and leading to corrosion or leaks.
Waterproof Rivets for Boats
● These are specialty fasteners with an integrated EPDM or neoprene washer that compresses to form a watertight seal. They are made from marine-grade stainless steel that resists saltwater corrosion. With a typical waterproof pressure rating of 10-15 PSI, they are used to secure hatches, cleats, and rub rails on fiberglass, aluminum, and wooden boats.
Easy installation for a secure connection
Sinsun pop rivets feature a sturdy, one-piece design for fast, permanent bonding of metal, plastic, and wood. Rust-proof coatings suit indoor/outdoor use. Designed for quick installation, they’re a go-to choice.
STEP 1
Get the materials ready
Hold or clamp the pieces of work together. Mark the exact spot where you want the rivet to go.
STEP 2Drill the Hole
Use the right size drill bit to make a clean hole through all the layers of material. There shouldn't be any burrs in the hole, and it should be straight.
STEP 3Put the rivets in
Choose the right rivet size and grip range for your material thickness. You need to insert the rivet's mandrel into the nozzle of the rivet gun until it clicks. The rivet body should then be inserted completely into the hole that has already been drilled.
STEP 4Set the Rivet
Hold the rivet gun's handles tightly and consistently. You will hear and feel the mandrel break and snap. This means that the rivet is in place, making a strong blind fastening.
STEP 5Check the Joint
The rivet should fit tightly against the material, and the mandrel should have broken off cleanly. A properly set rivet makes a joint that is strong and won't shake.
01020304
Q: What is a blind nut, and how is it different from a normal nut?
+
A: A blind nut, also known as a rivet nut, is a one-piece fastener that makes a strong threaded insert in materials that are too thin to tap. You can install it from one side with a tool that pulls on the mandrel, which is not possible with a regular nut. This tool can be used to make strong threads on sheet metal, tubing, and hollow parts you cannot reach. With knurled bodies, Sinsun blind nuts offer more reliable installation because they don't spin.

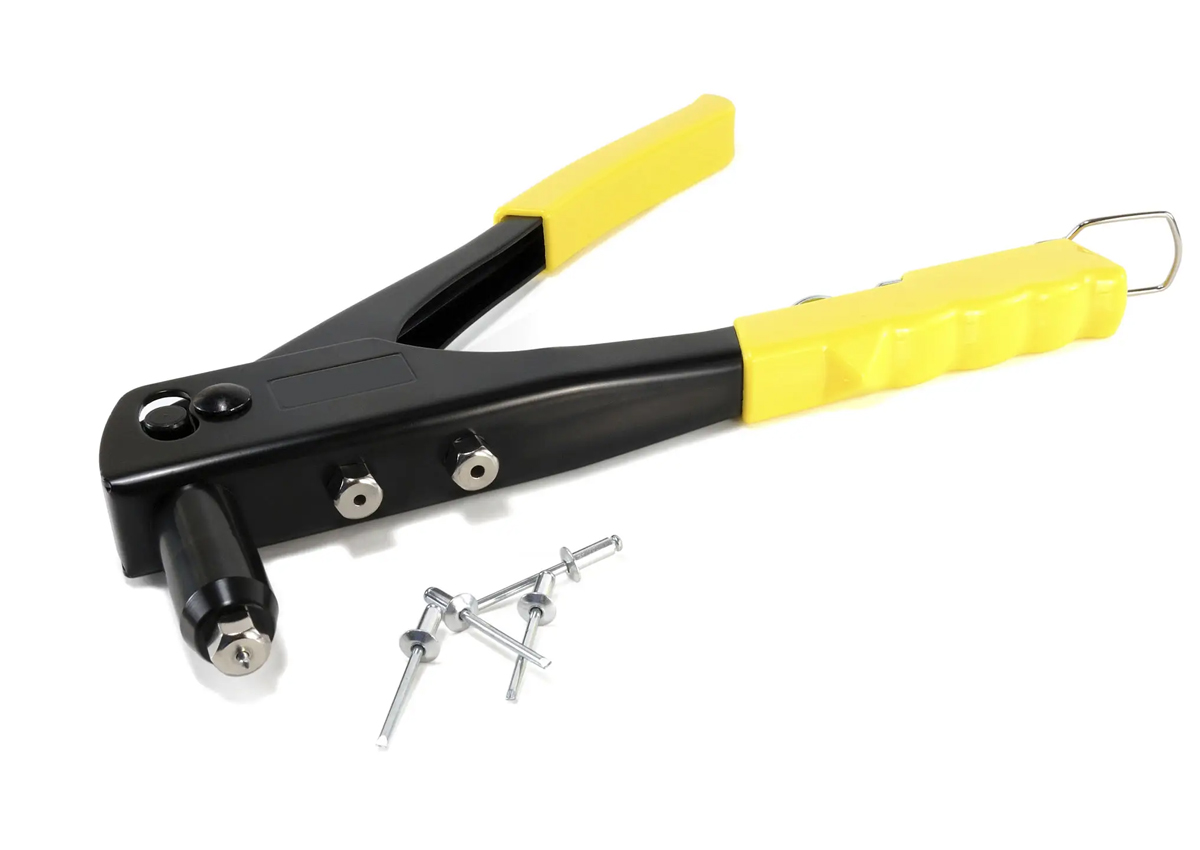

Q: I'm new to this. What should I look for in tools for pop rivets?
+
A: First, think about the size of your project. A standard hand riveter is good for doing small jobs around the house. If you do a lot of work or work with heavy materials like steel or big rivets, look for a heavy-duty model with a geared mechanism to give you more leverage. A swivel nose is very useful in tight spaces. Professionals often use battery- or pneumatic-powered pop rivet tools because they are faster and don't make them as tired. Make sure that the nosepieces on the tool fit the rivet sizes you plan to use most often.
Q: What's the key to successfully installing rivet nuts without them spinning?
+
A: The key is preparation and the right product. The first thing you need to do is to ensure that your hole is the correct size. If it's too big, it will always spin. Second, use rivet nuts with a knurled or splined shank; the Sinsun versions have this feature to bite into the parent material. Finally, use the correct installation tool and stop pulling once you feel a solid resistance and the mandrel breaks. When the material is overtightened, it can lose its grip.
Q: Is buying bulk rivets a cost-effective option for my business?
+
A: you're absolutely right. If you purchase bulk rivets (such as by the case or drum) from a reputable supplier like Sinsun, you will significantly reduce the cost per unit. This is particularly important for manufacturing, construction, and repair shops that are used regularly. You will have the right rivet on hand at all times, which reduces downtime from reordering. Ensure you have proper storage to keep them organized and free from corrosion.
Q: Why is it imperative to choose the right rivet suppliers?
+
A: Choosing the right supplier is more than just changing the price. The quality of rivets from a reputable supplier like Sinsun is always consistent, so production delays and broken rivets are reduced. You'll receive accurate technical information, dependable lead times, and material certifications for critical projects. You can save time and money when you work with a reliable supplier who helps you choose the right fasteners.
Q: What kind of project would I need big rivets for? (3/16" in diameter and up)
+
A: You'd use big rivets for heavy-duty and structural work. You could use thick steel plates to make trailer frames, big brackets to attach to farm equipment, or industrial storage racks. These rivets can handle a lot of stress from both sides. You need a strong rivet tool to put them in place. This tool is often pneumatic or hydraulic because it needs a lot of force to set.

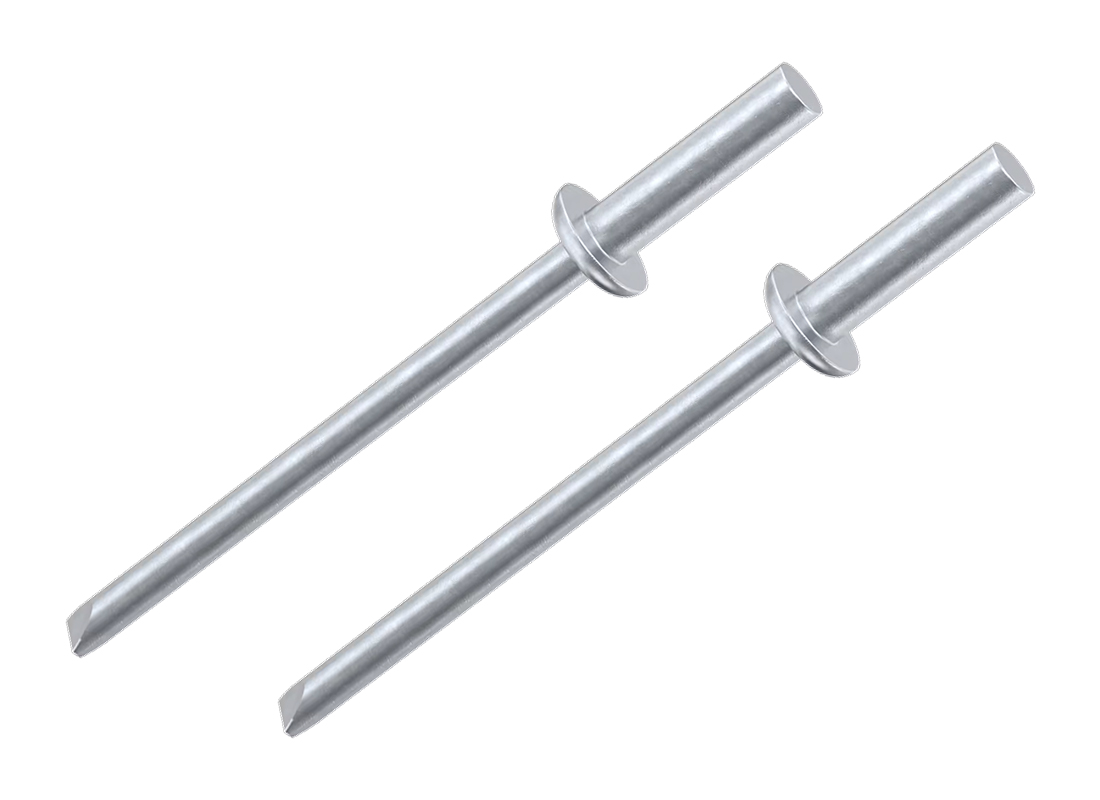

Q: What is the main benefit of sealed rivets?
+
A: The most beneficial thing about it is that it makes a sealed joint, which is what the name says. The mandrel head is locked into the rivet body via a mechanical device to prevent leakage. No matter what situations they are used in, they are effective at keeping air, gas, water, or dust out. People often use boat rivets to hold together the hulls of boats, the panels of cars, the enclosures for outdoor electronics, and the ductwork. They usually have certain IP (Ingress Protection) ratings.
Q:Can self-piercing rivets replace drill holes in some situations?
+
A: Self-piercing rivets make it easier to assemble components and connect two or more layers of ductile metal, such as aluminum or low-carbon steel. They pierce through the upper layer and spread downwards without the need for drilling, saving time. The fastest and most efficient way to create a hermetically tight connection is to do it this way. They are frequently used in the air conditioning and automotive industries. In order for the installation to be successful, suitable riveting tools should be used.
Q: I'm not sure what to look for in pop rivet tools
+
A: You should first think about how big your project is. A regular hand riveter is good for doing small jobs around the house. If you need to do a lot of work or work with steel or big rivets, look for a heavy-duty model with a downwardcwithout drilling. The swivel nose is great for getting into tight spaces. Professionals often use battery-powered or pneumatic tools because they are faster and less tiring. Make sure that the nosepieces on the tool fit the rivet sizes you plan to use the most.

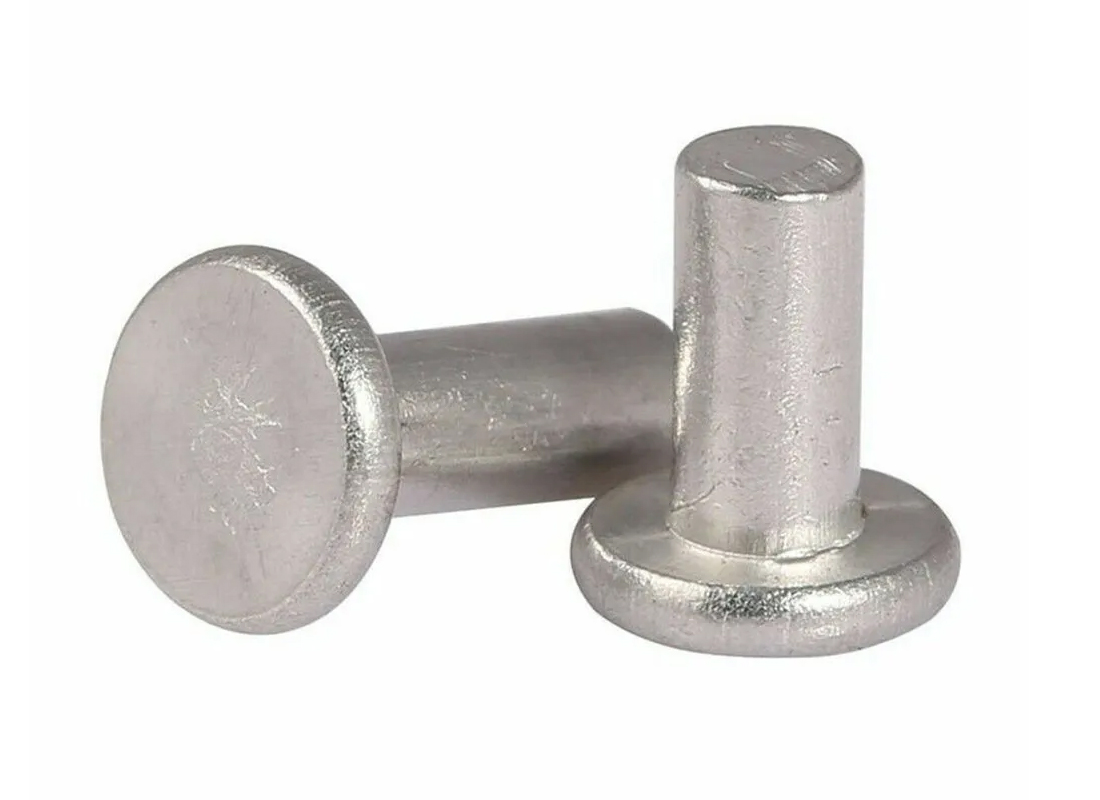

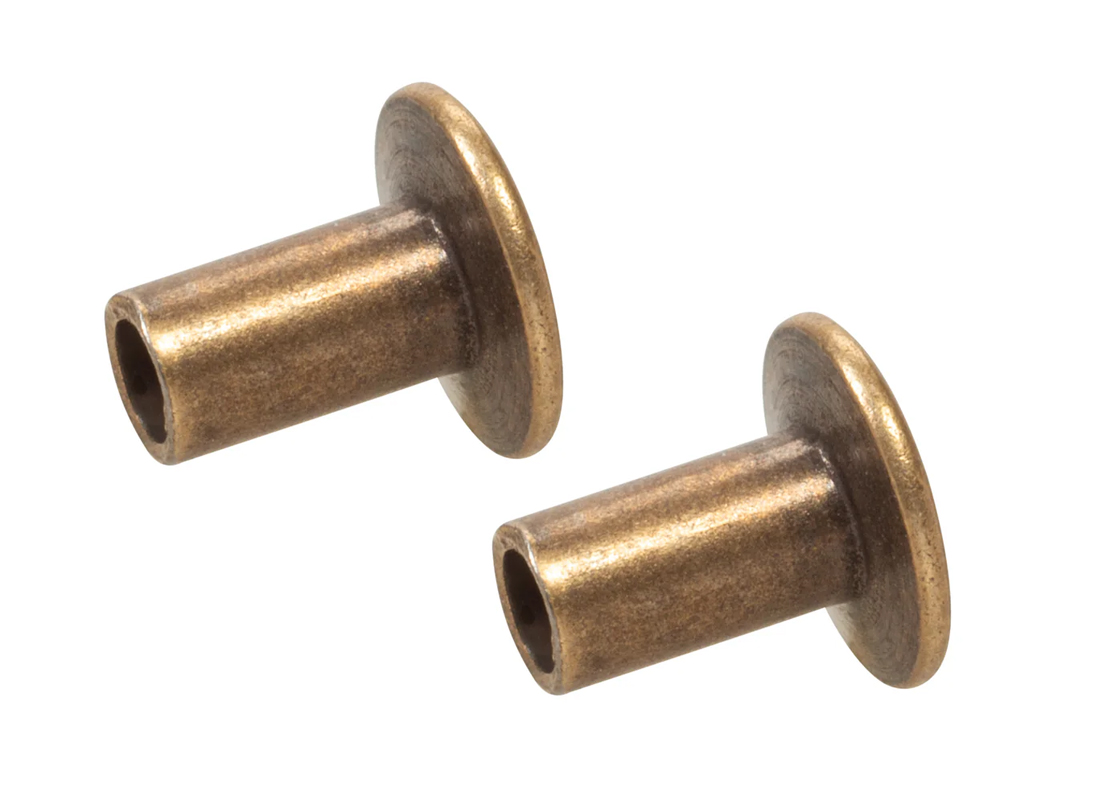

Q: When do people use semi-tubular rivets instead of solid rivets?
+
A: For high-speed, automated assembly of soft materials, semi-tubular rivets are the most suitable choice. The hole in the tip makes it easier to set, which makes a neat "rolled" clinch. There are many types of them, from electronics to appliances to brakes to leather goods like belts. Usually, solid rivets are used to hold steelwork such as bridges or ship hulls together, as they are stronger and more durable. Hammers or presses are used to secure them.
Q: What are common applications for small rivets, like those under 3/32"?
+
A: Rivets are the workhorses of precision assembly. Whenever there is a shortage of space in electronics, circuit boards, connectors, and small brackets are secured with them. They are also useful for fine metalwork, jewelry, eyeglass repair, model making, and securing nameplates. In addition to providing a firm hold, their small size and light weight allow them to be applied with a light-duty hand tool.
Q: What is the difference between boat rivets and regular aluminum rivets?
+
A: It is made so that boat rivets can be used in water. It is made of marine-grade aluminum and stainless steel 316, which means it won't rust in salt water. The closed-end or sealed rivet seals the mandrel head to make it waterproof, so they are important. Rives can lead to galvanic corrosion and leakage on a hull when used regularly.
Q: What kind of project would I need big rivets for? (3/16" in diameter and up)
+
A: You'd use big rivets for heavy-duty and structural work. You could use thick steel plates to make trailer frames, big brackets to attach to farm equipment, or industrial storage racks. These rivets can handle a lot of stress from both sides. You need a strong rivet tool to put them in place. This tool is often pneumatic or hydraulic because it needs a lot of force to set.
Q: Why should aluminum blind rivets be used instead of other materials?
+
A: The benefits of aluminum blind rivets are that they are lightweight, strong, do not rust, and are not too expensive. It's easy to put them together, they make a good electrical connection, and they can connect aluminum sheets, plastics, and other non-ferrous materials without causing galvanic corrosion. They are often the best and cheapest way to make things like signs, ductwork, and enclosures where shear strength isn't the most important thing.
