Phillips Drive countersunk self drilling screws
Drill and Fasten Flat. No Pre-Drilling, No Protruding Heads.
Achieve a Flush Finish. From Sheet Metal to Structural Framing.
Speed and Strength Combined. The Direct Factory Solution.
01
Sinsun Countersunk Self Drilling Screws | Flush Finish for Metal & Structural Applications
Source Sinsun countersunk self-drilling screws for a clean, flush finish. Combines a drill point and 82° countersunk head to eliminate pre-drilling and protruding fasteners in metal, steel framing, and machinery. Factory-direct quality and bulk pricing.
Get a Quick Qoute Sinsun Countersunk Self Drilling Screws integrate two critical functions into one efficient fastener: a self-contained drill point that eliminates the need for a separate pre-drilling step, and a standard 82° countersunk head designed to sit completely flush with or below the material surface.
This combination is engineered for professionals who require both rapid installation and a clean, smooth, and safe finished appearance, eliminating snag points and meeting precise dimensional specifications in assemblies.
Get a Quick Qoute

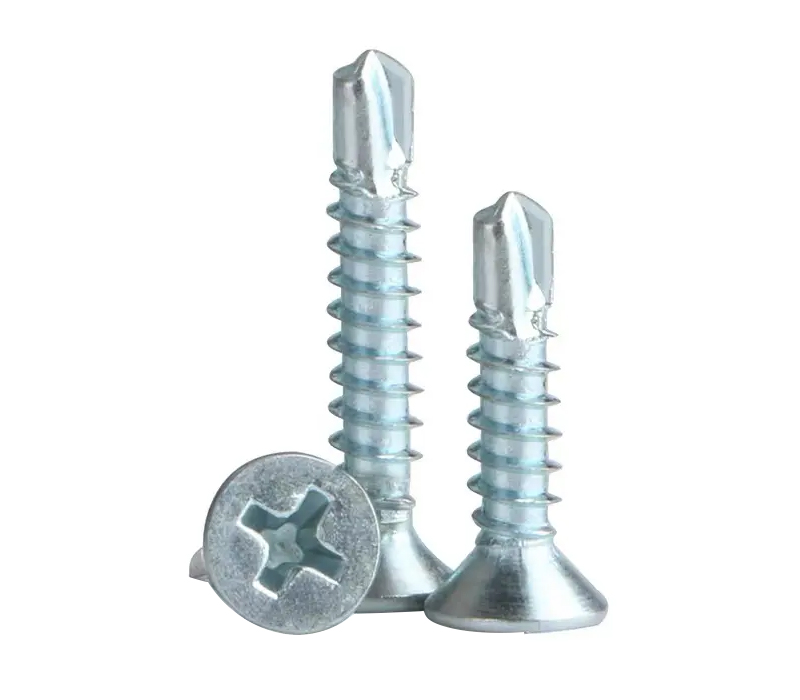

Sinsun countersunk tek screws Overview
Sinsun Countersunk Tek Screws for efficient wood-to-metal and metal-to-metal fastening.
Built with hardened steel, a sharp self-drilling TEK point, and deep, stable threads, these screws eliminate pre-drilling and deliver strong, consistent holding power in construction, framing, metal fabrication, and outdoor structures.
The countersunk head design ensures a flush, clean finish, while durable coatings enhance corrosion resistance for long-term reliability.
These self-drilling tapping screws are ideal for professional construction and industrial applications, delivering strong fastening performance, high corrosion resistance, and consistent installation efficiency across all kinds of metal and wood projects.

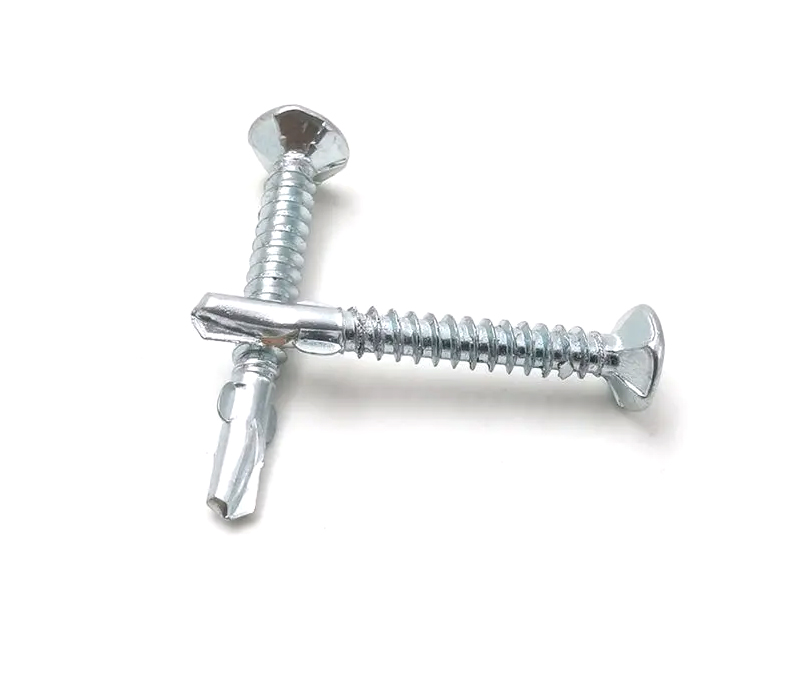

Countersunk with Ribs Window Fabrication Screws
Send inquiry Now

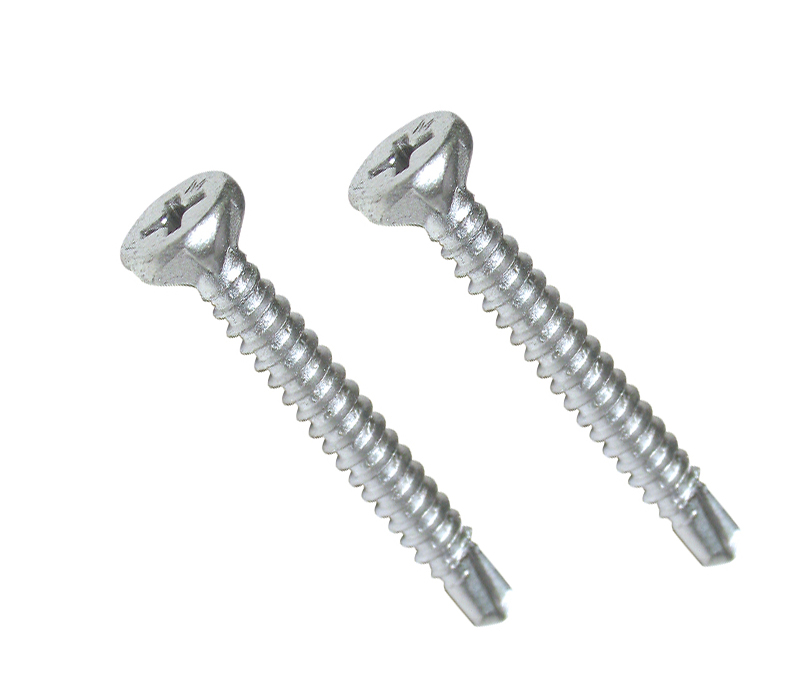

Embed Head CSK Self drilling Screw
Send inquiry Now

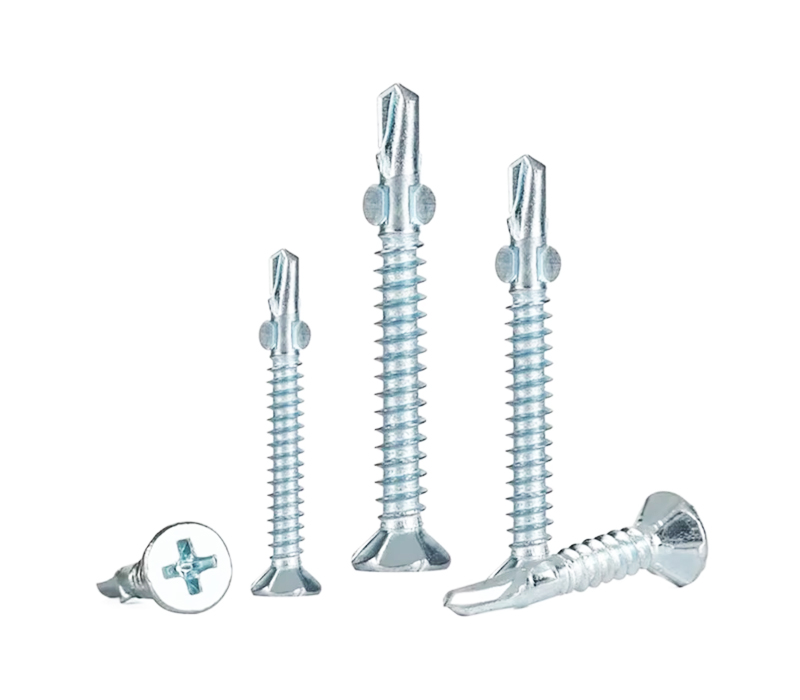

Wing Tek Screw
Send inquiry Now

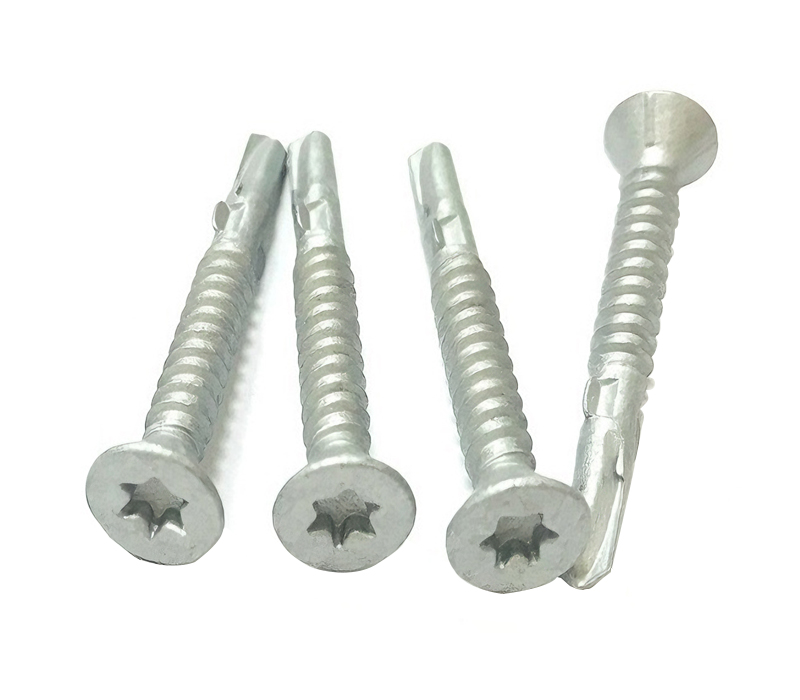

Torx Drive Countersunk Self Drilling Screw
Send inquiry Now01
countersunk tek screws Technical Specifications & Size Sheet
Head Style:
82° Flat Countersunk Head.
Function:
Self-Drilling (Tek) point.
Drive Types:
Phillips (PH), Pozidriv (PZ), Hex Washer Head (HW), or Torx (T25/T30).
Thread:

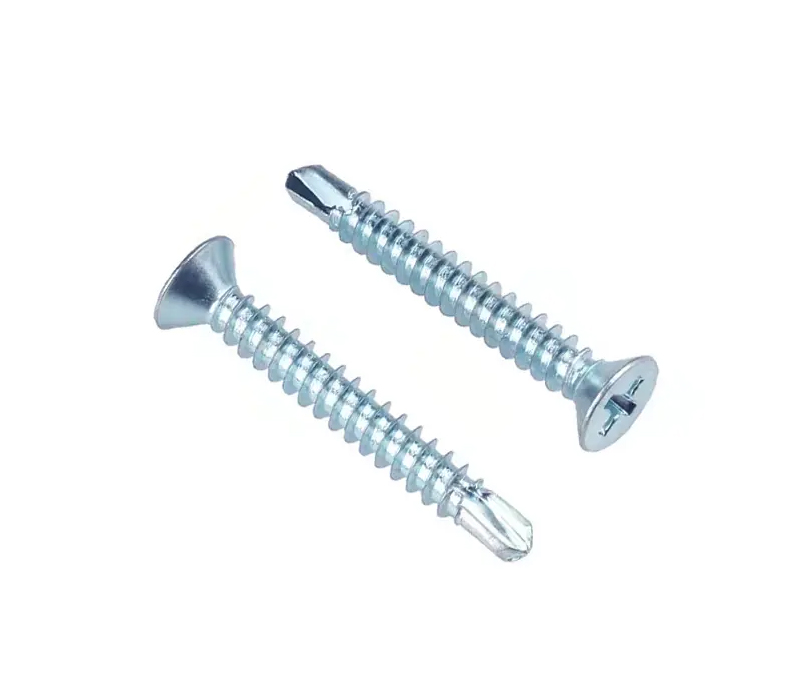

Fully threaded for maximum grip.
Material:
High Carbon Steel or Stainless Steel.
Point Type:
#2 Point (for light gauge), #3 Point (for medium gauge), #4 Point (for structural).
Sizes (Common):
#8, #10, #12 diameters; lengths from 1/2" to 4".
Finish:
Zinc Plated, Geomate (Blue/Green Ceramic Coated), Hot-Dip Galvanized.
Core Advantage:
Drills its own pilot hole and forms mating threads in a single operation, seating flush to prevent interference and improve safety and aesthetics.

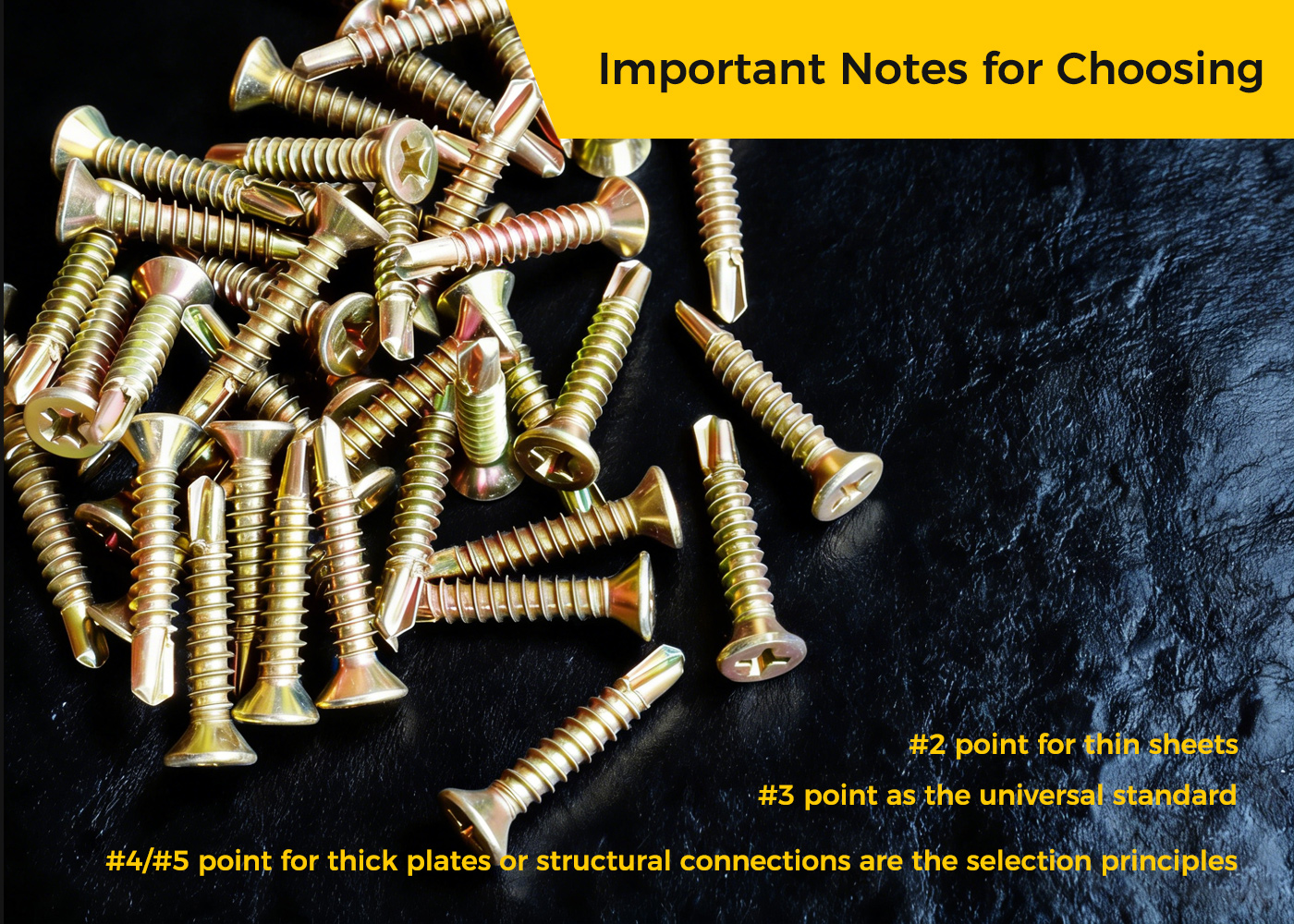

self countersunk screws Important Notes for Choosing
The size of the drill point tells you if the screw can drill itself. #2 point for thin sheets, #3 point as the universal standard, and #4/#5 point for thick plates or structural connections are the selection principles. Make sure the point size is at least as big as the thickness of the material you want to hit.
Length: The total length must go all the way through the materials being joined while still leaving enough thread engagement in the base material (usually 3–4 full threads are recommended).
Not Suitable For: This product is only meant to work with steel, aluminum alloys, and other metals. If you use this on hardwoods, brick walls, or concrete, it will damage the drill point and make the installation fail. Use anchor bolts that are made for concrete when working with concrete.
Professional Applications & Specifications: Countersunk Self Drilling Screws for Steel

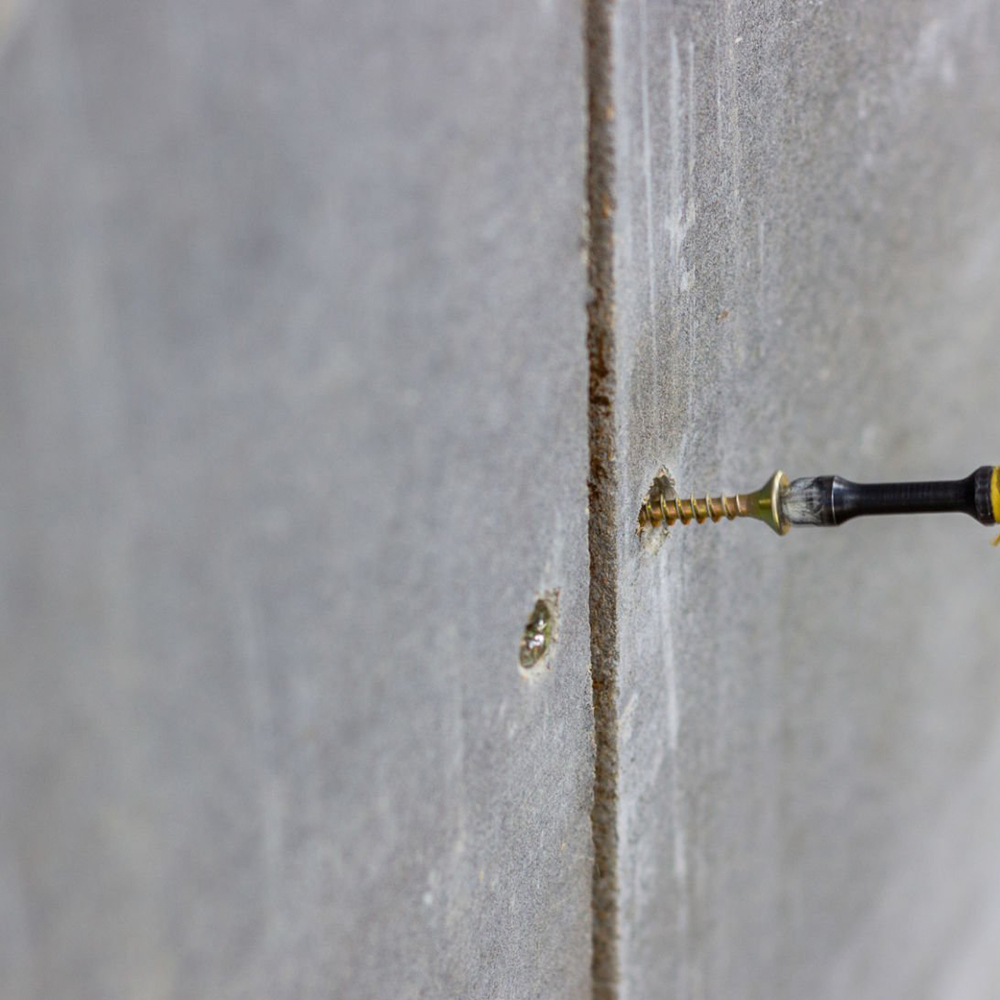

1. Application: Metal Building and Cladding Installation
Specifications: Used to secure corrugated steel roof panels, composite wall panels, and metal siding to structural purlins and wall studs.
Core Features: With self-drilling pointed tips, typically #3 or #4 in size, these screws penetrate panels and substrate without predrilling; a countersunk design ensures that the screws sit flush with the panel.
This design eliminates roof ponding, creates a smooth exterior finish, and prevents hooking. Metal components used in architectural applications must be durable and aesthetically pleasing.
Choosing Products: Make sure to choose screw heads with a sealing washer, as well as corrosion-resistant coatings that can withstand long-term outdoor exposure.

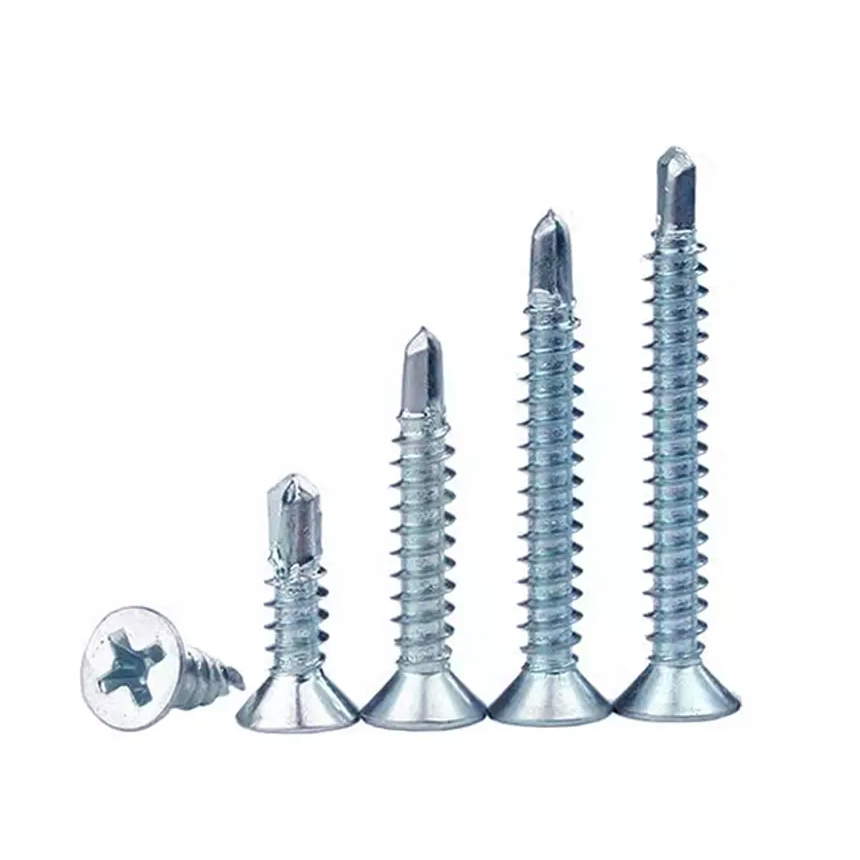

2. Installation of mechanical guards, electrical enclosures, and panels
Main Features and Benefits: The 82° countersunk design ensures that the surface is flush, which is crucial for safety as it eliminates protruding snag points on moving equipment. It also makes it easy to wipe down the surface and guarantees that the panels fit tightly. The self-drilling feature eliminates the need for separate drilling and tapping operations.
Choosing the Right Product: Zinc-plated or geodesic coating screws work well in indoor industrial settings. Use cross-recess or the more common Pozidriv/Torx drive to achieve the most torque transfer and less slippage when assembling a large number of parts.

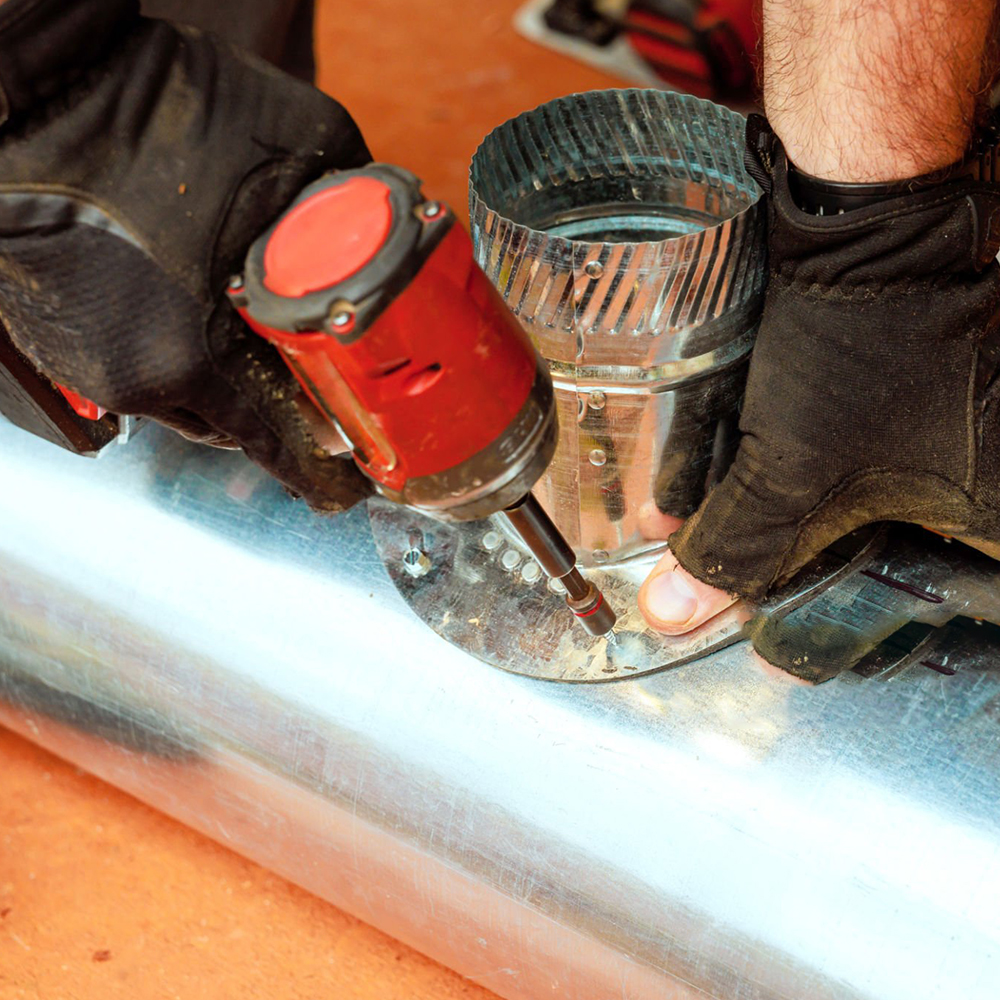

3. Use: Ductwork for HVAC and mechanical services
Specification: Used to make and hang rectangular and spiral HVAC ductwork and to hold insulation jackets in place.
Key Feature and Justification: It gives you a quick and strong way to connect duct sections and hangers. The flush head keeps air from moving around too much and keeps the pressure from dropping inside the duct, which is important for system efficiency. It also protects the lining and insulation from damage. The ability to drill holes by itself is very important for making changes and repairs on site where drill presses aren't available.
Choosing a product: Usually fine-threaded to get the best grip on thin-gauge sheet metal. To keep condensation from forming, the finish must be resistant to rust.

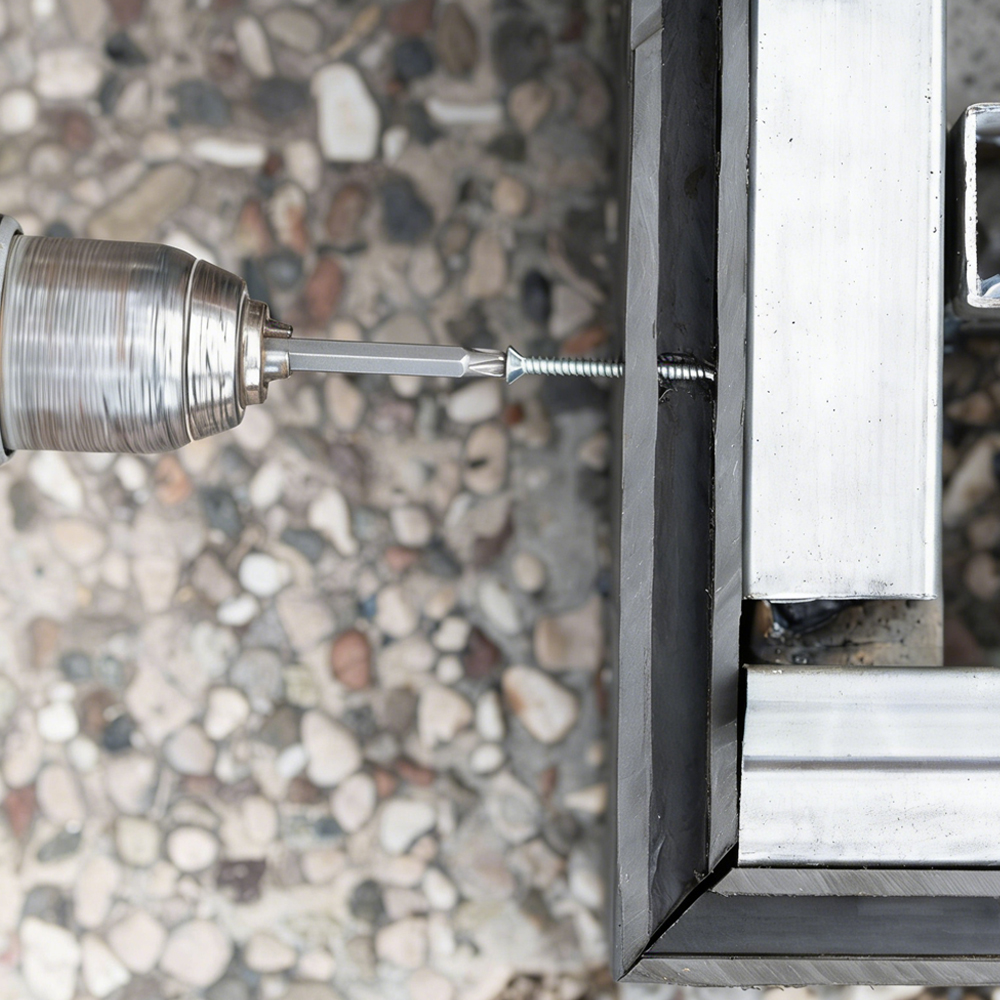

4. Application: Structural Steel Connectors and Brackets
Specifications: Suitable for non-primary structural connections, such as securing support angle iron, beam plates, seismic strut channels (Unistrut), and various steel brackets to main beams or columns.
The combination of high-strength steel and heavy-duty drill points (#4 or #5 drill points) enables direct fastening of load-bearing members up to 1/4 inch thick.
The countersunk design enables clean, compact connections in areas where bolt heads may cause obstruction and facilitates flush mounting of secondary components.
Product Selection: The product must meet high shear strength and tensile strength requirements. Specify hot-dip galvanized (HDG) or other structural-grade coatings to match the corrosion protection level of the primary steel structure. Additionally, hex washer head models are available for applications requiring higher clamping loads.
Q: What does a "Type 17" point on a countersunk self-drilling wood screw look like?
+
A: sinsun type 17 countersunk self drilling wood screws is a very sharp, deep-cutting auger-style tip. It works like a tiny drill bit, driving through wood and clearing away chips and fibers. This design is better than regular points for hardwoods, laminated timber, and composite wood products because it cuts down on splitting, stops "coring" (leaving a plug of material), and makes driving faster and straighter with less effort. In most wood applications, you don't even need to pre-drill.
Q: Are stainless steel countersunk self-drilling screws as strong as coated steel ones?
+
A: Stainless steel screws (usually A2/A4 grade) are better at resisting corrosion and are necessary for tough environments like coastal, chemical, and food processing. But in general, their tensile and shear strength is lower than that of hardened carbon steel screws. High-grade carbon steel with a coating is stronger for structural or high-clamp force uses in places where it won't rust. If you want something that won't rust, stainless is the best choice, but it may not be able to drill through thick steel as well.
Q: What does "Tek" refer to in countersunk self-drilling Tek screws?
+
A: "Tek" is a brand name (from Bosch) that has become a generic industry term for any screw with a integrated drill point. Therefore, a countersunk self-drilling Tek screw describes the specific head style (countersunk) on a generic self-drilling fastener. The performance is defined by the drill point size (e.g., #2, #3, #4), which indicates the thickness of steel it can penetrate without a pilot hole. #2 is for light gauge, #3 for medium, and #4/#5 for structural steel.
Q: What is the main advantage of a countersunk head on a self-drilling screw?
+
A: The primary advantage is a flush or sub-flush finish. Unlike a pan or hex washer head, the countersunk head (typically 82° or 90°) is designed to seat completely within a corresponding countersunk hole or to draw into the top material, creating a smooth, flat surface. This is critical for safety (no protruding snag points), aesthetics, and functionality in applications like metal fabrication, cladding, or machinery where a smooth surface is required. It does not provide the high clamp load of a washer head, but prioritizes a clean finish.
Q: What are the primary applications for these long plasterboard screws?
+
A: They are essential for deep frame applications, such as securing plasterboard to metal studs over thick thermal or acoustic insulation, creating double-layer board systems for enhanced fire ratings, and fixing boards to deep furring channels or uneven substrates. From Our Production Line to Your Most Challenging Job Site.
Q: How does the factory-direct model benefit me as a contractor?
+
A: By controlling the entire manufacturing process, Sinsun eliminates intermediary markups and ensures strict, consistent quality control. This translates to reliable bulk pricing for your business and product uniformity you can trust on every project, shipment after shipment. Sinsun: Fasteners Forged in Factory Precision.
Q: Can these screws be used for exterior soffits or sheltered external applications?
+
A: While our coating offers superior corrosion resistance, these are primarily engineered for internal framing and sheltered cavities. For fully exposed external fixtures, we recommend our dedicated exterior-grade screws with a more specialized weatherproof coating. Our technical team can advise on the best fastener for your specific project. Driven by Engineering, Backed by Proven Performance.
