How to Choose the Right Wood Screw: Sizes, Types, and When to Use Each

You will understand what I mean if you visit any hardware store's fastener aisle. At first glance there is a whole wall of wood screws that all look the same. Even though they have different packaging and prices, they're all just screws, aren't they?

Not exactly. Grab the wrong one—say, a coarse‑thread screw for hardwood, or a zinc‑plated screw for outdoor furniture—and you’ll find out the painful way. Stripped heads, split wood, rust streaks, or joints that pull apart after a season of use.

The right wood screw holds tight, doesn’t damage the material, and lasts as long as the project itself. Here’s how to figure out which one belongs in your hands.

How Wood Screws Are Measured

Wood screws aren’t sized like nails. There’s no “penny” system here. Instead, you’re looking at three numbers that actually tell you what you need to know.

Screw gauge (or “Gauge Number”)

This is the screw shank thickness. Gauges run from #2 (very fine) up to #24 (massive). The pattern is the opposite of what most people expect: a higher gauge number means a thicker screw. A #10 screw is noticeably thicker than a #6.

For most household projects—hanging cabinets, building a bench, installing trim—you’ll live in the #6 to #12 range.

Threads per inch (TPI)

This tells you how fine or rough the threads are. Grass threads bite aggressively into softwoods like pine and fir. Fine threads are better for hardwoods like oak and maple, where coarse threads can cause splitting.

If the box doesn’t list TPI, flip it over. It’s usually printed on the back.

Length

Measure from the tip to the flat underside of the head. If you’re using a flat‑head screw that sinks flush, you gauge the whole thing. For a round head or pan head, you still measure from the tip to the bearing surface—not including the dome.

A general rule of thumb: the screw should be long enough to go through the top piece and penetrate the base material by at least ¾ inch.

Types of Wood Screws and What They’re For

Not all wood screws are built the same. The biggest differences come down to thread style, head type, and material.

Coarse-thread vs. Fine-thread

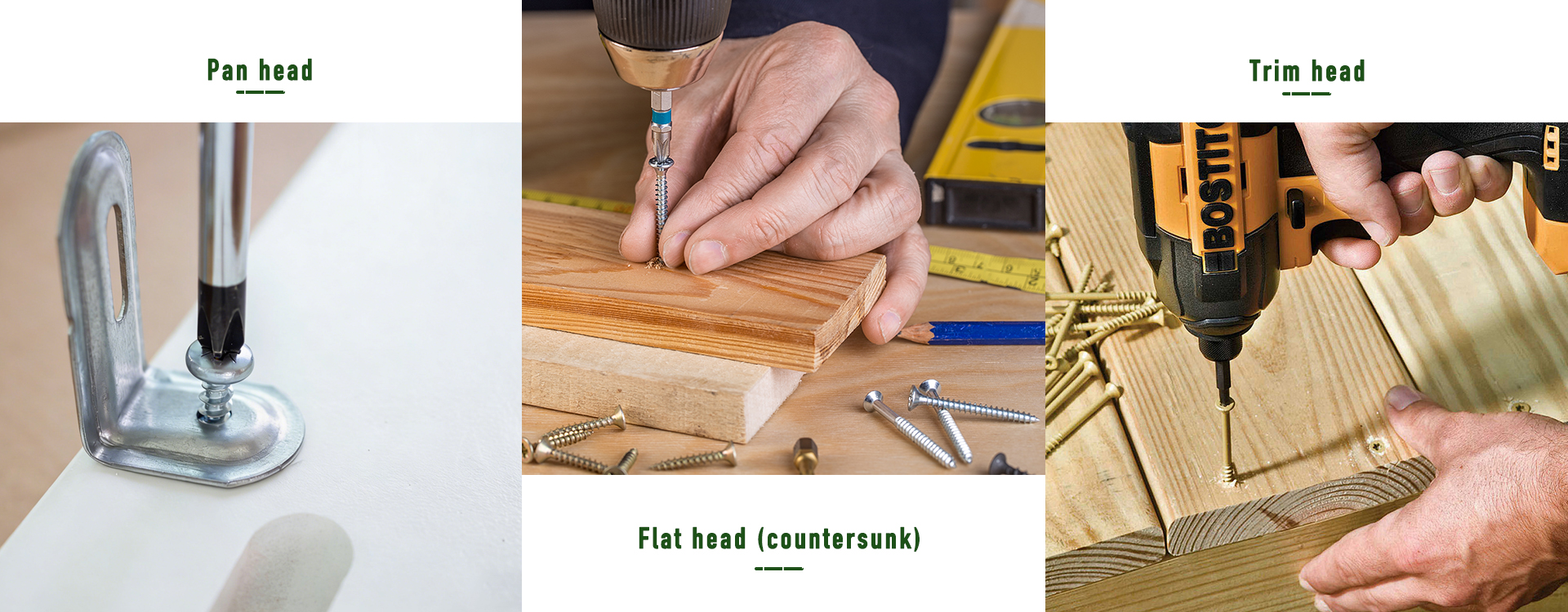

Head Styles That Matter

Flat head (countersunk) – The standard. Sinks are flush with the surface so you can fill the hole and hide the screw. Use them for trim, cabinetry, and any finished surface.

Pan head – Rounded top which sits above the surface. Common in pocket‑hole joinery and hardware attachment.

Trim head – Smaller diameter than a flat head. Lets you drive screws closer to the edges without splitting. Popular for face-frame cabinets and door casings.

Materials and coatings

Wood Screw Size Chart (Gauge, Length, and When to Use)

Here’s a practical reference for the sizes you’ll actually use. These are the ones I keep in my shop and reach for over and over.

If you’re only planning to keep one size on hand, make it #8. An 8 x 1¼ and an 8 x 2½ will cover most of what comes up.

Three Mistakes That Ruin a Wood Screw Job

I’ve made all of these. You probably have to. Here’s what to avoid.

1. Skipping the pilot hole in Hardwood

Yes, self‑drilling screws exist. They work fine in softwood. But drive a #10 coarse‑thread screw into white oak without a pilot hole, and you’ll either split the board or snap the screw halfway in. A pilot hole takes thirty seconds. Fixing a split board takes thirty minutes.

For hardwood, drill a pilot hole that is 75% the screw's shank diameter..For softwood, you can often skip it or use a smaller bit.

2. Using the wrong driver bit

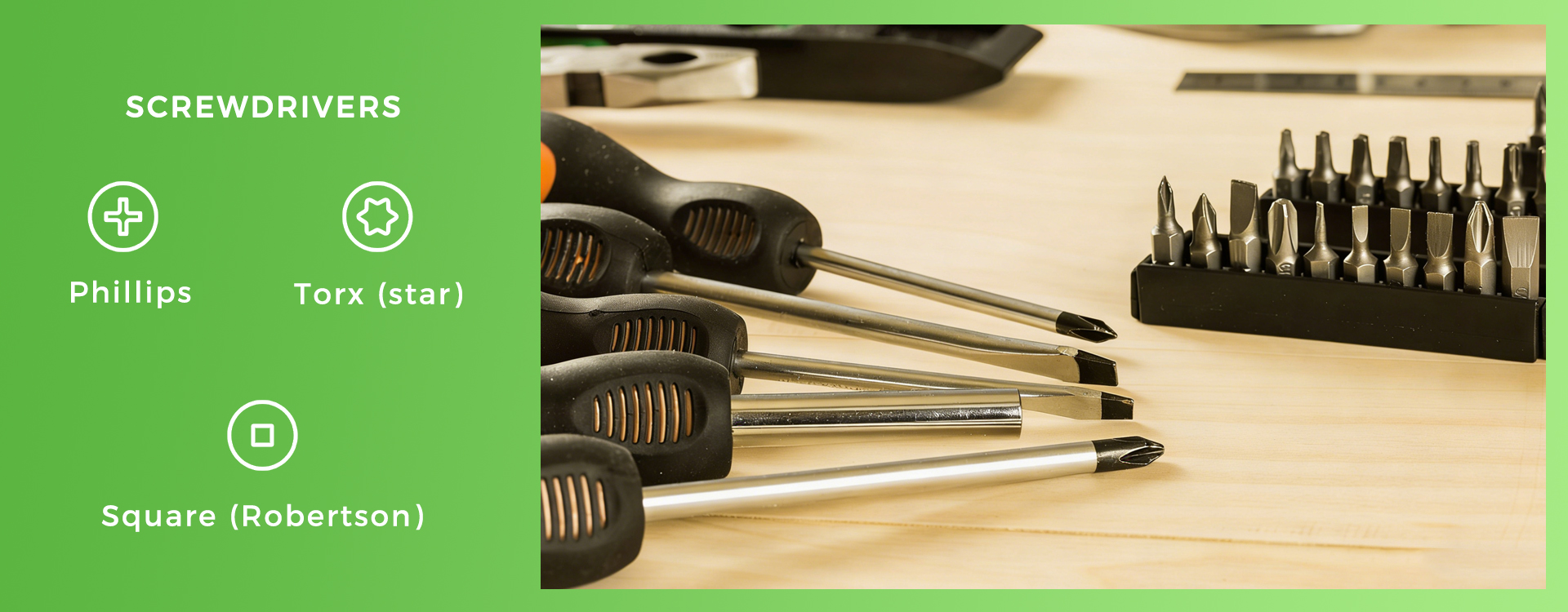

There are three types of screwdrivers: Phillips, Square (Robertson), and Torx (star). If you use a worn-out Phillips bit on a Torx screw, you will require a cam-out. The bit slips, the screw head strips, and now you’ve got a screw stuck halfway through a finished piece. Keep fresh bits handy. Match the type.

3. Overdriving and muscle-rooming

This happens when you spin the screw after it’s fully seated. The head sinks too deep, or at worst, the wood around it compresses and cracks. Most impact drivers have enough torque to sink a screw into concrete if you let them. Stop when the head is flush—or just below flush if you’re planning to fill the hole.

When to Upgrade to Specialty Screws

Sometimes a standard wood screw isn’t the right answer. Some specialty types worth knowing:

Pocket‑hole screws – Self‑tapping with a wide, flat head. Designed for Kregjigs and similar systems. The sharp tip prevents splitting when drilling at an angle.

Structural wood screws – Heavy than #10. Meant for ledger boards, deck posts, and anything carrying a real load. Often have a wrench drive (hex head) and a corrosion‑resistant coating.

Confirmat screws – Used for assembling cabinet boxes and particleboard. Thick shanks with coarse threads that bite into engineered wood better than standard wood screws.

Find the Right Fastener for the Job

A well-made wood screw should be invisible when the project is done—doing its work without drawing attention. The right size, the right thread, and the appropriate material. Skimp on any of those, and you’ll notice eventually. Either the joint loosens, or the head snaps, or the screw rusts and leaves a stain.
