Choosing the Right Head, Thread, and Point for Every Use of Self-Drilling Screws

In today's building and manufacturing, efficiency is measured by how many seconds are saved for every fastener that is put in. The self-drilling screw, which combines drilling, tapping, and fastening into one step, is a key part of this efficiency. But its biggest benefit—no need to drill holes first—can also be its biggest risk if you choose the wrong screw. When the screw's shape doesn't match the application, it can cause stripped heads, bad clamp-up, thread galling, and, in the end, joint failure.

At Sinsun, we don't make self-drilling screws as generic goods; we make them as a set of exact solutions. Three important engineering parts determine how well it works: the point (drill tip), the thread, and the head. The right combination makes the difference between a strong structure and an expensive callback.

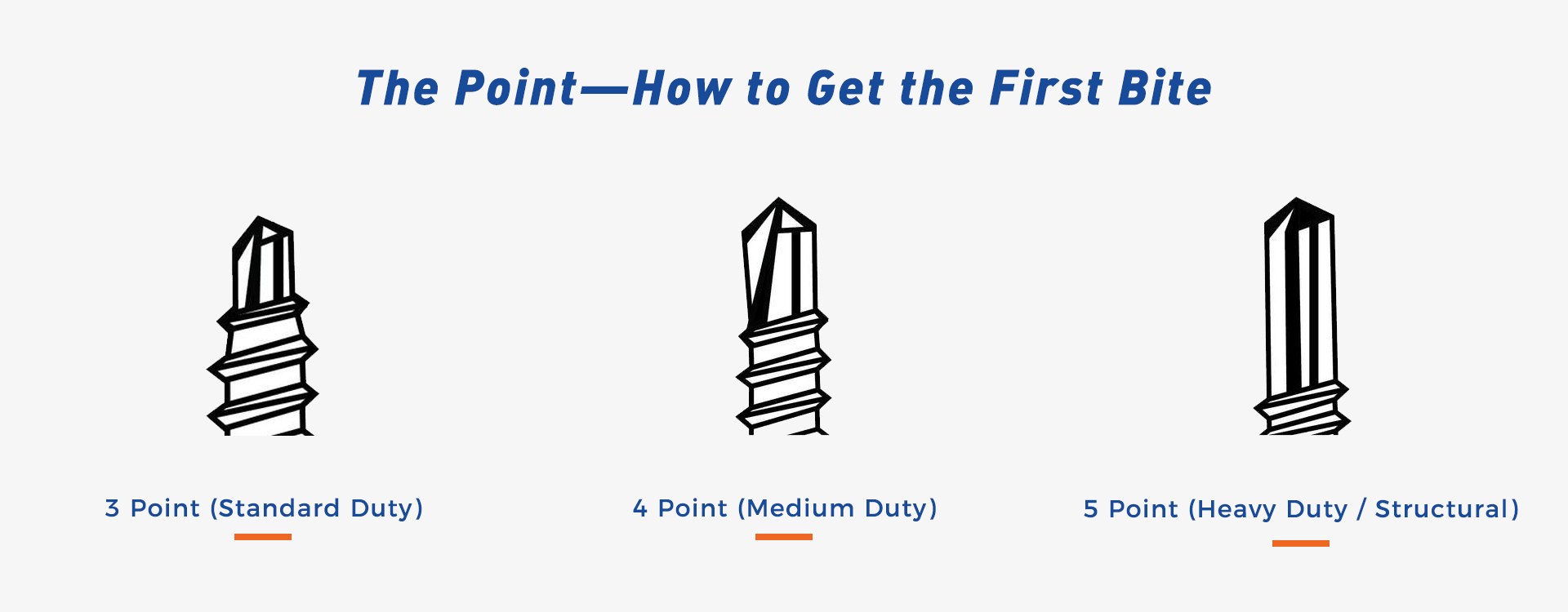

Part 1: The Point—How to Get the First Bite

The point, or drill tip, is the part of the screw that goes in. The design of the object determines what materials it can go through, how quickly it starts, and how much drive torque it needs.

3 Point (Standard Duty):

Geometry: The flute is shorter and has a sharper, more aggressive angle. Made for softer, thinner surfaces.

The Sinsun Application Guide is your go-to tool for framing light-gauge steel (up to 12mm total), aluminum extrusions (up to 3mm), and attaching steel trims to wood. The sharp start makes it less likely to "walk" on curved surfaces. We found that the Sinsun SDF-3 point always goes all the way through 1.2mm steel in less than two seconds with a regular cordless drill.

4 Point (Medium Duty):

In geometry, a #3 point has a longer flute and a slightly less sharp angle. This lets you remove more chips and keep cutting power for longer on thicker stacks.

Sinsun Application Guide: This guide is for attaching cladding, putting together HVAC ducts, and making mid-weight steel-to-steel connections (up to 20mm thick). The Sinsun SDF-4 point is best for laminated materials, like when you screw a steel bracket through a 10mm plywood base into a 6mm steel column. The design stops wood fibers from getting stuck in it.

Technical Insight: Our #4 point has a micro-serration behind the flute for coated materials like galvanized or pre-painted ones. This small feature scrapes off the coating before the thread engages, making sure that the metal-to-metal contact is clean for the best electrical continuity in grounding applications.

5 Point (Heavy Duty / Structural):

Geometry: The longest flute, which is often shaped like a parabola to let chips flow easily. The tip is strong and made to last through a lot of drilling with a lot of axial load.

Sinsun Application Guide: Only for structural connections, heavy gauge purlins (3mm+), and making truck and trailer bodies. The Sinsun SDF-5 point can go through solid steel that is up to 25 mm thick. We use a high-low thread with it to reduce drive torque (see below). It is the only point that is recommended for use with high-strength steel substrates that have been quenched and tempered (like ASTM A653 SS Grade 550).

Important: Always make sure that the length of the point is the same as the thickness of the material. The rule is that the point length must be equal to or longer than the total thickness. Sinsun makes sure that the packaging is clearly labeled (for example, "SDF-5-20" for a #5 point with a total thickness of 20mm) to avoid mistakes in the specifications.

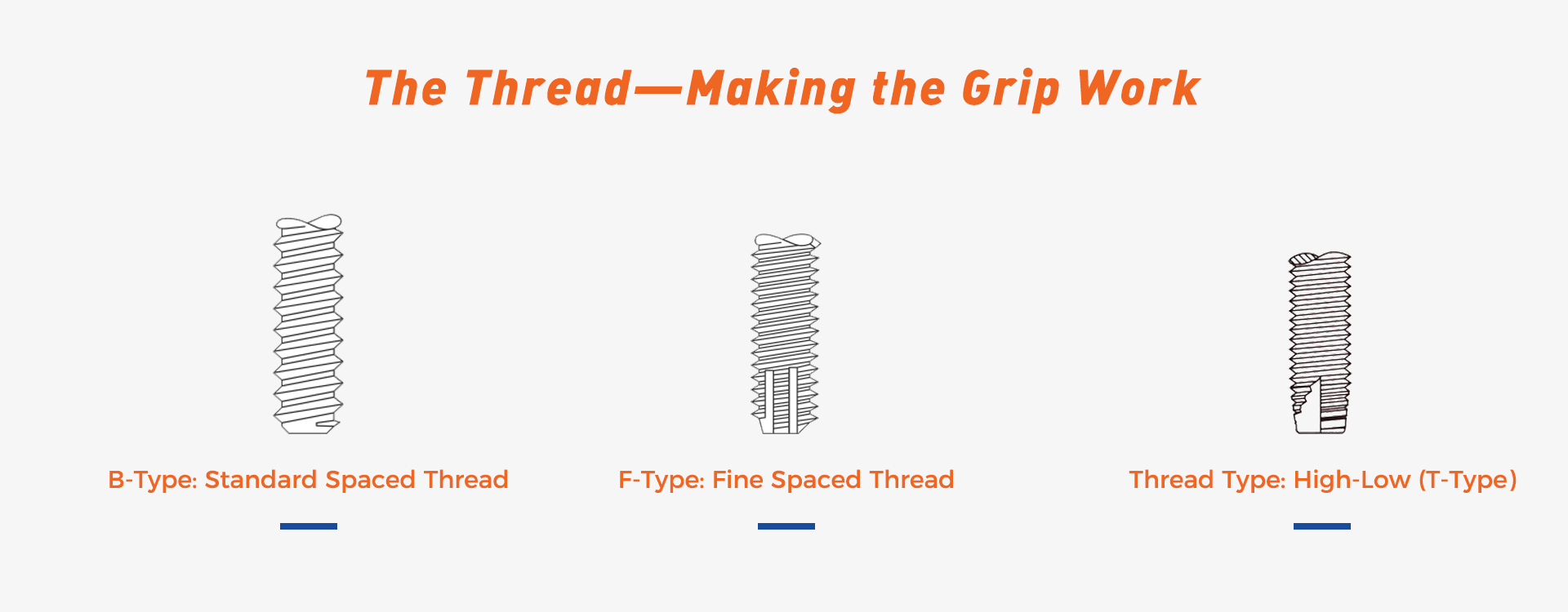

Part 2: The Thread—Making the Grip Work

The thread is the part that holds the load. Its profile controls the force of the clamp, how hard it is to strip, and how much vibration it can take.

B-Type: Standard Spaced Thread

Profile: Threads are spaced farther apart. Makes the driving speed faster, but there is less total thread engagement in thin materials.

Sinsun Application Guide: Best for putting softer materials like wood, particle board, or plastic into metal. The wide spacing lets the material flow between the threads without breaking. For most jobs that involve framing sheet metal with wood, this is the default. The SDB series with a #3 point is the most common screw for steel stud framing for drywall.

F-Type: Fine Spaced Thread

Profile: Threads that are close together. Gives the most threads per inch (TPI), which makes thin-gauge metals stronger when they are pulled out.

Sinsun Application Guide: This is a must-have for thin sheet metal (0.7mm to 1.5mm), aluminum cladding, and stainless steel assemblies. The high TPI makes sure that at least 3–4 full threads are engaged, even in the thinnest materials. This greatly lowers the risk of stripping. This is not up for discussion when it comes to standing seam roof panels or curtain wall glazing channels.

Thread Type: High-Low (T-Type)

Profile: A pattern of high and low threads that alternates. This clever design is what makes it possible to fasten laminated or composite materials.

Sinsun Application Guide: Made just for wood-to-steel, plastic-to-steel, and dense insulation board-to-steel. The high thread cuts into the softer top layer (wood) very aggressively, while the low thread makes the path and connects to the metal substrate. This can cut driving torque by up to 40% compared to a standard thread, and it stops material from pushing out or "jacking." For metal roofing over purlins with anti-condensation mats, our SDT series is very important.

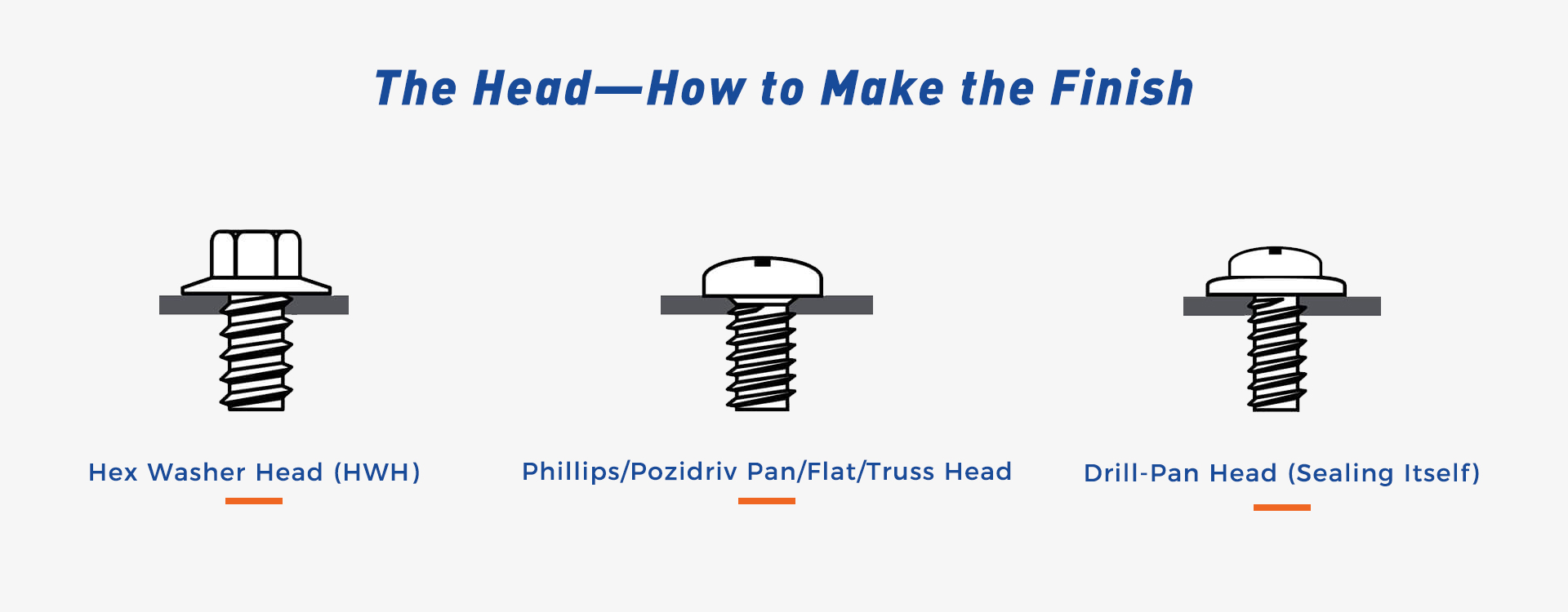

Part 3: The Head—How to Make the Finish

The head moves the torque and makes the final clamp. It is chosen based on the tools needed, how it looks, and how well it seals.

Hex Washer Head (HWH):

Mechanics: A hex socket lets you use a nut driver with a lot of torque. The built-in washer seals the hole and spreads the load.

Sinsun Application Guide: The standard for roofing, siding, and structural steel connections. The HWH has a fully formed 10.5mm hex that won't round, and a hardened, serrated washer that cuts into the substrate to keep it from spinning out. For best results, use with a magnetic hex driver.

Phillips/Pozidriv Pan/Flat/Truss Head:

Mechanics: Gives a low-profile or flush finish. Pozidriv (PZ) grips better and is harder to cam out of than Phillips (PH).

Sinsun Application Guide: This is used when looks or a smooth surface are important, like when putting together appliances, making electrical enclosures, or attaching cabinet hardware. If your screws are bigger than 4.2mm, we suggest PZ3. For important uses, choose our Torx (T-Star) drive heads, which have almost no cam-out and better torque transfer.

Drill-Pan Head (Sealing Itself):

Mechanics: This tool has a drilling point and a pan head with a built-in EPDM or silicone washer that has been vulcanized to the bottom.

The Sinsun Application Guide is the best way to make sure that your exterior cladding, metal roofing penetrations, and HVAC are all sealed off from water and air. The washer shrinks down to make a permanent seal. To avoid galvanic corrosion, make sure that the washer material and the substrate coating work well together.

Conclusion: The Sinsun System Method

There are three things to think about when choosing a self-drilling screw: the thickness and type of the material, the required clamp strength, and the conditions in which it will be used.

At Sinsun, we don't just sell screws; we also give you information about how to use them. This logic is used to code our technical datasheets and packaging (for example, SDF-4-F-PZ means "4 Point, Fine Thread, Pozidriv Pan Head").

Go beyond the usual for your next project. You can either download our Sinsun Self-Drilling Screw Selection Matrix or get in touch with our engineering support team to talk about your specific material stack-up and performance needs. We will give you the data-driven specifications that make sure the installation is quick and the joints stay strong over time.
