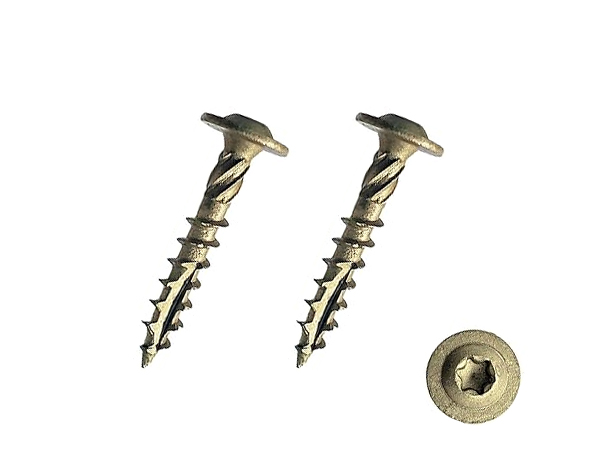

Heavy-Duty Deck Lag Screws
Structural holding power without pre-drilling frustration.
316 stainless steel heads that resist rust and shearing.
Deep threads bite hard, stopping pull-out and squeaks.
01
The Ultimate Guide to Sinsun Deck Lag Screws:Engineering Your Deck for Safety and Longevity
The screws that hold a deck together are often what makes the difference between one that lasts for decades and one that falls apart in a few years. Standard deck screws often don't have the shear strength needed for important connections, such as attaching railings to posts, securing ledgers to house bands, or building strong stairs. You need screws for your deck.
We make fasteners for the real world at Sinsun. We know that a deck is more than just an outdoor space; it's a commitment to building. This guide examines why upgrading to Sinsun lag screws is the best choice for your project, focusing on the problems of corrosion, installation fatigue, and joint failure.
Get a Quick Qoute
What Are Deck Lag Screws?
These heavy-duty fasteners are often called "lag bolts." They are made to connect wood to wood when regular screws don't work. They have a thicker shank, deep coarse threads, and a hex head that makes them easy to install with a lot of torque.
But there are a lot of generic steel options on the market that rust or break.
Sinsun Deck Lag Screws were made to fix the three biggest problems people have when building decks:
Corrosion: Rust streaks ruining the finish on your new deck.
Strip-Out: Cam-outs that leave screws sticking out and dangerous.
Pull-Out: Railings that are loose because of vibration and wood movement.
Rust is the worst thing that can happen to deck hardware. Salt spray is always a danger to regular coated screws if you live within 5 kilometers (about 3 miles) of a coast. It can cause rust stains that bleed within 2 to 3 years.
Sinsun fixes this with a dual-threat material strategy:
Sinsun 304 Stainless Steel Lag Screws are great for decks and lakes that aren't saltwater. Compared to galvanized or zinc-coated options, they last longer.

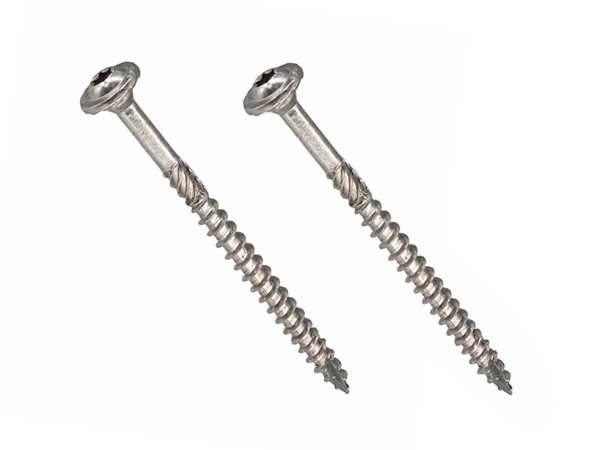

Sinsun 316 Stainless Steel Lag Screws: Good for places near the coast. Adding molybdenum to 316 grade makes it better at resisting chlorides and saltwater pitting.
There are often massive pilot holes required for generic lag screws, which reduce their holding power. Sinsun Deck Lag Screws feature a proprietary thread design that balances ease of insertion with maximum withdrawal resistance.
Deep, sharp threads: They cut dense pressure-treated lumber (PT) and hardwoods like Ipe, rather than crushing the wood fibers.
Reduced pilot hole size: Our design allows for a smaller pilot hole than standard bolts, meaning more wood mass grips the threads for a stronger connection.
A stripped hex head is one of the worst things that can happen to a project. Sinsun uses a deep-set hex drive that is precisely formed to give your driver bit the most surface contact.
This ensures you can use the high torque needed to make the lag screw flush with the surface without the head breaking off or the drive rounding out.

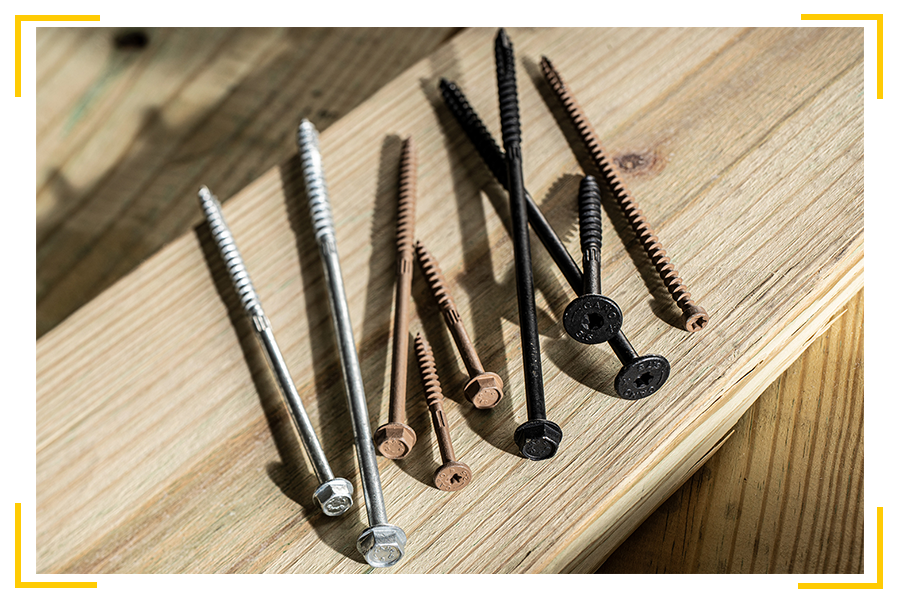

Structural Framing (Ledger Boards & Beams)
This is the most load-critical area of your deck. If the ledger board pulls away from the house, the deck collapses. Building codes typically require lag screws or through-bolts in this area.
Sinsun Solution: Use our 1/2" or 5/8" diameter lag screws, hot-dip galvanized or stainless steel, to secure the ledger. The large bearing surface of the Sinsun hex head distributes the weight of the deck evenly, preventing the wood from crushing.

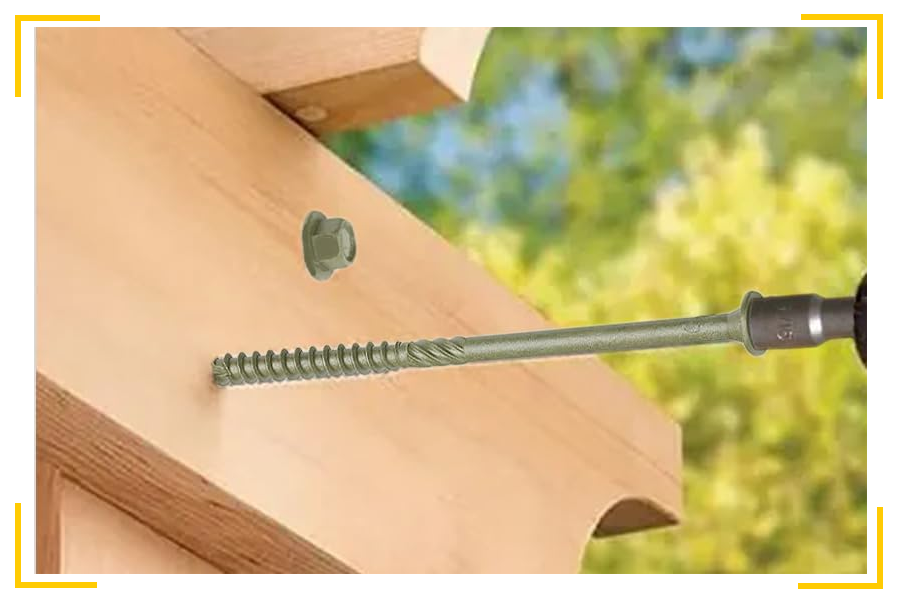

Contact usPost-to-Beam Connections for Railings
Railings take the most lateral force, like when people lean or kids play. Under this cyclic load, a #8 deck screw will break. A Sinsun lag screw will stay in place.
Our 3/8" x 4" or longer lag screws driven through the post into the beam make a mechanical lock that keeps decks from wobbling and makes it hard to use leverage.
Contact us
Structural Framing (Ledger Boards & Beams)
This is the most load-critical area of your deck. If the ledger board pulls away from the house, the deck collapses. Building codes typically require lag screws or through-bolts in this area.
Sinsun Solution: Use our 1/2" or 5/8" diameter lag screws, hot-dip galvanized or stainless steel, to secure the ledger. The large bearing surface of the Sinsun hex head distributes the weight of the deck evenly, preventing the wood from crushing.
Contact us
0102
Why Sinsun is the Smart Choice for Your Project
It's not the upfront cost of the fastener that matters; it's the cost of the deck over its entire life. It's a pain to have to replace a screw that has rusted, popped, or snapped in five years. It costs a lot of money to replace a rotted joist that was caused by water getting in through a broken fastener.
Dependability
Fasteners that always work as promised.
Safety
Knowing that your stairs, railings,
and building are safe.
and building are safe.
Looks
No rust streaks. No heads that resemble mushrooms.
A clean, professional finish is all you need.
A clean, professional finish is all you need.
| Specification | Sinsun Inland Pro (304 SS) | Sinsun Marine Grade (316 SS) | Sinsun Structural HD (Carbon Steel) |
| Material Grade | Stainless Steel 304 (18/8) | Stainless Steel 316 (Marine) | High-Carbon Steel; Heat Treated |
| Corrosion Resistance | High (Freshwater, Humidity) | Excellent (Coastal, Saltwater, Chemicals) | Medium (Zinc-Plated; Dry use only) |
| Finish / Coating | Bright Annealed / Mill Finish | Bright Annealed / Passivated | Hot-Dip Galvanized (HDG) or Clear Zinc |
| Head Style | Heavy-Duty Hex Head (External Drive) | Heavy-Duty Hex Head (External Drive) | Heavy-Duty Hex Head (External Drive) |
| Drive Type | 3/8" or 1/2" Socket / Wrench | 3/8" or 1/2" Socket / Wrench | 3/8" or 1/2" Socket / Wrench |
| Washer Type | Mandatory (Flattened ring or separate washer) | Mandatory (Separate 316 SS Washer) | Mandatory (Separate Galvanized Washer) |
| Thread Type | Coarse, Sharp-Cutting (Single Lead) | Coarse, Sharp-Cutting (Single Lead) | Coarse, Sharp-Cutting (Single Lead) |
| Point Type | Gimlet Point (Self-centering) | Gimlet Point (Self-centering) | Gimlet Point (Self-centering) |
| Nominal Diameter | Threads Per Inch (TPI) | Standard Lengths Available | Pilot Hole Size (Softwood) | Pilot Hole Size (Hardwood) | Hex Head Size (Wrench) | Typical Application |
| 1/4" (6.3mm) | 10 |
1.5" to 4" | 5/32" (4.0mm) | 11/64" (4.4mm) | 3/8" | Deck boards, light railing blocks |
| 5/16" (7.9mm) | 9 |
2" to 5" | 13/64" (5.2mm) | 7/32" (5.6mm) | 1/2" | Railing posts, joist hangers |
| 3/8" (9.5mm) | 8 |

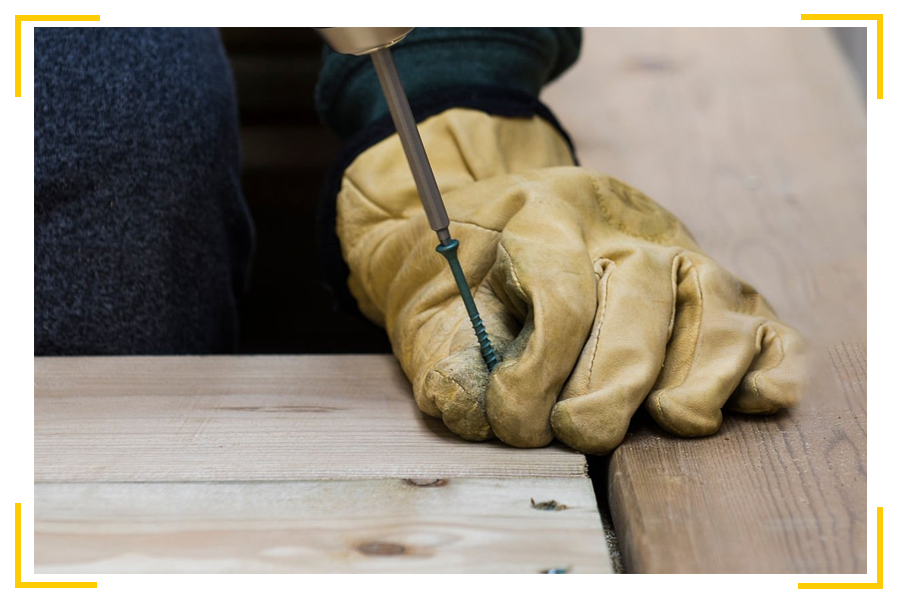

3" to 6" | 15/64" (6.0mm) | 1/4" (6.4mm) | 9/16" | Primary:Post-to-beam, stair stringers |
| 1/2" (12.7mm) | 7 |
4" to 8" | 5/16" (8.0mm) | 21/64" (8.3mm) | 3/4" | Ledger boards, beam-to-post connections |
| 5/8" (15.9mm) | 6 |
6" to 10" | 13/32" (10.3mm) | 27/64" (10.7mm) | 15/16" | Heavy structural ties, commercial decking |
Sinsun Lag Screws: How to Install Them
Spacing: Keep at least 1.5 inches between the edge of the wood and the edge of the wall to keep it from splitting.
When driving large-diameter stainless steel (304/316) lag screws into dense hardwood, put a little wax or anti-seize on the threads to keep them from galling.
Warning: Don't hit these screws with full force. To keep control and avoid breaking the head, use a drill/driver with a variable speed.
"I built a 12x16 pressure-treated deck behind my house last summer. I was dreading the ledger board attachment because every video online showed hours of pre-drilling with huge bits. I used the Sinsun 1/2" x 6" Structural HD lag screws. I chucked them into my impact driver with a socket adapter, and they drove straight into the rim joist without a single pilot hole. The threads bit hard immediately—no spinning, no stripping. Two months later, the deck hasn't settled or squeaked at all. For a DIYer without a workshop full of industrial tools, these screws are a lifesaver."
— Mark R., Ohio
"We specialize in waterfront properties in South Carolina, and salt corrosion is our biggest enemy. We used to avoid lag screws because galvanized coatings would fail within three years, leaving rust stains on $20,000 worth of Ipe decking. We switched to Sinsun Marine Grade 316 Stainless on a dock house renovation six months ago. The installation was smooth—no galling, even in the dense hardwood. We just did a maintenance check, and the screws still look like the day we installed them: bright, clean, and rock-solid. Finally, a structural screw we can warranty."
— Captain Jack's Marine Construction, Charleston
"My biggest fear was my kids leaning on the railing and it giving way. The previous builder used standard deck screws to attach the 4x4 posts to the frame, and over two winters, everything got loose and spongy. I re-did every single post connection with Sinsun 3/8" x 5" lag screws. The difference is night and day. I can put my full body weight against the rail now, and there is zero movement. The hex head seated perfectly flush, and the included washers stopped the heads from sinking into the wood. It feels like a commercial playground structure now."
— Linda T., Colorado
010203
Frequently Asked Questions About Sinsun Deck Lag Screws
-
Q: What is the difference between a deck ledger bolt and a standard lag screw?
A: A deck ledger bolt is specifically rated for attaching ledger boards to house framing. It meets building code requirements for shear strength and pull-out resistance, while standard lag screws may not. -
Q: What are the code requirements for deck ledger lag bolts?
A: Bolts must be 1/2" minimum diameter, galvanized or stainless steel, spaced per IRC Table R502.2.2.1. They must penetrate through the rim joist by at least 1/2" and be staggered 2" from top and bottom edges. -
Q: How do I properly install deck post lag screws?
A: Never rely on end-grain connections. Posts should bear directly on beams or be notched and through-bolted. If using lag screws, ensure they penetrate deep into solid framing, not just the post. -
Q: Can I attach a deck ledger to engineered wood or TJI rim board?
A: Yes, but you must follow the manufacturer's specific allowable load values. You also need a separate lateral tension tie rated for 1500 lbs minimum to prevent pull-away. -
Q: What if my ledger board hangs down below the house foundation?
A: The bolts must hit solid rim joist, not foundation. If the ledger overhangs, bottom bolts will miss. Either rip the ledger smaller or make the deck free-standing. -
Q: Why are deck railing lag bolts not recommended for posts?
A: Lateral pressure on railings can pull lag screws out of band boards. Use through-bolts with washers or engineered tension ties designed to transfer loads directly to the framing.
