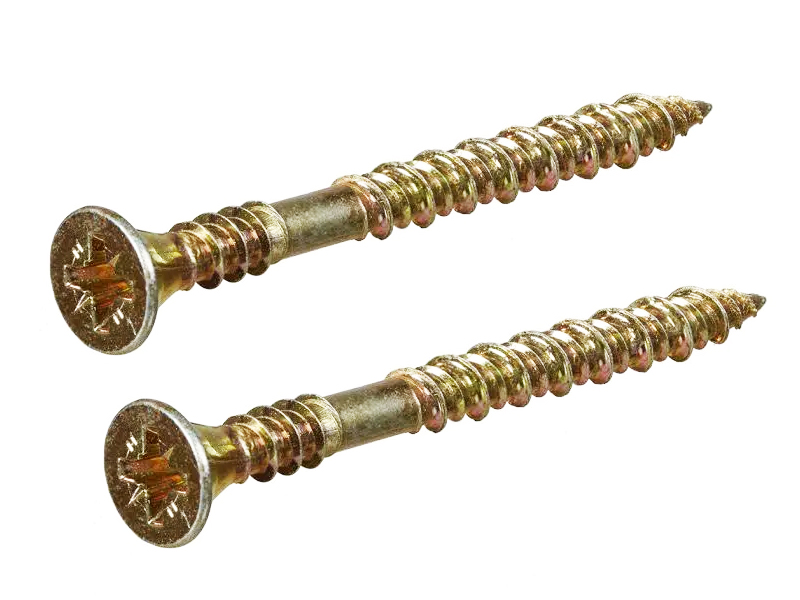

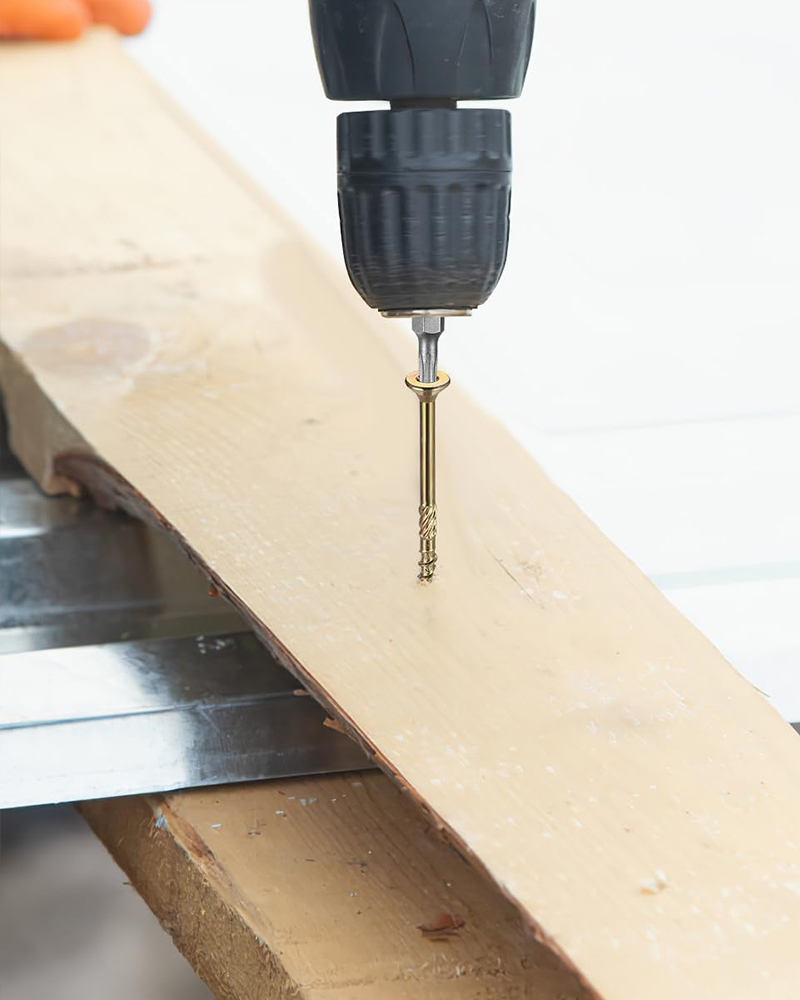

Flat Head Fast Thread floorboards screws
Strong, Silent, Stable.
Stop Floor Squeaks for Good.
Hold Boards Tight, Prevent Gaps.
01
Sinsun Professional Floorboard Screws | Eliminate Squeaks & Gaps for Good
Sinsun's engineered floorboard screws provide superior holding power to prevent squeaks, gaps, and movement in hardwood, engineered, and subfloor installations. Achieve a permanent, silent floor.
Get a Quick QouteWhy Standard Fasteners Fail on floors
A quiet, stable floor is the mark of quality craftsmanship. Traditional nails or generic screws are the leading cause of common, frustrating floor failures:
Squeaks & Movement: Insufficient holding power allows boards to rub against subfloor or each other.
Gaps & Separation: Seasonal wood expansion and contraction pull fasteners loose.
Subfloor Damage: Poor screw design can strip or damage plywood or OSB subflooring.
Surface Damage: Improper heads or installation can damage delicate board surfaces.
Sinsun Solution: Engineered for Permanent Stability
Our screws are specifically designed to anchor floorboards securely from below (blind nailing) or through the surface, creating a monolithic, stable structure.

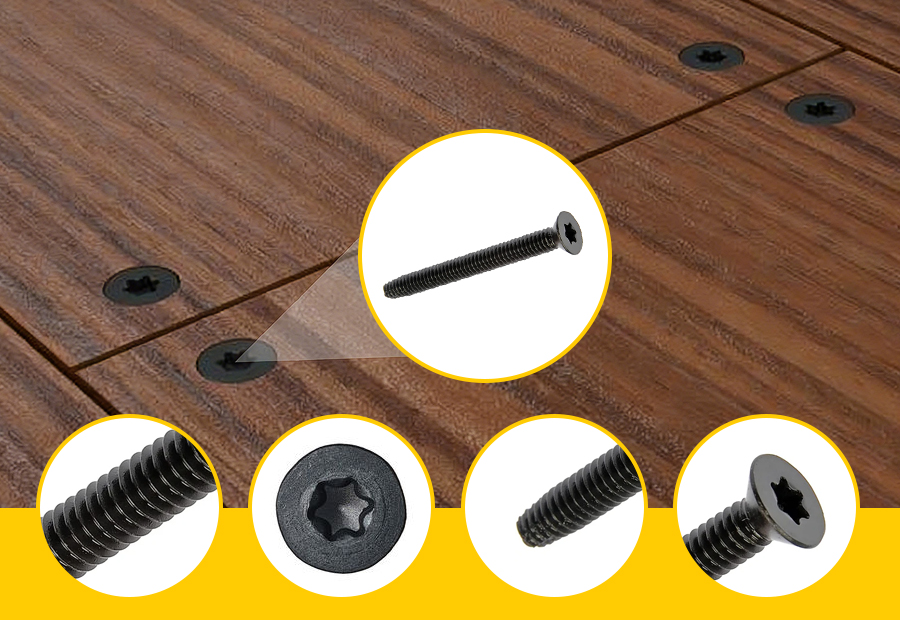

Important Features of the Product
-
Optimized Thread Design
Deep, aggressive threads make it hard for the floorboard and subfloor to pull out, thereby preventing them from moving up.
Precision-Machined HeadsYou can choose between trim heads that are hard to see or flat heads that completely conceal the filling.
Self-Tapping TipsThe sharp, engineered point can drill through hardwoods and engineered materials without splitting, so you don't have to drill holes ahead of time in most cases.
Specialized CoatingsFinishes that resist corrosion and can be used in a variety of settings, even where there might be moisture in the subfloors.
Get A Quick Qoute
Primary Product Lines:
| Model Series | Best For | Key Feature | Common Sizes (Gauge x Length) |

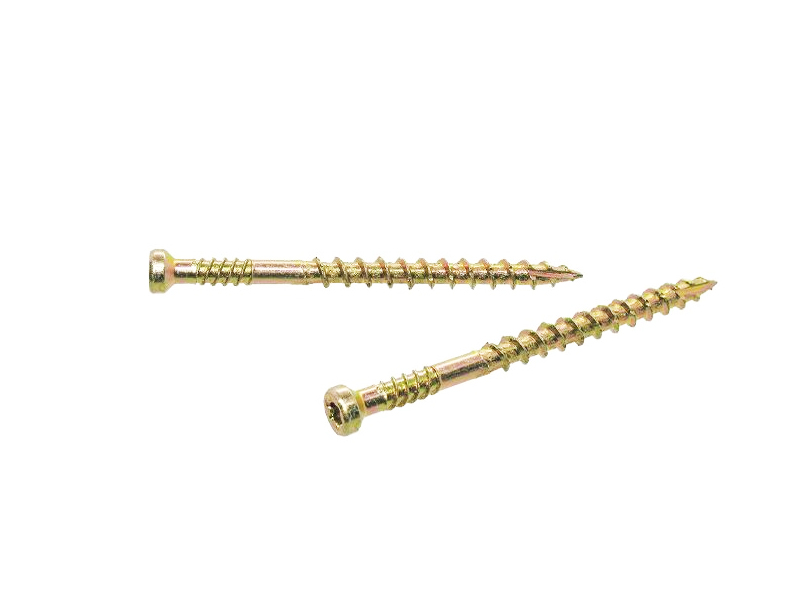

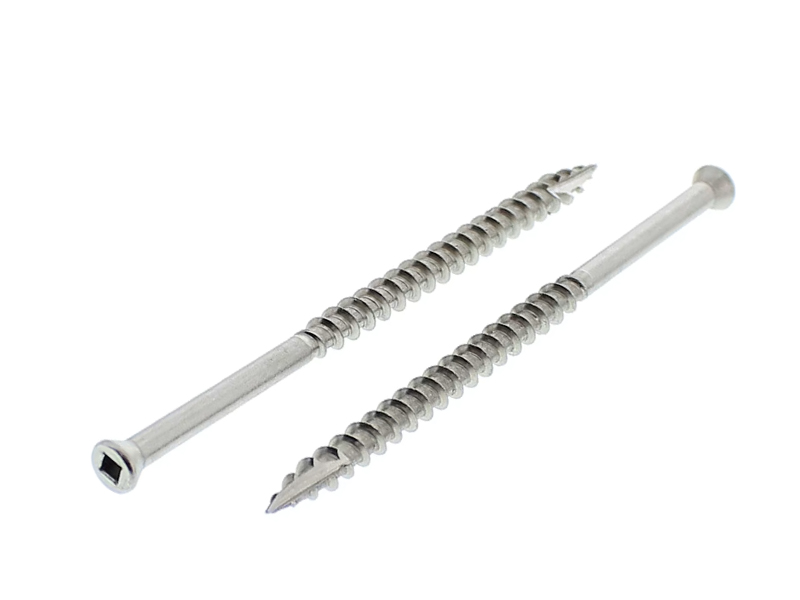

| FB-Trim | Face-fixing hardwood/engineered floors | Ultra-small trim head, self-countersinking | #8 x 1-1/2", #8 x 2" |
| FB-Blind | Tongue-and-groove blind nailing | Angled self-driving point, fine thread | #7 x 1-1/4", #7 x 1-1/2" |

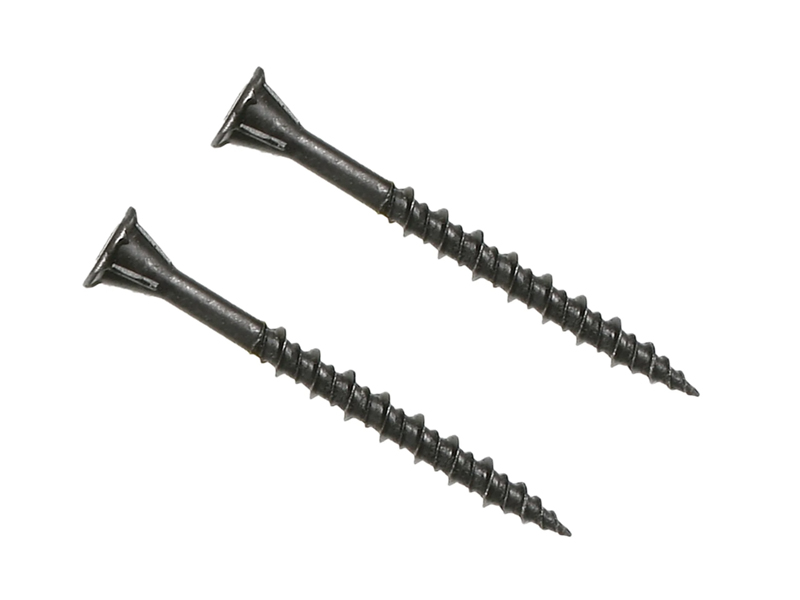

| FB-Sub | Securing subfloor to joists | High-low thread design, washer head | #10 x 2-1/2", #10 x 3" |
Coating Options:
Zinc: Standard interior use.
Ceramic-Coated (Satin/Black): Superior corrosion resistance, popular for visible installations.
Stainless Steel: For high-moisture areas or corrosive environments.
Benefits of Installation and Best Practices
Why Professionals Pick Sinsun:
-
No More Callbacks:
Better holding power stops the squeaks and gaps that lead to service calls.
-
Faster Installation:
The self-drilling design and optimized drive geometry (SQ or Torx) make driving faster and cause less wear on the driver bit.
-
Cleaner Finish:
Precision heads set cleanly without damaging the wood.
Recommended Installation Protocol:
Board Preparation:
Acclimate flooring to room conditions.
Fastener Spacing:
For face-fixing, place screws every 8-12 inches along the board, 1-2 inches from ends.
Tool Setting:
Use a drill/driver with adjustable clutch to set head consistently flush or slightly below the surface.
Blind Nailing:
Drive at a 45-50 degree angle through the tongue.
| Fastener Type | Holding Power | Squeak Prevention | Allowance for Wood Movement | Ease of Adjustment/ Repair |
| Sinsun Screws | Excellent | Excellent | Good (when properly spaced) | Fair |

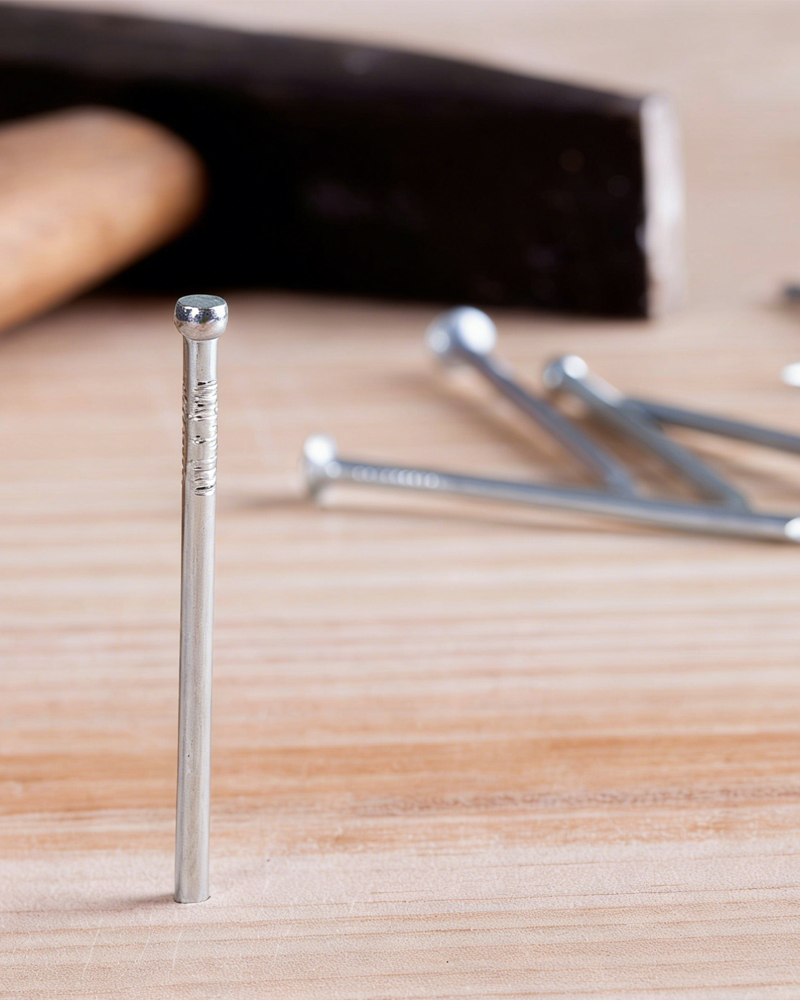

| Cleated Nails | Good | Fair | Good | Poor |

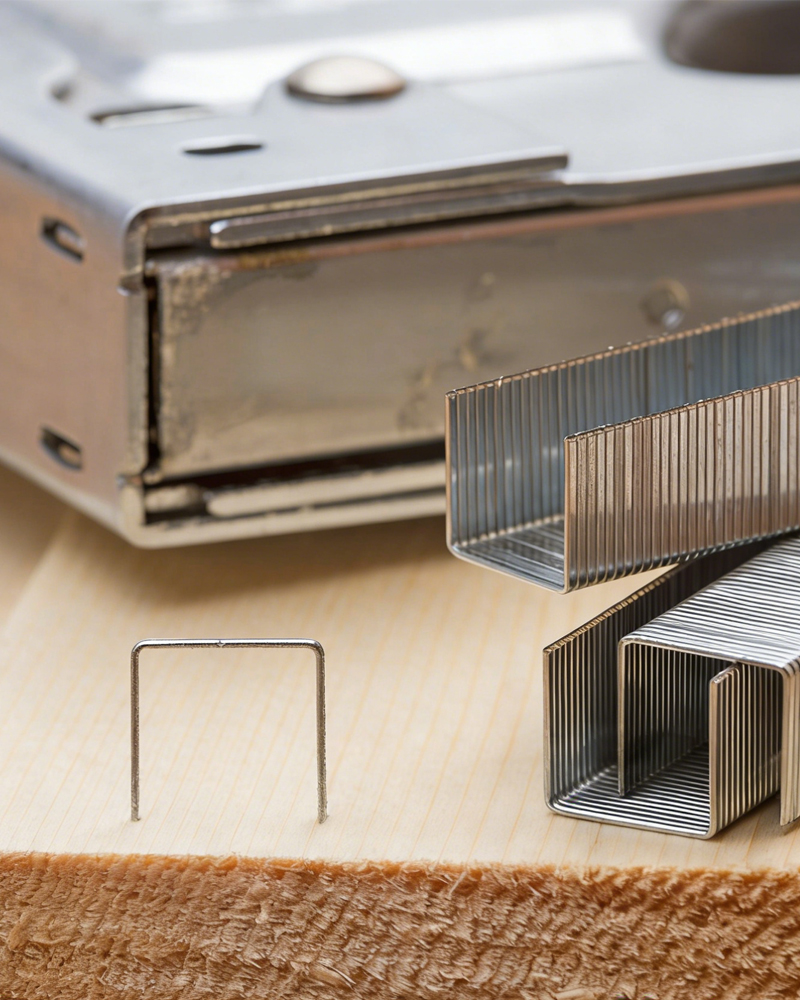

| Standard Staples | Fair | Poor | Fair | Poor |
Customer Testimonials & Use Cases
“"Solves Old Subfloor Issues" "On renovation projects, existing subfloors are often compromised. Using the FB-Sub series to secure old plywood to joists before installing new underlayment creates a rock-solid base. It's now our standard protocol.”
“"Saved a High-End Renovation from Disaster" "We were securing 5-inch wide character-grade hickory over an existing, slightly uneven subfloor on a luxury home project. The risk of gaps and movement was high. Using the Sinsun FB-Trim screws with their aggressive thread allowed us to mechanically 'pull' and lock each board down tightly to the subfloor. This compensated for minor inconsistencies perfectly. A year later, with the house experiencing its first full seasonal humidity cycle, the floor remains gap-free and silent. This solution turned a potential nightmare into our showcase project.”
Frequently Asked Questions (FAQ)
Q
Can I use these screws for both solid hardwood and engineered floors?
Yes. Our FB-Trim series is ideal for both. The key is selecting the correct length to secure the board to the subfloor without penetrating moisture barriers or underfloor systems below.
Q
Do I need to pre-drill for face-screwing hardwood?
In most cases, no. Our self-drilling tip is designed for hardwoods. Pre-drilling is only necessary when working with extremely dense exotic woods or when driving very close to the board's end.
Q
What is the advantage of a trim head over a standard flat head?
A trim head has a significantly smaller diameter, requiring a smaller plug or filler to conceal. It minimizes wood damage and visibility, providing a cleaner finished appearance.
Q
How many screws will I need per square foot/board?
For face-fixing, plan for 2-3 screws per linear foot of board. A general estimate is 150-200 screws per 100 square feet, depending on board width and pattern.
Q
Do I really need special screws for my floor? Can't I just use deck screws?
Deck screws are designed for outdoor weathering, not for the specific holding power and head design needed to prevent floor movement and surface damage. Using the wrong screw is a leading cause of squeaks and gaps.
Q
What's the main advantage of a trim head screw for face-fixing?
The smaller head diameter minimizes wood damage and visibility. It requires a much smaller filler dot, resulting in a cleaner, more professional finish that's easier to hide, especially on hardwoods.
Q
What length screw should I use for my floor?
A reliable rule: the screw should penetrate 1 inch (25mm) into the structural subfloor or joist beneath your flooring underlayment. For example: 3/4" solid oak floor + 1/2" plywood underlayment = 1-1/4" total. You'd need a screw that penetrates 1" beyond that, so a 2-1/4" screw is ideal. Always avoid piercing moisture/vapor barriers underneath.
Q
Will these screws rust or stain my wood floor over time?
No, when you use the correct coating. For interior floors, our standard zinc coating is sufficient. For areas with potential moisture (concrete subfloors, basements) or for visible screws on exotic woods that may react, we strongly recommend our ceramic-coated or stainless steel options, which are inert and prevent any corrosion staining.
Get the Right Fastener for Your Project
01
Download Our Flooring Fastener Guide:
Get detailed specifications, load tables, and installation diagrams.
Download NowSinsun Floorboard Screws: The final, unseen detail that ensures a flawless, lasting floor.
