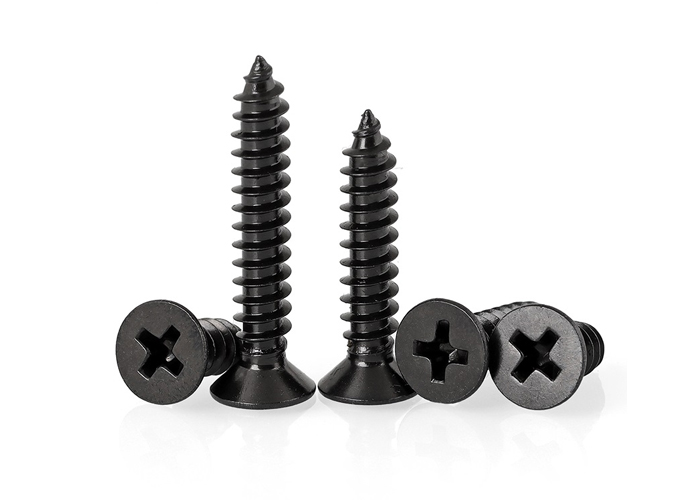

black/ Zinc Countersunk Self Tapping Screws for metal
Create a perfectly smooth, flush surface every time.
Skip pre-drilling in sheet metal, wood, and plastic.
Strong hold, hidden head, for a professional look.
01
Countersunk Self Tapping Screws | Flush Finish | Sinsun Factory Direct
Achieve a smooth, flush surface with Sinsun countersunk self-tapping screws. No pre-drilling needed for metal & wood. Corrosion-resistant. Request samples & bulk pricing.
Get a Quick Qoute

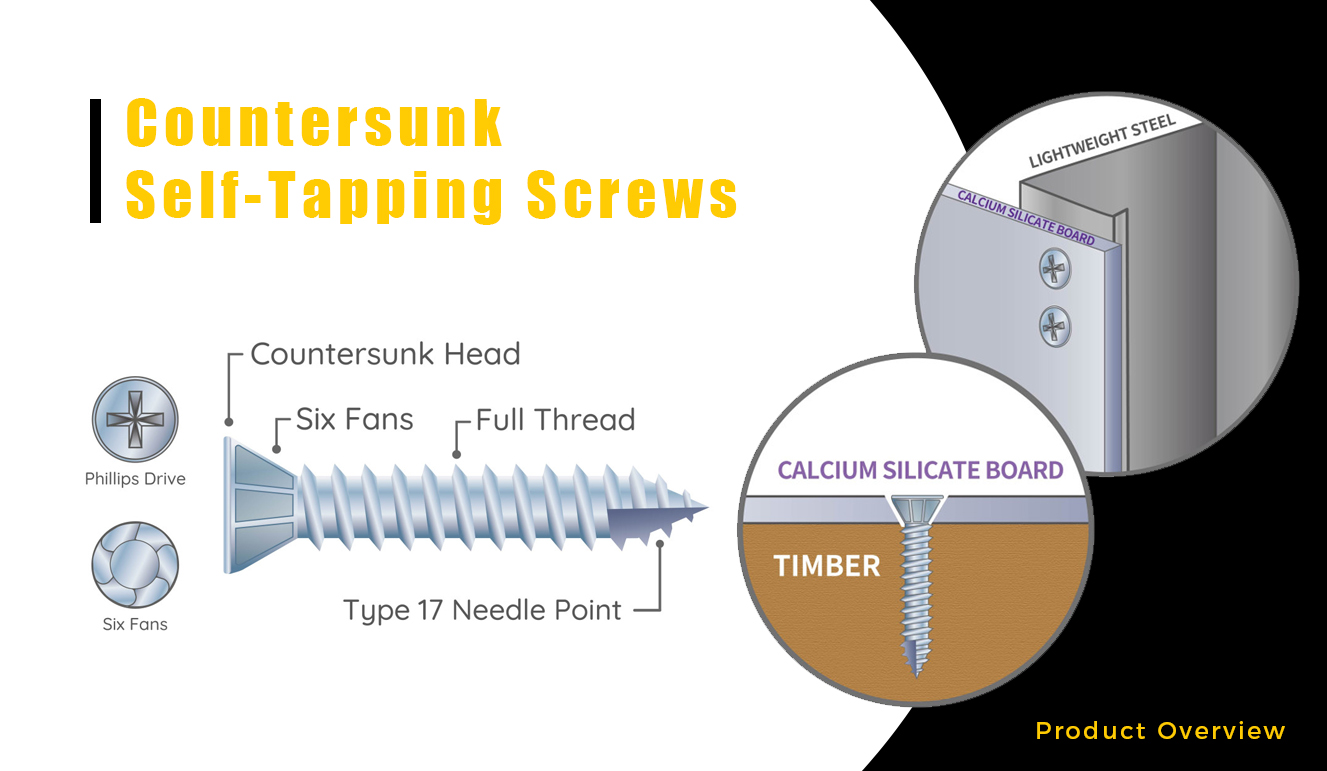

Sinsun Countersunk Self-Tapping Screws are designed for jobs where a strong mechanical bond is as crucial as a smooth, unobtrusive finish.
The conical head of these screws sits flush with or below the surface of the material.This design makes them safe, aesthetically pleasing, and functional.
They offer the clean look of a countersunk design and the efficiency of self-tapping threads. They are perfect for making metal parts, automotive trim, machinery panels, woodworking, and any other application where a smooth surface is required.
Get a Quick Qoute
-
Flush, Professional Finish
The 82° or 90° countersunk head sinks all the way into the material, resulting in a smooth surface that is safe to touch, looks better, and allows parts or materials to move freely over the surface.
-
No Pre-Tapping Required
Self-tapping thread cuts through metal, plastic, and soft metals without pre-tapping. This means that a separate tapping operation is not needed, which saves a significant amount of time during assembly.
-
Vibration and Grip
The thread design provides a tight, precise fit that won't loosen even when vibrated.The fact that these screws are not tapped makes them more reliable than standard machine screws.
-
Long-lasting and Resistant to Rust
These screws are made of hardened carbon steel and have high-quality zinc or electroplated coatings. They are very strong and will not rust, making them last a long time in both indoor and protected outdoor areas.
-
Factory Quality
Each batch of our products is manufactured to the same angle, thread length, and point sharpness, which is why they always perform the same.
| Specification | Details / Options |
| Material | Case-Hardened Carbon Steel |

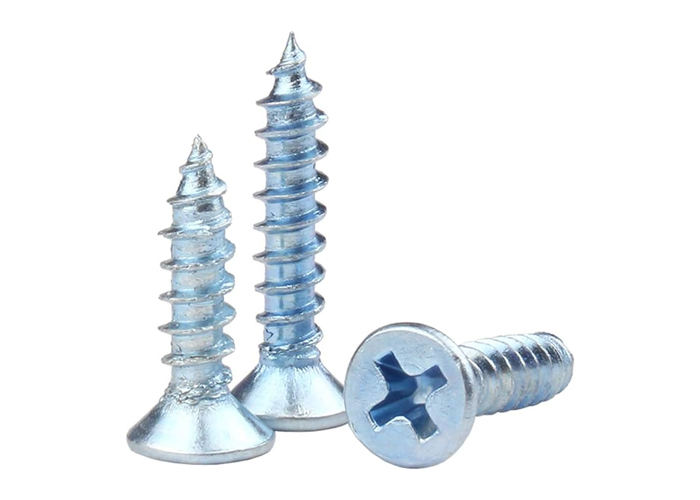

| Finish/Coating | Zinc Plated (White/Blue/Yellow), Electro-Galvanized |
| Head Style | Countersunk (Flat Head), 82° or 90° Head Angle |
| Drive Type | Phillips (PH2), Pozidriv (PZ2), or Slotted |
| Point Type | Sharp Self-Tapping Point |
| Thread Type | Standard Self-Tapping Thread |
| Shank Diameter | M3, M4, M5, #6, #8, #10 |
| Length | 6mm to 50mm (Custom lengths available) |
| Standards | Compliant with common industrial dimensional standards |
| Packaging | Bulk boxes (by weight or piece count), reels, or custom packaging |
Application-Specific Countersunk Self Tapping Screws
Our countersunk self-tapping screws are precision-engineered for optimal performance in distinct materials. The thread form, point design, and hardening treatment are critically tailored to the substrate's properties to ensure superior fastening integrity, pull-out resistance, and a flush finish.

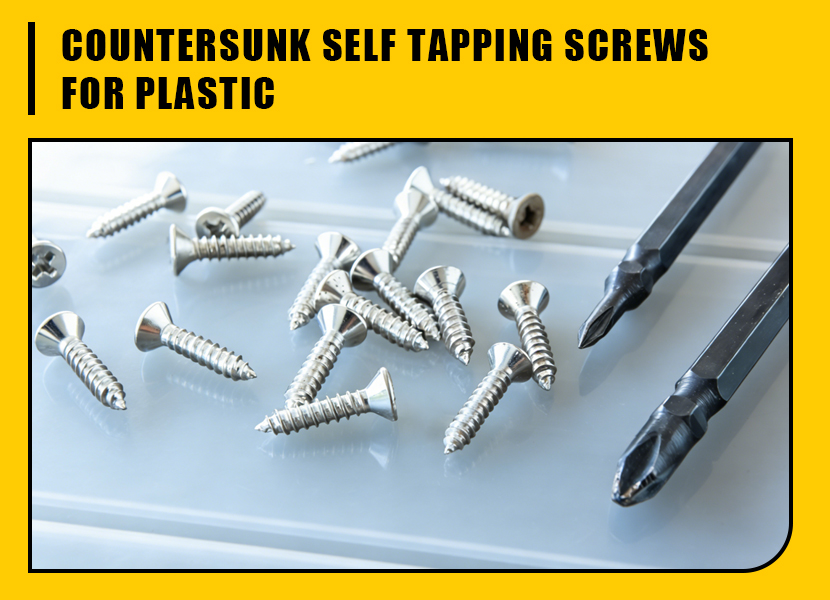

countersunk self tapping screws for plastic
This material is commonly used in consumer electronics, automotive trim (interior), and appliance housings to hold 3–6 mm thick thermoplastic enclosures in place. The shape reduces radial stress to prevent the plastic from cracking or the boss from failing while driving. The driving torque required to install a #8 screw in ABS or polycarbonate is usually 25–35% lower than for a standard metal thread. This material is commonly used in consumer electronics, automotive trim (interior), and appliance housings to hold 3–6 mm thick thermoplastic enclosures in place.In soft, flexible materials, the design prioritizes a high strip-to-drive torque ratio.
Get a Quick Qoute

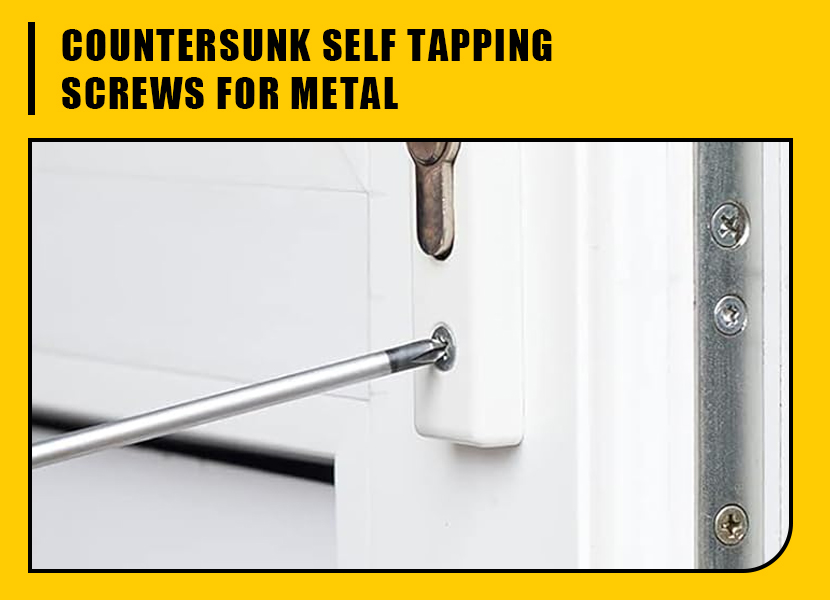

countersunk self tapping screws for metal
The screws are designed to attach metal that is light weight to medium-duty.They feature fine or standard pitch threads and a sharp, aggressive cutting point, which is typically a standard tapping point. You do not need to drill holes in aluminum, galvanized steel, or pre-painted panels that are up to 2.5mm thick to use them. The hardened steel (usually Rockwell C 45-50) ensures that the point can go through and create threads without bending. Generally, they're used to build electrical cabinets, assemble HVAC ducts, or frame light structures. They have an ush-mounted connection that is resistant to vibrations, with shear strengths that are compatible with base materials up to 90–120 MPa.
Get a Quick Qoute

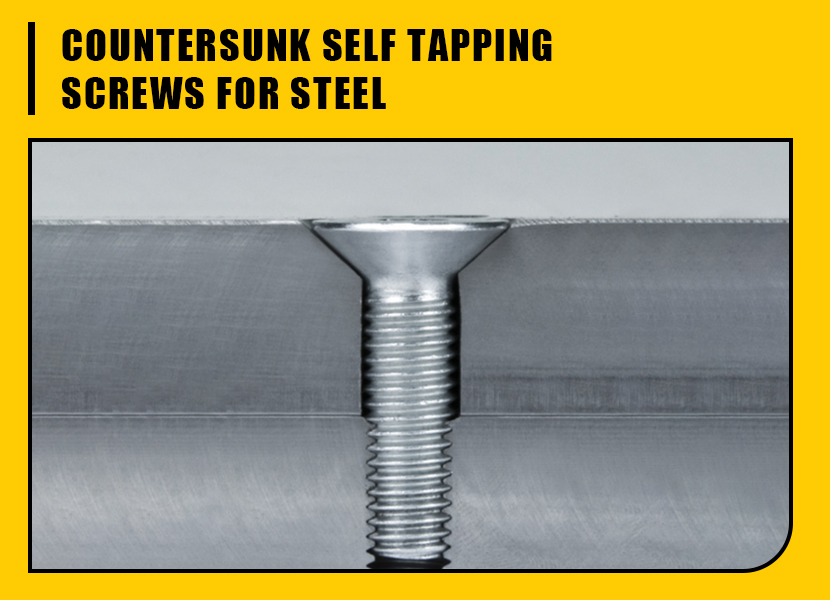

countersunk self tapping screws for steel
There is also a self-drilling tip with a strong self-threading shank, which is threaded and has a spaced, deep-cutting thread (for example, a #2, #3, or #4 point designation). Without pilot holes, the tip can drill through up to 6mm (1/4") of mild steel (with a tensile strength of up to 550 MPa). The hardened tip (up to Rockwell C 58) and strong thread form are designed to withstand a lot of pressure and not come loose from vibration. Some of the most important uses are attaching steel purlins (2–3 mm) to main frames, attaching metal roofing or wall cladding to structural members, and assembling industrial machinery. In critical connections, they can handle loads of more than 10,000 N (for a 5.5mm diameter screw).
Get a Quick Qoute-
1
Q: What gauge metal can countersunk self tapping metal screws penetrate without a pilot hole?
A: Standard countersunk self tapping metal screws (e.g., with a #2 point) are designed to penetrate and tap threads in light to medium-gauge sheet metal up to approximately 3mm (0.118 inches or roughly 12-gauge) in total combined thickness. For optimal performance and to prevent point breakage, always match the screw's drill point specification to your material's thickness.
-
2
Q: What is the main advantage of a countersunk head on a self-tapping screw?
A: The primary advantage is that it provides a flush or sub-flush finish. When properly installed, the conical head seats completely into the material, eliminating any protrusion. This creates a smooth surface for safety (no snagging), allows for unimpeded movement of adjacent parts, and delivers a clean, professional aesthetic.
-
3
Q: Is a "countersunk head tapping screw" the same as a standard machine screw?
A: No, they are not the same. A standard machine screw requires a pre-tapped hole (internal threads) to fasten into. A countersunk head tapping screw is designed to create its own internal threads as it is driven into a pre-drilled or through-hole in materials like sheet metal, plastic, or wood, combining the thread-forming action with the benefit of a flush-finishing head.
-
4
Q: Do I need a special countersink bit when using countersunk self tapping screws?
A: Typically, no. A properly designed countersunk self tapping screw has a head angle (usually 82° or 90°) that is intended to cut or form its own countersink recess in softer materials like aluminum or thin steel. For very hard materials or a perfectly clean, finished recess in visible applications, a pre-drilled countersink is recommended.
-
5
Q: What is the recommended pilot hole size for an M3 countersunk self tapping screw in 2mm steel?
A: For an M3 countersunk self tapping screw in 2mm thick steel, a 2.5mm diameter pilot hole is generally recommended. This hole size allows the screw's threads to engage and cut effectively into the material walls without excessive driving torque, while the head can still form a proper seat. Always test on a scrap piece first.
-
6
Q: Can self tapping countersunk metal screws be removed and reused?
A: It is not recommended. Self tapping countersunk metal screws work by displacing and cutting material to form threads. Upon removal, these threads are often damaged or stripped. Reusing the screw will result in significantly reduced holding power and a loose, unreliable connection. They are designed as permanent fasteners.
